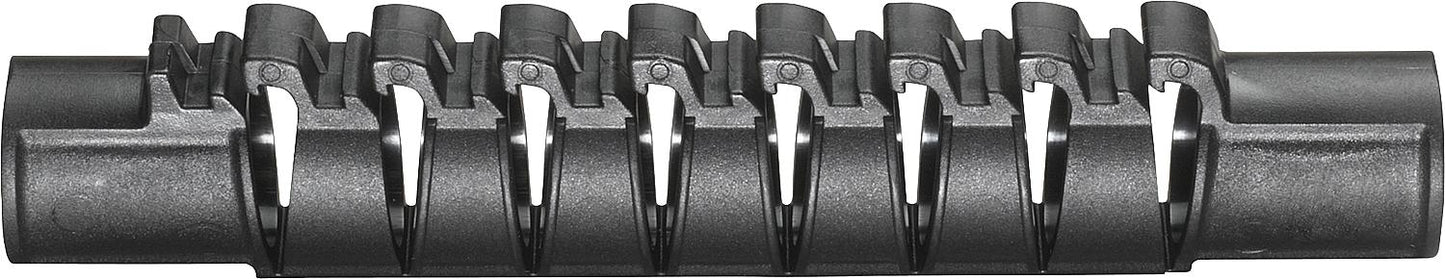

Flipflex grid bend for 18/20 mm pipe

Measure:

Measurement from the subfloor to the bottom edge

Measure the valve block. The pipe

Mark according to the attached table.

Slide over:

Turn the flipflex up to the marked point

Slide the object over the pipe.

Bending:

The flipflex including tube can be operated with one hand movement

bend. They find it particularly easy if you

Grasp both ends of the flipflex!

Tie up:

The screw connection onto the calibrated

Insert the pipe and tighten it on the valve block.

Fix:

The two pipes at flipflex

Connect to the fixing holder.

Nail this to the ground.

Secure:

To ensure the exact axle dimension,

• Attach the double clip to the top.

• Radius: 75 mm
• Inner diameter: 21.2 mm
• For pipe diameter: 20 mm
• Length: 175 mm

Winner of the Innovation Award 2001
