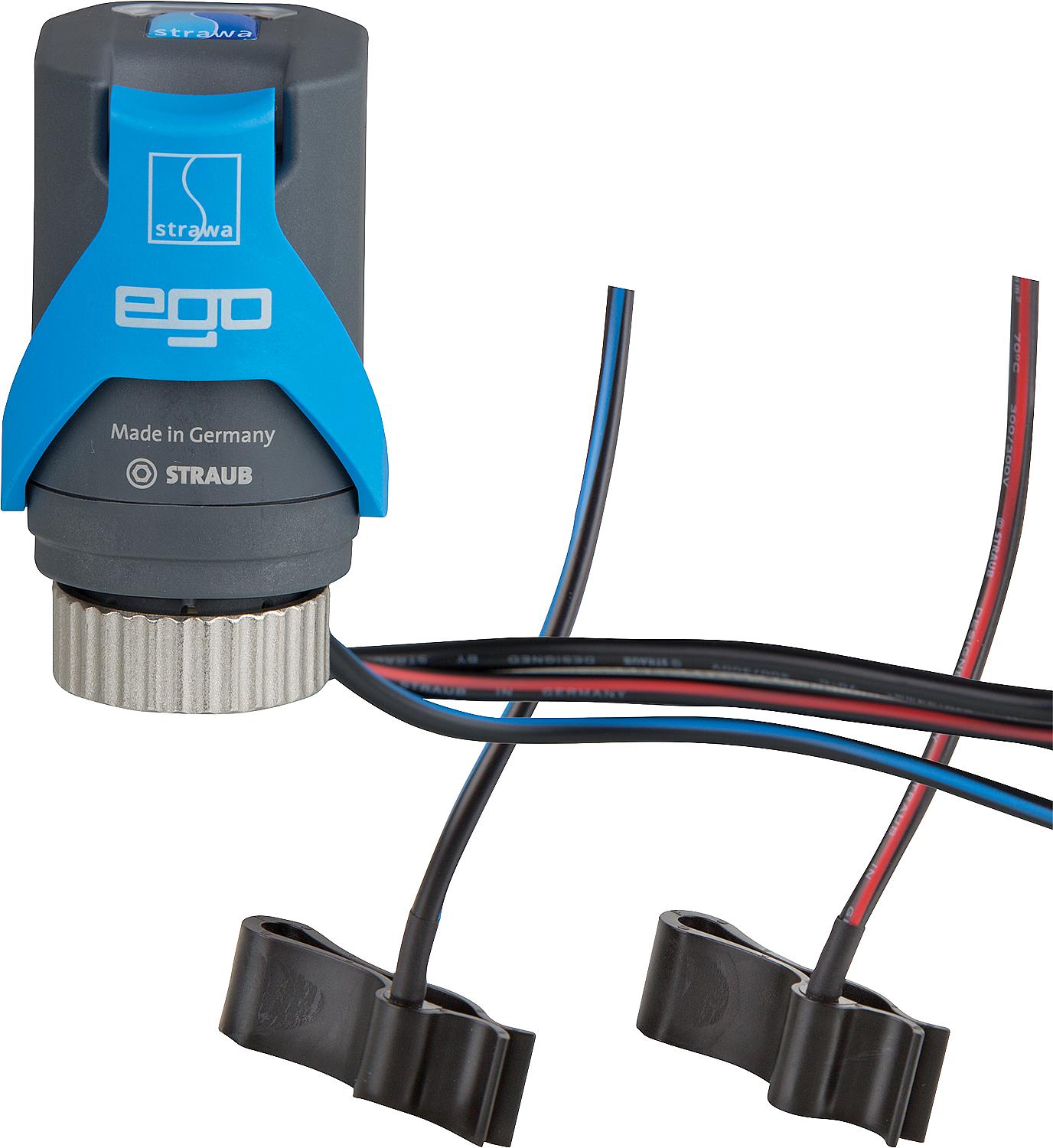

Control drive electrothermal Strawa type EGO-M30 230V M30x1.5

The control drive for perfect hydraulic balancing

• For heating and cooling
• For underfloor heating manifolds with M30 x 1.5 connection thread
• Works fully automatically and intelligently
• Regulates permanently and as needed.
• No settings or setup required
• No additional components such as routers, gateways, central processing units or app control are required.
• Sensors and EGOKI already integrated into the control drive
• EGOKI independently recognizes usage patterns and system environments
• No more complicated calculations for hydraulic balancing
• Regardless of the manufacturer, EVERY distributor is ALWAYS hydraulically balanced.
• Works with standard room temperature controllers
• No replacement of water-carrying parts is necessary.

Function:

• The actuator is mounted on the manifold's valve inserts, and the sensors are clipped onto the flow and return lines of the respective heating circuit. The actuator receives its signal from standard room thermostats. The EGOKI calculates the target temperature difference based on usage patterns and the system environment and is capable of assuming and maintaining any valve position. After being switched back on, the actuator returns to its last position and continues to regulate dynamically from there. An integrated LED indicates the operating status and status messages through changing colors or flashing codes. After a certain number of switching cycles, the valve is briefly fully opened to clear any dirt particles from the flow path.

Technical data:

• Threaded connection M30 x 1.5
• Operating voltage 230 V
• Normally closed (NC)
• Sensor cable for pipe outer diameter 1220 mm
• EGO AI and sensors (already installed in the control drive)
• Folding lever for manual opening
• Installation position is arbitrary in any position
