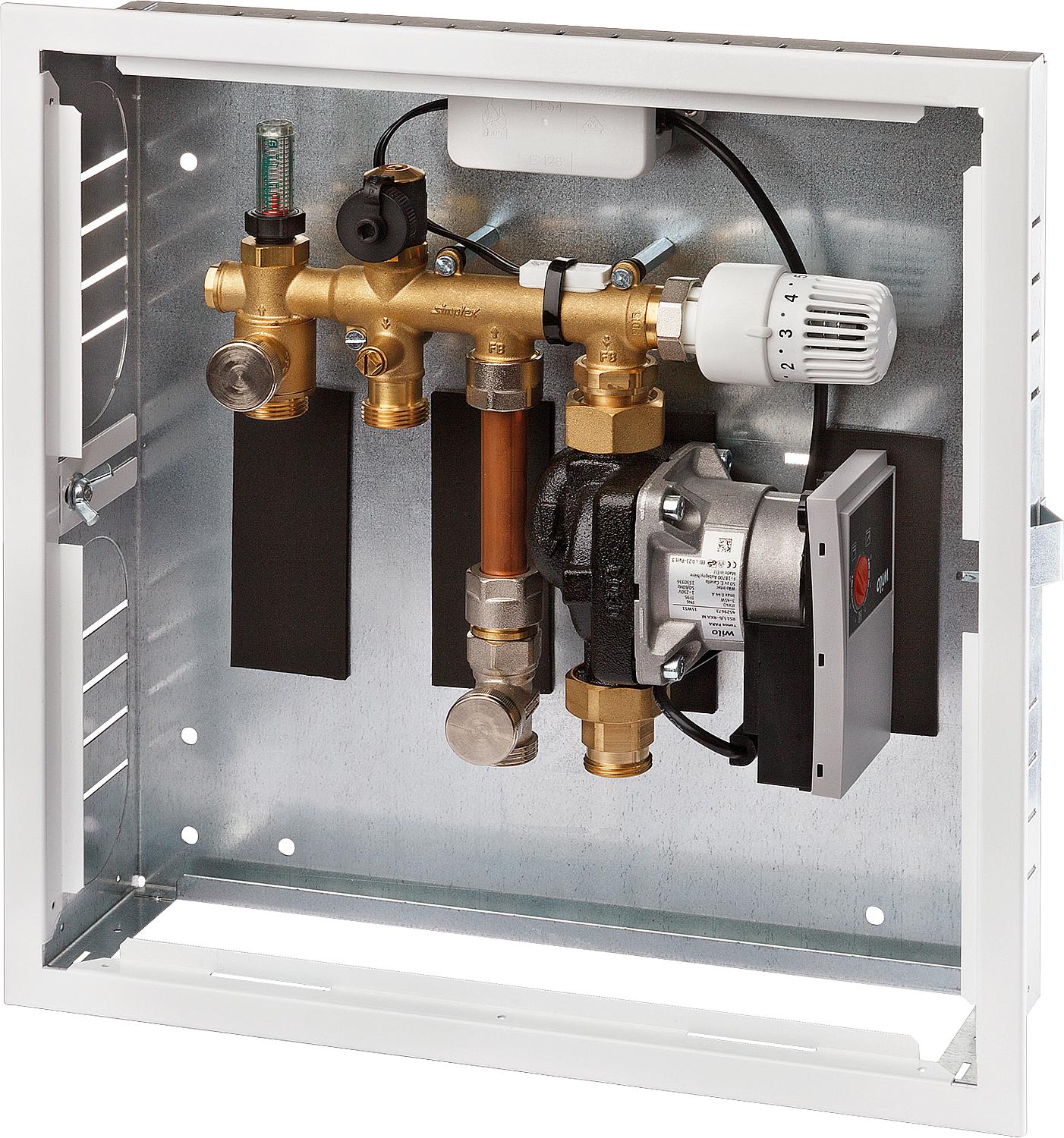

Control box comfort DN20(3/4") Eurocone, flush-mounted metal housing

• Room temperature-dependent individual room control with limitation of the flow temperature
• For retrofitting wall and floor heating systems
• Operation with electric room temperature controller (not included)
• With pre-mixing and circulation pump
• Control head for setting the flow temperature.
• Limiting the flow temperature to 50°C
• Shut-off set with hose connection
• White lacquered metal wall cover with depth adjustment

Technical data:

• Flow temperature setting range: 10-40°C
• Pump operating voltage: 230 V/AC
• Pump: Wilo Yonos Para 15/6
• Maximum operating temperature: 60°C
• Maximum operating pressure: 6 bar
• Adjustable flow meter: 0.8 L/min.
• Connections: DN 20 (3/4") male thread Eurocone
• Material: Brass
• Dimensions (L x W x D): 410 x 410 x 87 mm
• Metal casing
