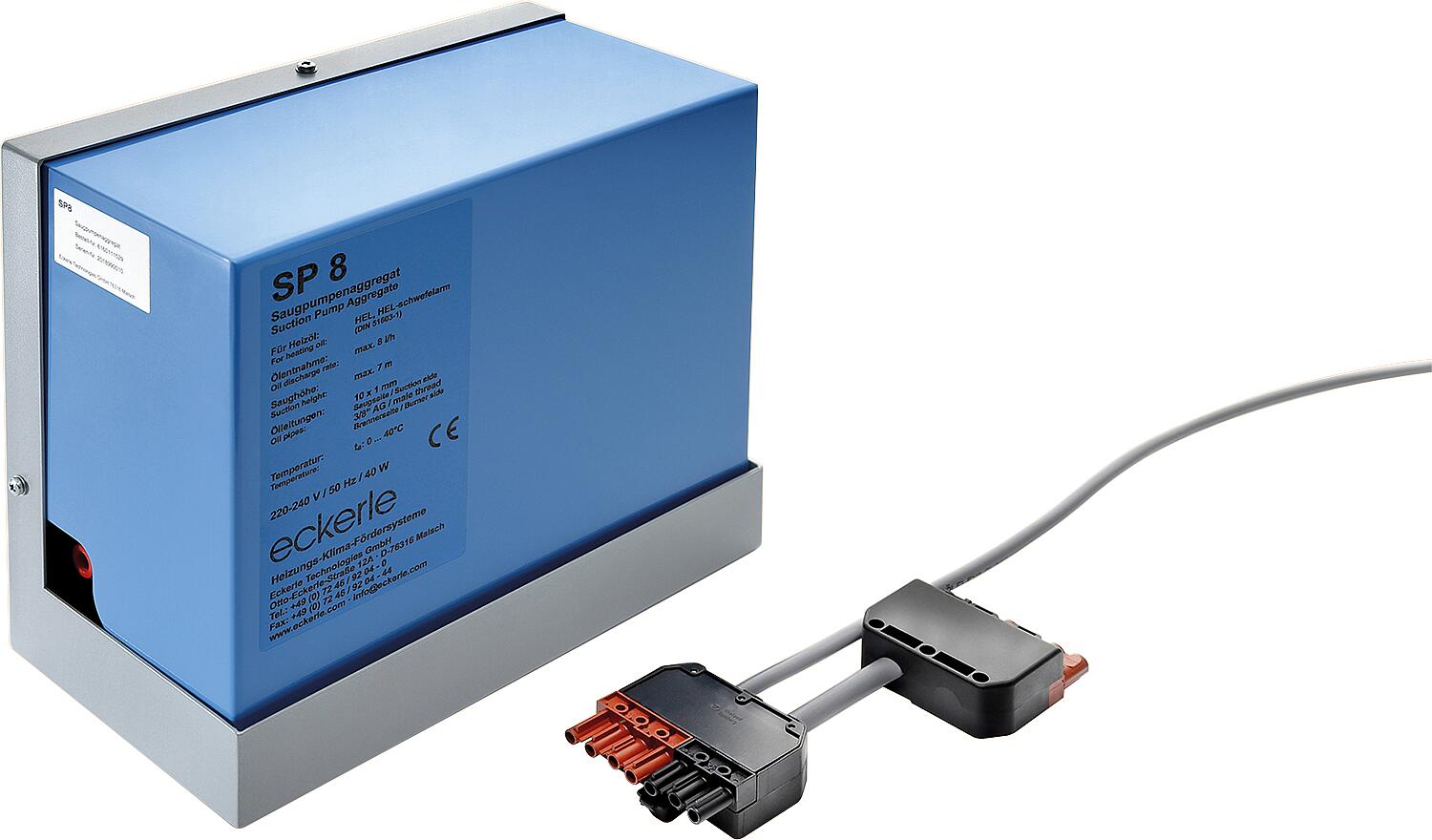

Eckerle SP 8 suction pump unit

Name: Eckerle SP 8 suction pump unit
Brand: eckerle
SKU: 31 002 44
Price: 744.05 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 744.05

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

eckerle

31 002 44

sofort lieferbar

Security policy

Delivery terms

Return policy

A closed-circuit suction pump for oil-fired forced-draft burners
Enables a 100% odorless oil supply
With electromagnetic oscillating piston pump, safety device, suction filter and check valve
Line connections:
Suction side ø 10 x 1 mm
Burner side 2 x DN10 (3/8") AG
Safety tray with automatic shut-off in case of internal leakage
For forced-draft burners up to 80 kW at a suction height of 7 m
Simple electrical connection via pre-assembled 7-pin burner plug adapter.
Single-line operation only
Ideal for individual floor heating systems
230 V/50 Hz
Integrated check valve in the suction line
Maximum suction capacity: 8 l/h at a suction height of 7 m or 16 l/h at a suction height of 4 m
Power consumption: 40 W
Protection class: IP 20
Dimensions (H x W x D): 250 x 250 x 130 mm
