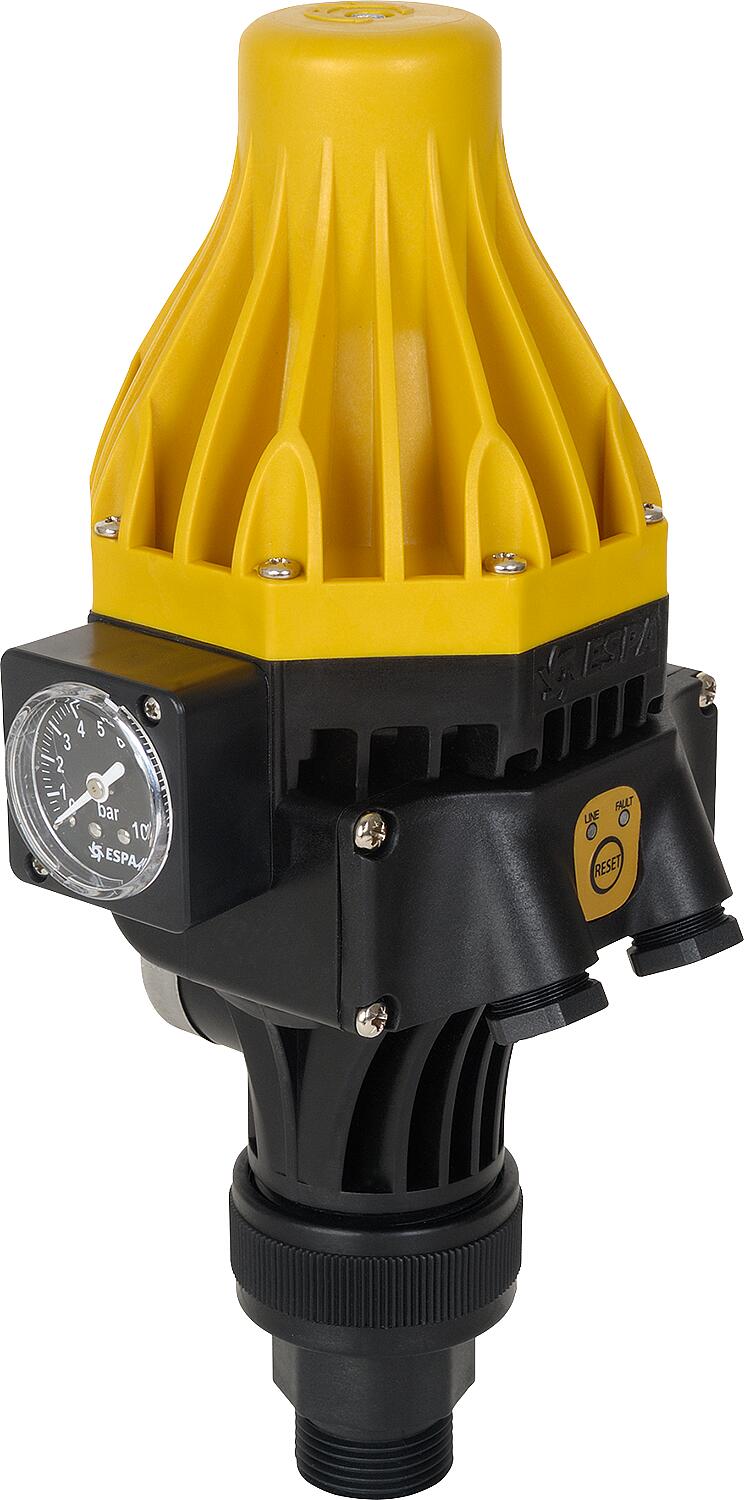

Automatic switch Pressdrive AM 2E 230V 50/60Hz.

• Control unit for garden pumps, domestic water supply systems and well pumps
• Pressure switches turn the pumps on depending on the pressure and off depending on the flow rate after water consumption has ended.
• Voltage 230 volts, 50 Hz
• Medium: Clear freshwater
• With dry-run protection

• Mounted on a pump, automatic start and shut-off depending on water demand
• Pressure gauge 0-10 bar
• Maximum current: 12 A
• Protection rating: IPX5
• Maximum operating pressure: 10 bar
• Cut-in pressure: 1.5-2.5 bar
• Media temperature max.: 40°C
• Connection DN 25 (1"), vertical with male thread, horizontal with female thread
• Automatic reset button
• With 1.5 m connection cable and Schuko plug
• Built-in check valve
