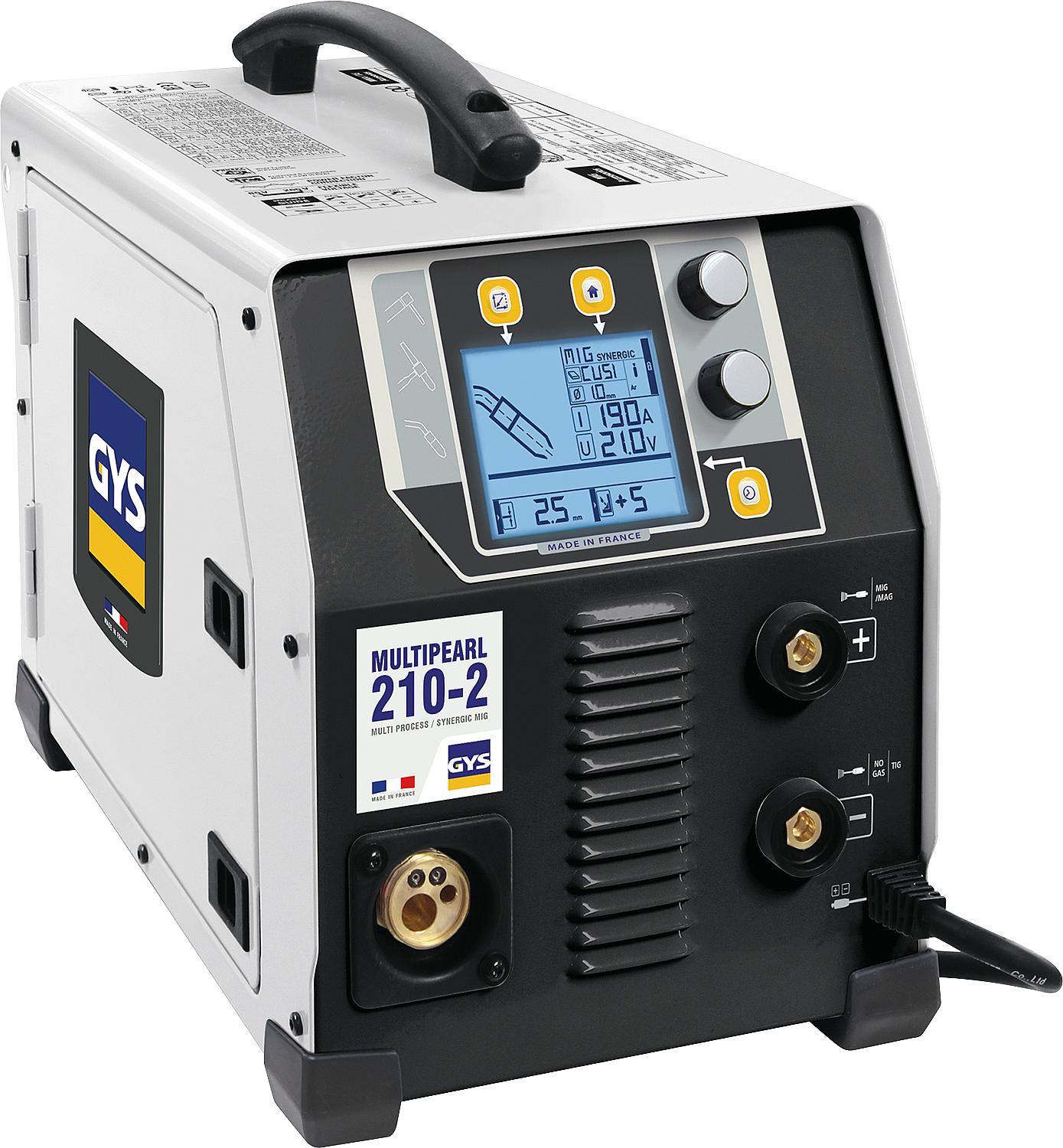

Welding inverter GYS Multi PEARL 210-2

• 3 in 1 multi-process welding machine: MIG/MAG, TIG, MMA electrode welding
• Welding of 0.66 mm sheet metal
• 9 synergy characteristics to facilitate welding in all positions
• Equipped with PFC/FV technology

• MIG/MAG
• For wire coils ø 100 and ø 200 mm
• Setting option: manual or synergy curves
• Synergy Mode: The wire speed and voltage are automatically determined by the selection of wire type and diameter, material thickness, shielding gas, and welding position.
• The SPOT and DELAY functions are available.

SPOT: Spot welding with a set welding time

DELAY: Welding pause (spot welding with adjustable pause between 2 welding points)

• Electrodes
• Suitable for all common rutile, stainless steel, cast iron and basic stick electrodes up to ø 5 mm
• Hot start adjustable (0 to 100%) facilitates ignition depending on the metal.
• Adjustable arc force (0 to 100%): stabilizes the arc by correcting the voltage when the electrode distance to the workpiece changes.
• AntiSticking reduces the risk of the electrode sticking to the workpiece upon contact.

• TIG
• WIGBrnner with EURO central plug (not included in delivery, order no. 80 057 69)
• With WIGLift ignition
• Gas recirculation and current reduction adjustable

Welding processes: MIG/MAG, electrodes, TIG

Cuts: No

• Current (AC): 20200 A
• Welding consumables: Welding wire ø 0.61.0 mm, all common rutile, stainless steel, cast iron and basic stick electrodes up to ø 5 mm

Wire coil ø (mm): 100/200

Wire guide roller: 2 x

Voltage (V): 230

Control panel: Digital

ED at 40°C: 60% at 130A

• Suitable for generators (+/15%) max.: 7.5kW / 9.0 kVA

Protection rating (IP): 21

Dimensions L x W x H (mm): 510 x 320 x 490

Weight (kg): 20

• Scope of delivery:
• MIG/MAG torch (m): 250 A 3
• Electrode holders (m): 2
• Earth terminal with cable (m): 2.5
