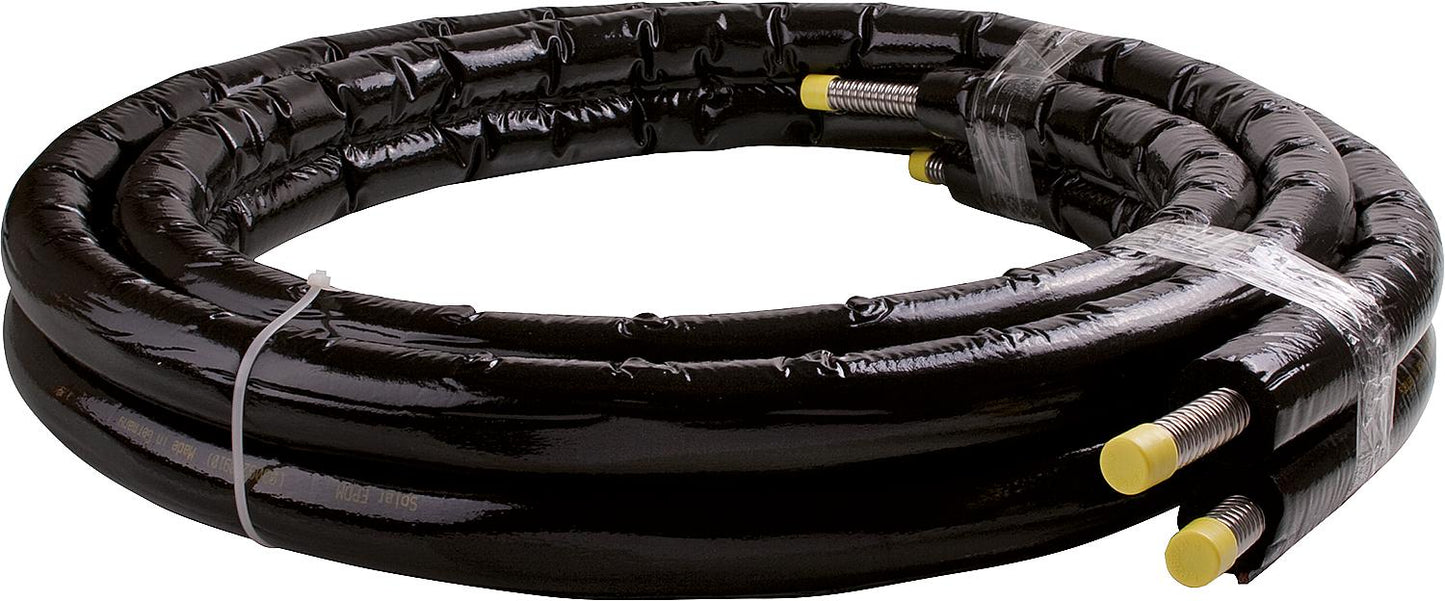

Solar-Flexrohr 2 in 2 DN 25, 50m mit Isolierung und Fühlerkabel

• Pre-insulated, with high-temperature insulating tubing • Protective film against damage in difficult installation situations • The closed-cell structure of the insulation protects against moisture penetration. • Suitable for QuickFix-Pro - metal-to-metal sealing screw connections Technical data: • Material of corrugated pipe: Stainless steel 1.4404 (AISI316I) • Operating pressure (bar), at 20°C: DN12 : 21 • DN16 : 16 DN20 and DN25: 10 • Insulation material: synthetic rubber • Insulation thickness (mm): 13 • Operating temperature (°C): up to 150 • Thermal conductivity of insulation: 0.038 W/m Stainless steel corrugated pipe: • Material AISI316L, DIN 1.4404 • Nominal pressure PN at 20°C (bar): DN12 (21), DN16 (16), DN20 and DN25 (10) High-temperature insulation: • UV-resistant • Made of synthetic rubber • Operating temperature: max. +150°C (+175°C for short periods) • Insulation thickness: 13 mm • Thermal conductivity: 0.038 W/mK • Fire behavior: normally flammable (DIN 4102-B2) • Sensor cable: 2x 0.50 mm², silicone insulated, continuously temperature resistant up to +180°C including sensor cable All 50m rings will be delivered by freight carrier!

Unit price	CHF/unit price
Packaging unit	Ring of 5 m
