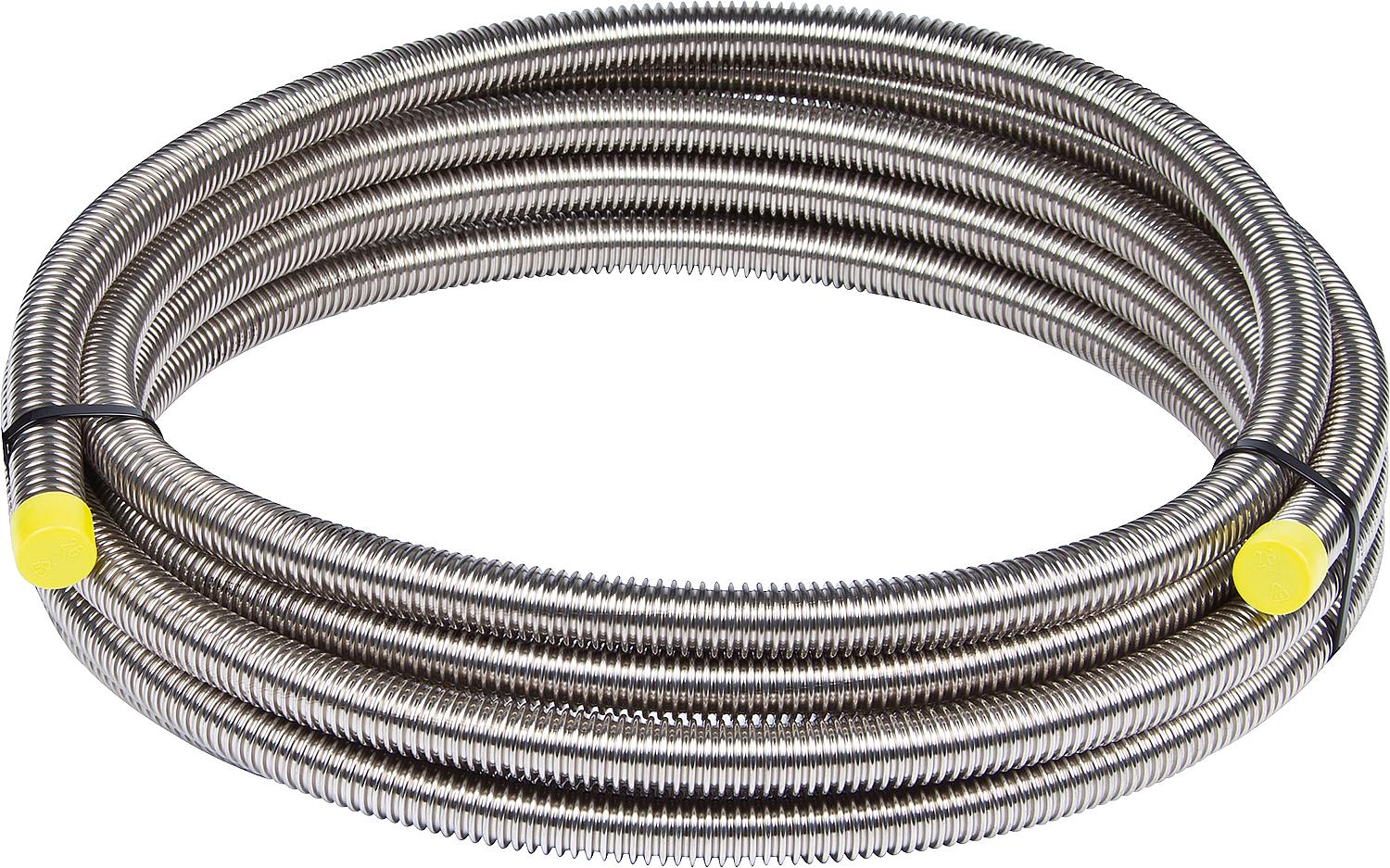

The proven flexible pipe system for innovative building technology.
• Stainless steel
• Material AISI316L, DIN 1.4404
• Nominal pressure PN at 20°C (bar): DN12 (21), DN16 (16), DN20 and DN25 (10)
Installation: Stainless steel flexible duct is unrolled on site. It can easily be bent and adjusted to shape. The minimum bending radius must be observed. No twisting should be applied. Cutting: The flexible duct should not be cut too short. You need at least one corrugation to create the sealing surfaces. It is best to use a pipe cutter, which you place in the trough of the corrugation. Cut at a right angle with light pressure, turning the cutting wheel slowly.
Suitable for QuickFix-Pro - metal sealing screw connections.
Technical specifications: DN12 DN16 DN20 DN25 DN32
Nominal pressure PN at 20°C (bar) 21 16 10 10 4
Minimum static bending radius (mm): 20 25 30 35 40
Inner diameter (mm) 11.85 16.5 21 25.3 32.4
Outer diameter (mm) 15.85 21.35 26.6 31.7 39.9
Tolerance (mm) 0.2 0.2 0.2 0.3 0.3
Weight (g/m²) 86 145 195 255 335
Heat transfer fluid volume approx. (ml/m) 145 265 360 550 1100
Corresponding smooth tube 12 x 1 15 x 1 18 x 1 22 x 1 28 x 1
Union nut DN15 (½”) DN20 (¾”) DN25 (1”) DN32 (1¼”) DN40 (1½”)
Counter screw part IG G
parallel thread according to ISO 228/1 – DN15 (½”) DN20 (¾”) DN25 (1”) DN32 (1¼”)
Counterscrew part AG R
Conical thread according to ISO 7/1 DN15 (½”) DN15 (½”) DN20 (¾”) DN25 (1”) DN32 (1¼”)
| Unit price | CHF/unit price |
|---|---|
| Size | DN 12 |
| Packaging unit | Ring of 10 m |
