• Good flow properties due to the spiral shape
• Reduction of air pockets and dirt deposits
• Suitable for high flow rates
• Facilitates flushing and venting when filling systems
• With graphite seals
Technical data:
• Material of spiral tube: Stainless steel 1.4404 (AISI316I)
• Maximum operating pressure (bar): 16
• Insulation material: synthetic rubber
• Operating temperature (°C): up to 150
• Thermal conductivity of insulation: 0.038 W/mK

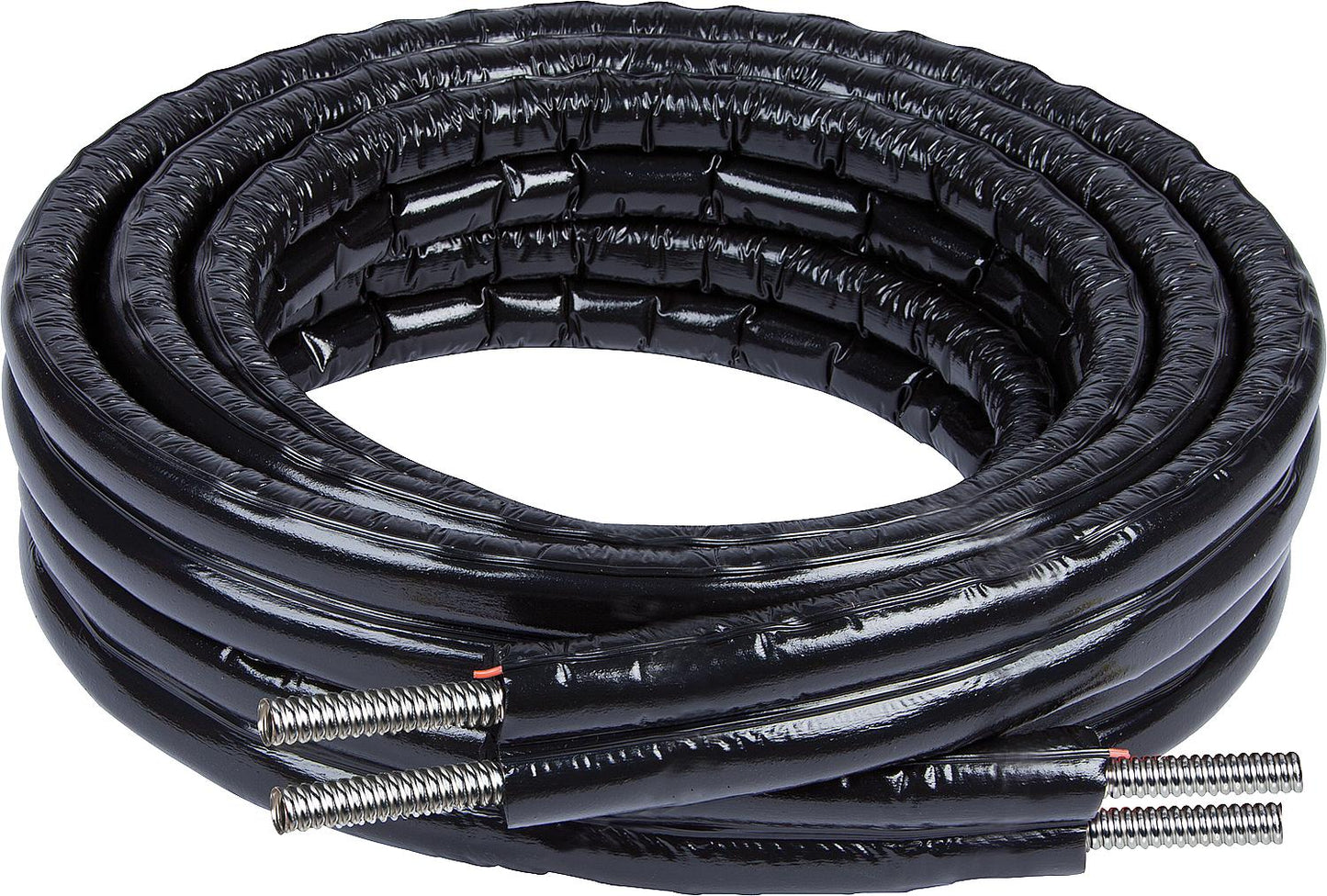

Stainless steel spiral tube:
• Material AISI316L, DIN 1.4404
• Maximum operating pressure: 16 bar
High-temperature insulation:
• UV-resistant
• Made from synthetic rubber, CFC-free
• Operating temperature: max. +150°C (+175°C for short periods)
• Insulation thickness: 14 mm
• Thermal conductivity: 0.038 W/mK
• Fire behavior: normally flammable (DIN 4102-B2)
• Screws not included, please order separately
| Unit price | CHF/unit price |
|---|---|
| Packaging unit | Ring of 5 m |
