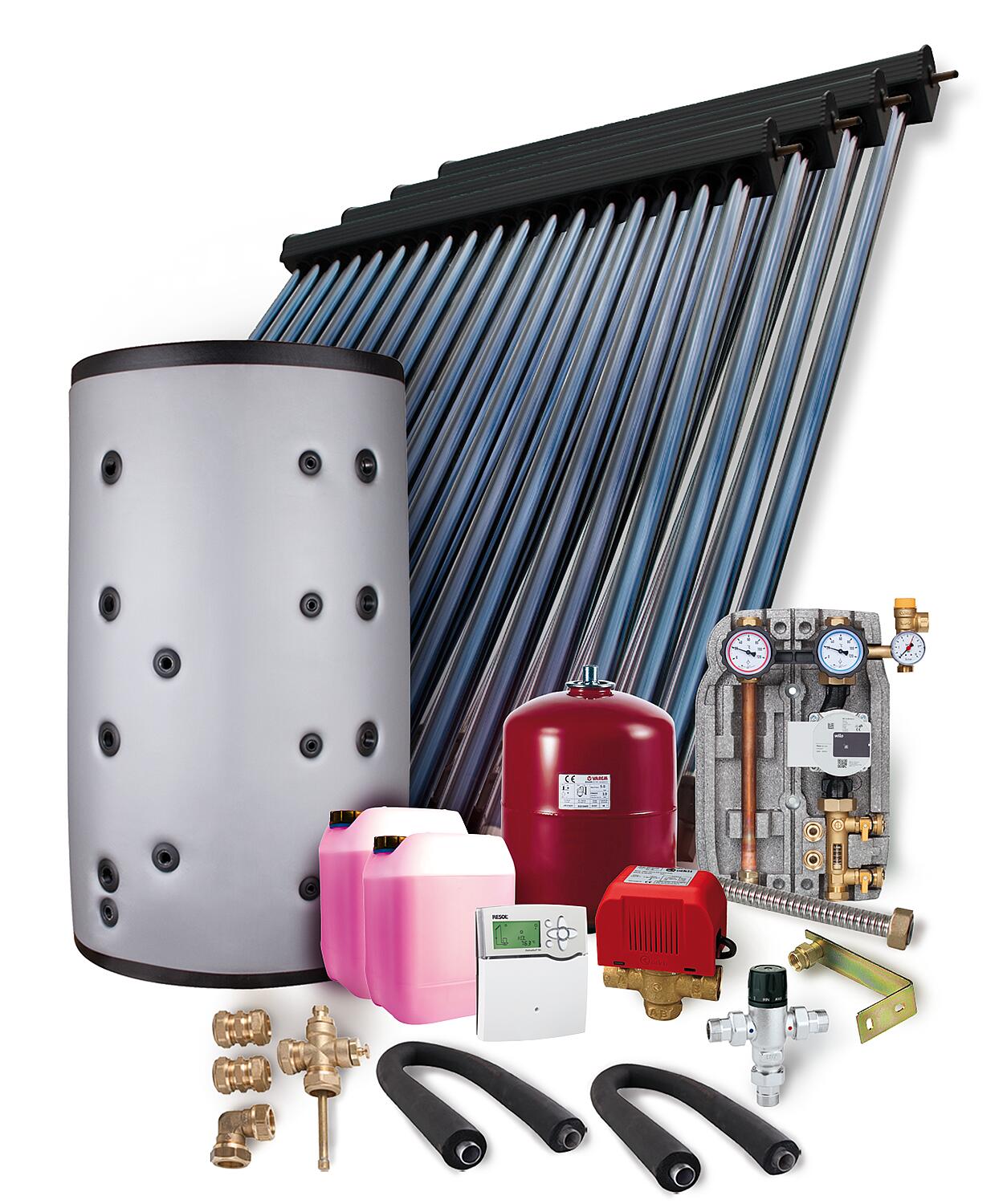

• HP type tube collector
• Pump station fully assembled with:
- 1 x pump, Wilo Para ST 25/6 PWM
- 1 x flow meter 2 to 12 l/min.
- 1 x temperature display in the flow and return lines
- 1 x ball valve with gravity brake, adjustable, in the flow and return lines
- 1 x KFE drain valve in the return line
- 1 x pressure gauge 10 bar
- 1 x diaphragm safety valve 6 bar
• 1 x connector set with cross T-piece, elbow, KL screw connection for Cu pipe ø22 mm and 2 x connection hose 1 m for roof entry
• 1 x DeltaSol BX solar controller, including 5 sensors
• 1 x domestic hot water mixer DN20 (¾”), adjustment range 30 to 65°C
• 1 x Three-way diverter valve DN25 (1”) for heating support
• Stainless steel roof mounting kit, suitable for mounting on almost any type of tile, for example the Frankfurt tile
• 1 x three-way diverter valve for solar systems with hygienic storage tank and 2 heat exchangers
• Collector Identification:
Manufacturer: SUNEX SA
Type: HP series (HP 22, HP 30)
Reg. No.: 011-7S2651 R
• For approximately 4 people and a maximum living space of 150 m²
• 4 x tube collector type HP 22 (3.61 m²)
• 1 x 40 l expansion vessel
• 1 x wall bracket and corrugated hose set for expansion vessel (incl. shut-off valve)
• 2 x 20 kg solar fluid (ready-mixed)
Storage 800 l (PCS/MX1W/MX2W)
• Diameter with insulation: 1050 mm
• Diameter without insulation: 790 mm
• Overall height: 1735 mm
• Tipping dimension: 1830 mm
• Energy Efficiency Class: C
The components of the solar packages are based on a basic solar system configuration. Depending on the type of house, location, and number of occupants, they must be reviewed by a professional and supplemented or adjusted as necessary.
| Manufacturer part number | |
|---|---|
| Version | without memory |
| Unit price | CHF/set |
