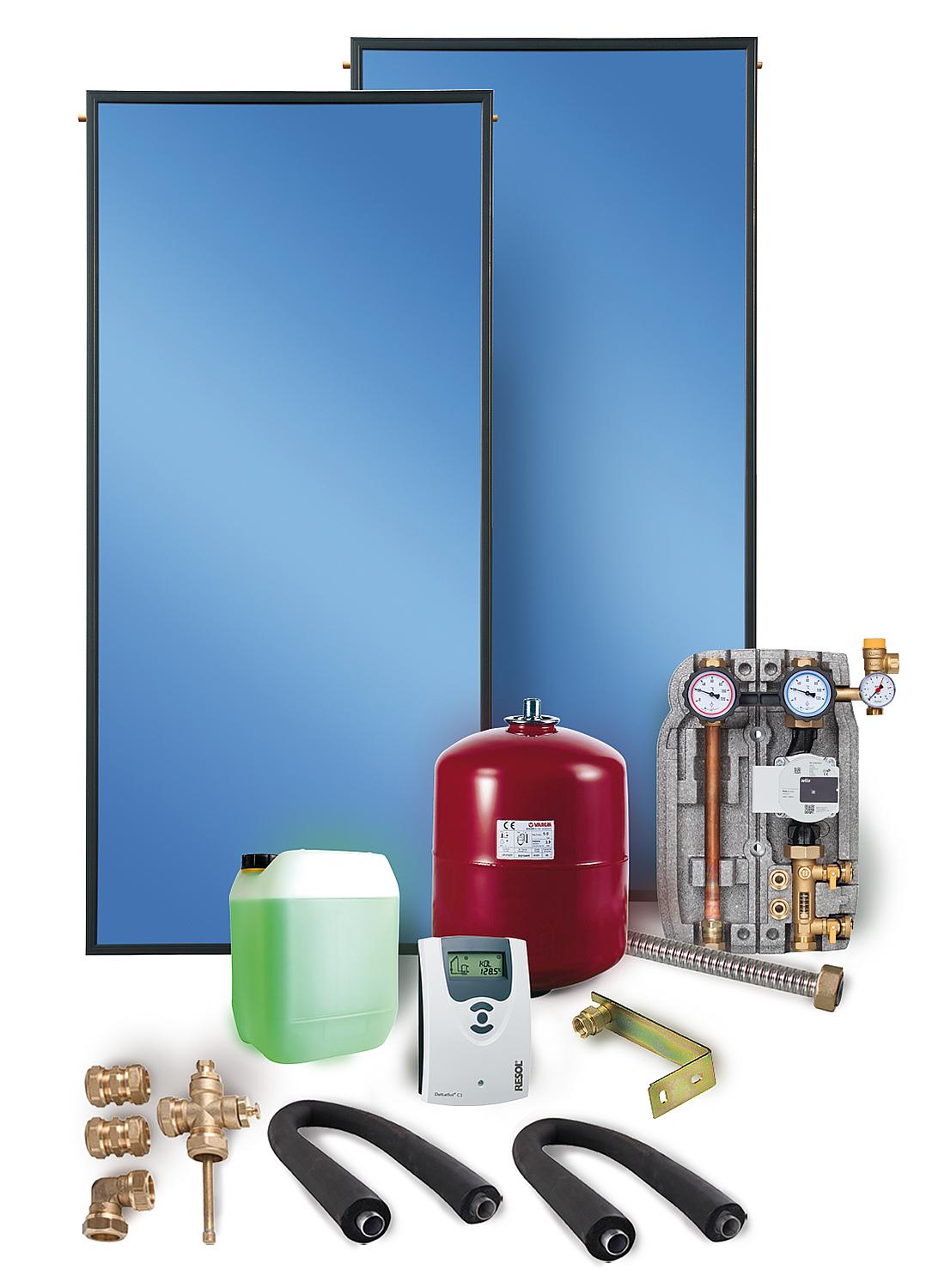

• 2 x flat plate collector type SX 2.0 (2.02 m²), dimensions (LxW): 1902 x 1063 mm
• Pump station fully assembled with:
- 1 x pump, Wilo Para ST 25/6 PWM
- 1 x flow meter 2 to 12 ltr./m
- 1 x temperature display in the flow and return lines
- 1 x ball valve with gravity brake, adjustable, in the flow and return lines
- 1 x KFE drain valve in the return line
- 1 x pressure gauge 10 bar
- 1 x diaphragm safety valve 6 bar
• 1 x connector set with cross T-piece, elbow, KL screw connection for Cu pipe ø22 mm and 2 x 1 m connection hoses for roof entry
• 1 x DeltaSol CS/2 solar controller incl. 2 sensors
• 1 x expansion vessel 18 ltr.
• 1 x 10 kg solar fluid (unmixed)
• 1 x wall bracket and corrugated hose set for expansion vessel (incl. shut-off valve)
• Universal roof mounting set made of stainless steel/aluminum for standard roof tiles up to 38 cm: for example, Frankfurt pan tiles
• Collector Identification:
Manufacturer: SUNEX SA
Type: SX 2.0
Reg. No.: 011-7S140 F
The components of the solar packages are based on a basic solar system configuration. Depending on the type of house, location, and number of occupants, they must be reviewed by a professional and supplemented or adjusted as necessary.
| Manufacturer part number | |
|---|---|
| Unit price | CHF/set |
