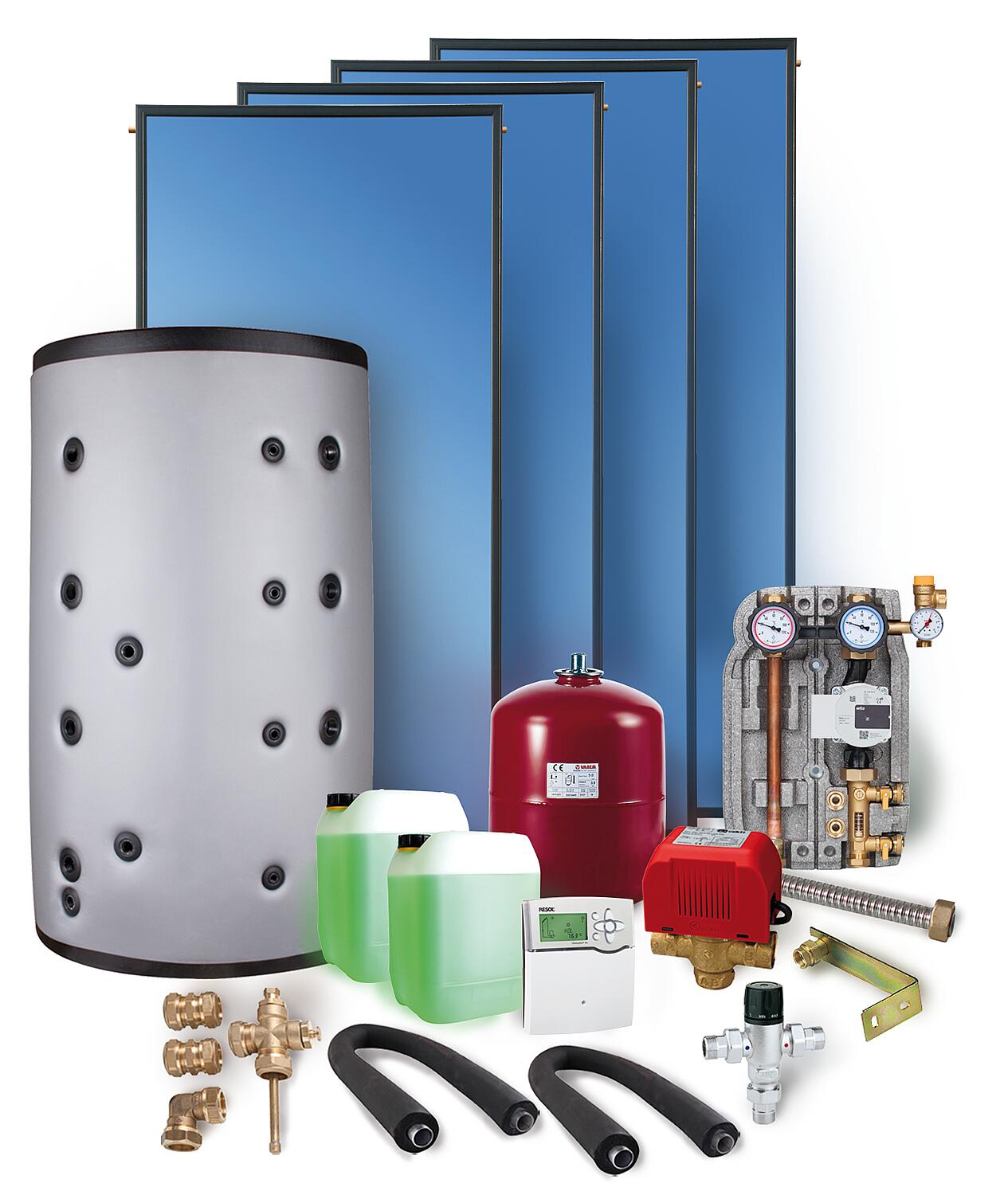

Solarpaket SX 2.51 Aufdachmontage 10,04m² mit Hygienespeicher 800L, 2WT

• Flat plate collector type SX 2.51 (2.51 m²), dimensions (L x W): 2240 x 1120 mm • Pump station fully assembled with: - 1 x pump, Wilo Para ST 25/6 PWM - 1 x flow meter 2 to 12 Ltr./min. - 1 x temperature display in the flow and return lines - 1 x ball valve with gravity brake, adjustable, in the flow and return lines - 1 x KFE drain valve in the return line - 1 x pressure gauge 10 bar - 1 x diaphragm safety valve 6 bar • 1 x connector set with cross T-piece, elbow, KL screw connection for copper pipe ø 22 mm and 2 x 1 m connection hoses for roof entry • 1 x DeltaSol BX solar controller including 5 sensors for solar charging and heating support in conjunction with the three-way diverter valve • 1 x domestic hot water mixer DN 20 (3/4”), adjustment range 30 to 65°C • 1 x three-way switching valve DN 25 (1”) for heating support • 1 x wall bracket and corrugated hose set for expansion vessel (incl. shut-off valve; not included with order no.: 97 031 19) • Universal roof mounting set made of stainless steel/aluminum for standard roof tiles up to 380 mm: for example, Frankfurt tile • 1 x three-way diverter valve for solar systems with hygienic storage tank and 2 heat exchangers • For order no.: 97 031 19 Expansion vessel 50 Ltr. and cap valve • Collector Identification: Manufacturer: SUNEX SA Type: SX 2.51 Reg. No.: 011-7S140 F • For approx. 4 people and max. 130 m² living space • 4 x flat collector type SX 2.51 (2.51 m²) • 1 x expansion vessel 25 l • 2 x 10 kg solar fluid (unmixed) Storage 800 l (PCS/MX1W/MX2W) • Diameter with insulation: 1050 mm • Diameter without insulation: 790 mm • Overall height: 1735 mm • Tipping dimension: 1830 mm • Energy Efficiency Class: C The components of the solar packages are based on a basic solar system configuration. Depending on the type of house, location, and number of occupants, they must be reviewed by a professional and supplemented or adjusted as necessary.

Manufacturer part number
Version	with combination storage tank PCS 800/170
Unit price	CHF/set
