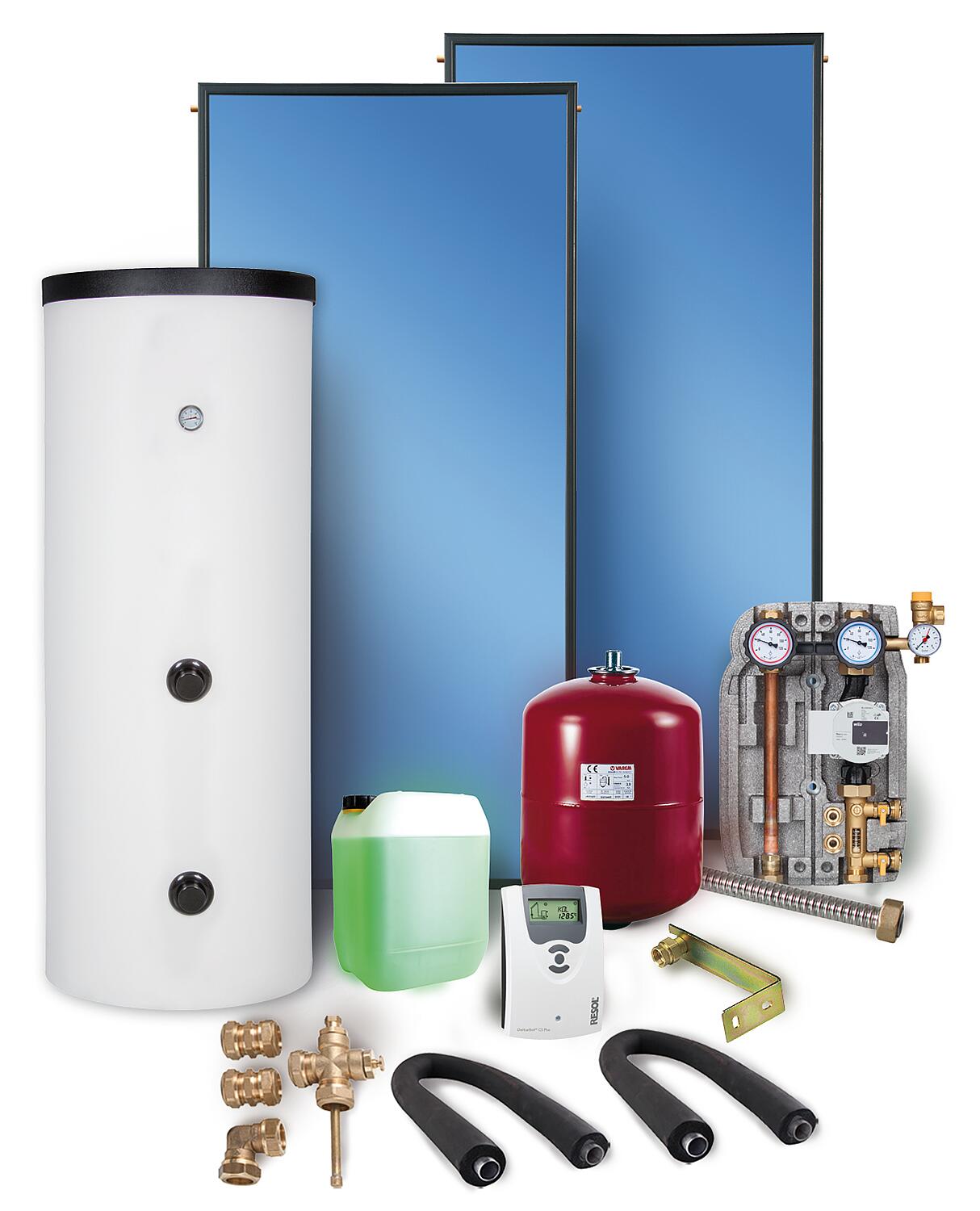

• Flat plate collector type SX 2.51 (2.51 m²), dimensions (LxW): 2240 x 1120 mm
• Pump station fully assembled with:
- 1 x pump, Wilo Para ST 25/6 PWM
- 1 x flow meter 2 to 12 ltr./m
- 1 x temperature display in the flow and return lines
- 1 x ball valve with gravity brake, adjustable, in the flow and return lines
- 1 x KFE drain valve in the return line
- 1 x pressure gauge 10 bar
- 1 x diaphragm safety valve 6 bar
• 1 x connector set with cross T-piece, elbow, KL screw connection for Cu pipe ø22 mm and 2x connection hose 1 m for roof entry
• 1 x DeltaSol CS Plus solar controller incl. 4 sensors
• 1 x wall bracket and corrugated hose set for expansion vessel (incl. shut-off valve)
• Universal roof mounting set made of stainless steel/aluminum for standard roof tiles up to 38 cm: for example, Frankfurt pan tiles
• Collector Identification:
Manufacturer: SUNEX SA
Type: SX 2.51
Reg. No.: 011-7S140 F
• Suitable for approximately 4 to 6 people
• 3 x flat collector type SX 2.51 (2.51 m²)
• 1 x expansion vessel 18 l
• 1 x 10 kg solar fluid (unmixed)
Memory EV-TWS-2W 400 (97 011 93)
• Diameter with permanently foamed insulation: 760 mm
• Overall height: 1631 mm
• Tilting dimension: 1777 mm
• Energy Efficiency Class: A
The components of the solar packages are based on a basic solar system configuration. Depending on the type of house, location, and number of occupants, they must be reviewed by a professional and supplemented or adjusted as necessary.
| Manufacturer part number | |
|---|---|
| Version | with EV-TWS-2W 400 storage |
| Unit price | CHF/set |
