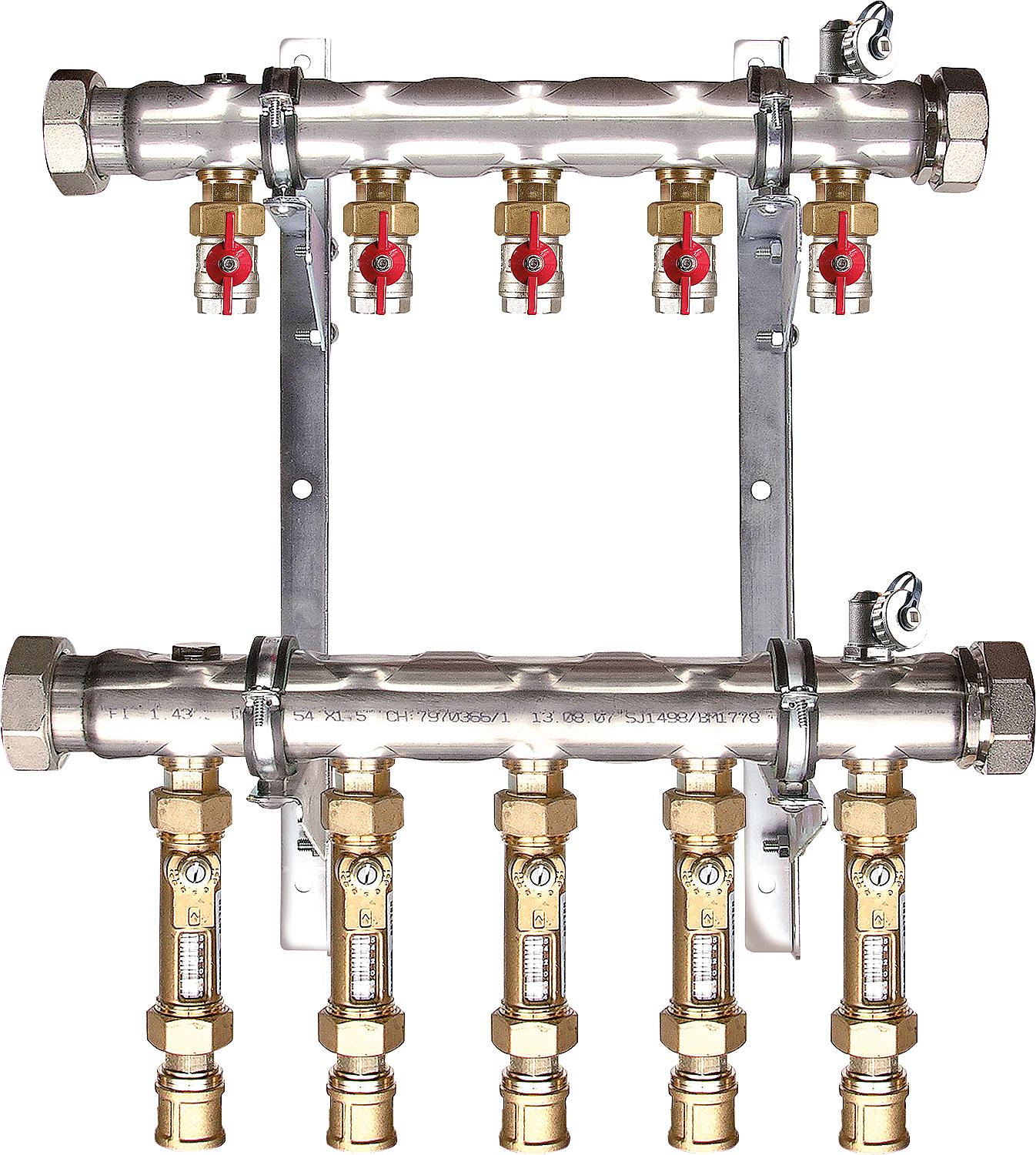

Brine distributor 2" for 4 brine circuits + TacoSetters in the return line, installation length 360 mm

• Fittings: Press-fit brass, nickel-plated
• Operating pressure: max. 10 bar
• Operating temperature: max. +90°C
• Volume flow: max. 6.44 m³/h

• With ball valves in the supply line and flow regulator (415 l/min) in the return line

• Outlet in the middle DN 20 (3/4")
• Nozzle spacing 80 mm
• Vent valve and KFE taps DN 15 (1/2")

• Wall brackets with sound insulation insert (DIN 4109), complete with screws and dowels, packaged in a protective carton.

Primary side: Union nut DN 50 (2”), flat sealing

Secondary side: DN 20 (3/4”) IT
