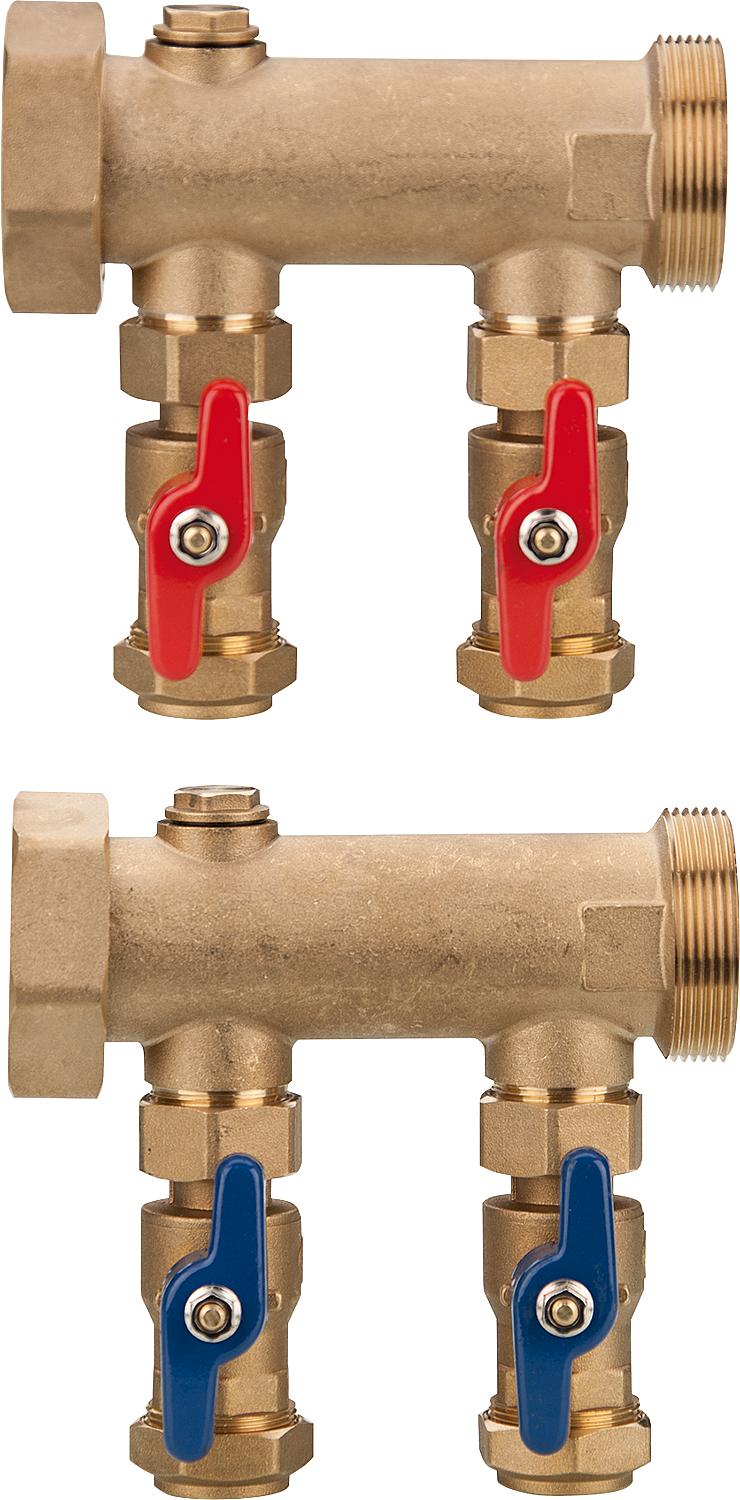

Brine distributor DN 40 (1 1/2") 25 mm clamp connection, 2 circuits

Brine distributor brass DN 40 (1 1/2") for heat pumps with ground collectors

• Modular construction, can be combined as desired
• The modules are flat-sealing and are securely and quickly connected to each other using a DN 50 (2") union nut.
• Each module has a DN 15 (1/2") closure that can be used for venting, filling valve, etc.

Technical data:

• Material: Brass
• Maximum operating pressure: 2.5 bar
• Maximum operating temperature: +60°C
• Maximum flow rate: 6.5 m³/h
• Outlet in the middle for 25 mm or 32 mm PE pipes
• Nozzle spacing: 80 mm
• Scope of delivery:
• Forward and return bars
• Outlet fittings
• Seals

Important: Install without tension!
