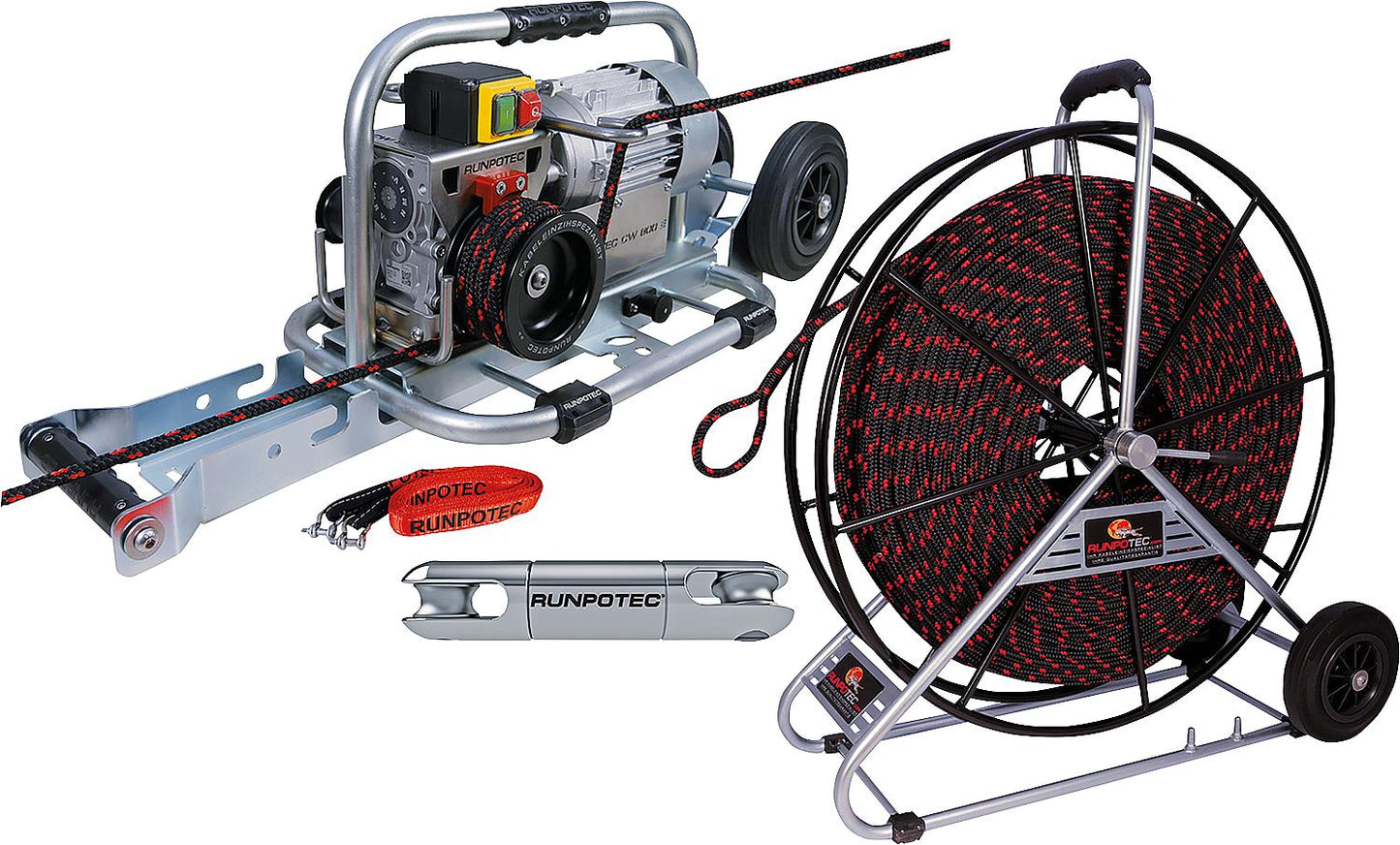

Runpotec capstan winch with 10mm pull rope, 200 meters, 230V / 50Hz, 0.75 kWh

• For horizontal cable pull
• One person can exert up to 800 kg of pulling force with the capstan winch.
• Safety rope guide
• Traction force SpillKlein: up to 800 kg at 4 m per min.
• Pulling force capstan (large): up to 400 kg at 8 m per min.
• Connection: 230 V, 50 Hz
• Power: 0.75 kWh/5.1 A
• Speed: 1400 rpm.
• Winch weight: 32 kg
• Weight of winch + trolley + strap: 41.2 kg
• Winch dimensions (L x W x H): 500 x 370 x 330 mm
• Trolley dimensions (L x W x H): 1000 x 235 x 205 mm
• Scope of delivery:
• Capstan winch Ref. No.: 10138
• Trolley mounting rail
• 3 m strap

Polyester tow rope including reel

• Reel with extendable feet and locking brake
• For controlled winding and unwinding of the rope
• 2 x spliced ​​loops
• Rope length: 200 m
• Rope diameter: 10 mm
• Total breaking load: 1640 kg
• Weight: 28 kg
• Reel dimensions (L x W x H): 820 x 400 x 900 mm
• Basket dimensions (W x ø): 98 x 730 mm
• Ref. No. 10168

Connecting swivel with twist compensation

• Stainless steel, corrosion-free
• Towing capacity: 1500 kg
• Dimensions (L x W x H): 144 x 30 x 30 mm
• Fork diameter: 12 mm
• Ref. No. 10176
