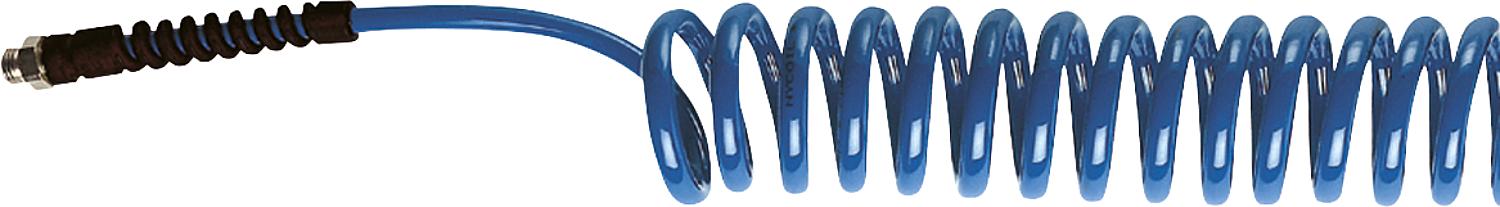

- Made of polyurethane
- Extremely elastic
- With rotating screw connection
- Plastic protection
- Similar retraction force to conventional nylon spiral hoses
- Less prone to looping
- Higher abrasion resistance
Advantages:
- They don't bend too easily and are therefore suitable for hard-to-reach areas.
usable in workplaces
- The risk of scratching painted or sensitive surfaces
(e.g. in car body construction) is significantly lower
- Kink-resistant, no cross-sectional constrictions
- Small coil diameter
- Maximum working length 80% of the stretched length
- Ends angled on both sides with rotating screw connections, fully assembled
Applications
- In pneumatics
- For pneumatic tools
- Assembly lines
- laboratories
- robot
- Measurement and control technology
Technical data:
- The information is for using the hoses with air.
- Temperature range: -40°C to 85°C
- Operating pressure: see diagram
- Color: blue
- Durometer: 95
| Connection | DN 10 (G 3/8”) |
|---|---|
| Maximum working length [m] | 3.0 |
| Inner x outer diameter [mm] | 8 x 12 |
| Unit price | CHF/piece |
| Length [m] | 3.0 |
| outer diameter [mm] | 80 |
