- For cooling and heating

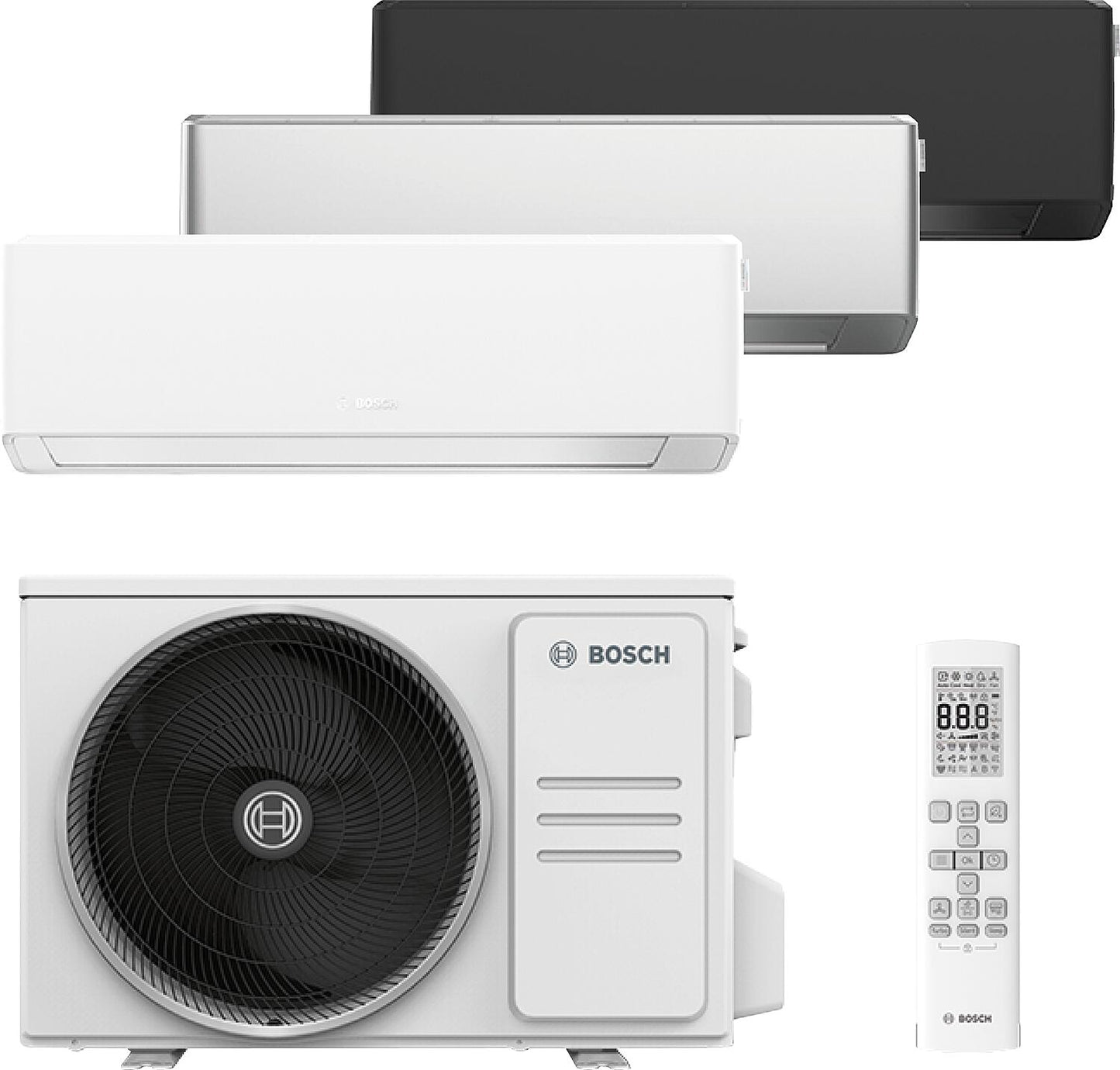

- Consisting of an outdoor unit and a wall-mounted indoor unit
- Eligible for funding under BEG
- Intelligent motion sensor
- Air purification (ionizer)
- Self-cleaning function
- Energy saving function Save plus
- Control via the HomeCom Easy App is possible by default.
- Energy monitoring, grid-serving interface
- Integrated Wi-Fi
- Follow Me function, room temperature is measured at the remote control
- With frost protection function (room temperature min. 8°C)
- Indoor unit available in 3 colors
- Refrigerant R32, pre-filled
- Includes infrared remote control
Technical specifications:
| Type | CL 7000iSet 20 | CL 7000iSet 26 | CL 7000iSet 35 | CL 7000iSet 53 | |
|
EEK Cooling/Heating
|
A+++/A+++ | A+++/A+++ | A+++/A+++ | A+++/A+++ | |
|
Rated cooling/heating capacity
|
[kW] | 2.0/2.3 | 2.5/4.1 | 3.4/4.1 | 5.0/5.6 |
|
SEER Cooling
|
9.4 | 10.1 | 9.7 | 8.5 | |
|
SCOP Heating
|
5.1 | 5.1 | 5.1 | 4.6 | |
|
Sound pressure level outdoor unit
|
[dB(A)] | 53 | 56 | 56 | 56 |
|
Sound pressure level indoor unit
|
[dB(A)] | 53 | 56 | 60 | 60 |
|
Operating temperature inside cooling/heating
|
[°C] | 0/32 | 0/32 | 0/32 | 0/32 |
|
Operating temperature outside for cooling/heating
|
[°C] | 15/50 | 15/50 | 15/50 | 15/50 |
|
Maximum pipe length.
|
[m] | 25 | 25 | 25 | 30 |
|
Dimensions of outdoor unit (H x W x D)
|
[mm] | 610 x 887 x 337 | 554 x 805 x 330 | 554 x 805 x330 | 673 x 890 x 324 |
|
Dimensions of indoor unit (H x W x D)
|
[mm] | 308 x 909 x 255 | 308 x 909 x 255 | 308 x 909 x 255 | 308 x 909 x 255 |
|
Weight of outdoor unit
|
[kg] | 28.1 | 31.3 | 31.4 | 40.9 |
|
Weight of indoor unit
|
[kg] | 12.4 | 12.4 | 12.4 | 12.4 |
|
Operating voltage
|
[V] | 230 | 230 | 230 | 230 |
|
Maximum operating current.
|
[A] | 11.0 | 13.0 | 13.5 | 13.5 |
| Brand | Bosch |
|---|---|
| Manufacturer part number | 7733703118 |
| Unit price | CHF/set |
| Indoor unit color | white |
| Ref. No. | 7733703118 |
| Type | CL 7000i-Set 20 E |
| EAN | 4062321861049 |
