• Connectors with interchangeable inserts, usable for all common aluminum composite pipe types
• Tool-free connection of various inner and outer diameters from different pipe manufacturers
• After removing the screw cap, the connection can be loosened again.
• Absolutely secure connection via stainless steel retaining elements and inspection window for checking the insertion depth
• Suitable for use in drinking water and heating systems
• Suitable for drinking water according to the UBA positive list
• Temperature and pressure range: max. 90°C (6 bar, with heating)
max. 80°C (10 bar, for drinking water)
• Supplied in blister pack
• Approved exclusively for use with aluminium composite pipes

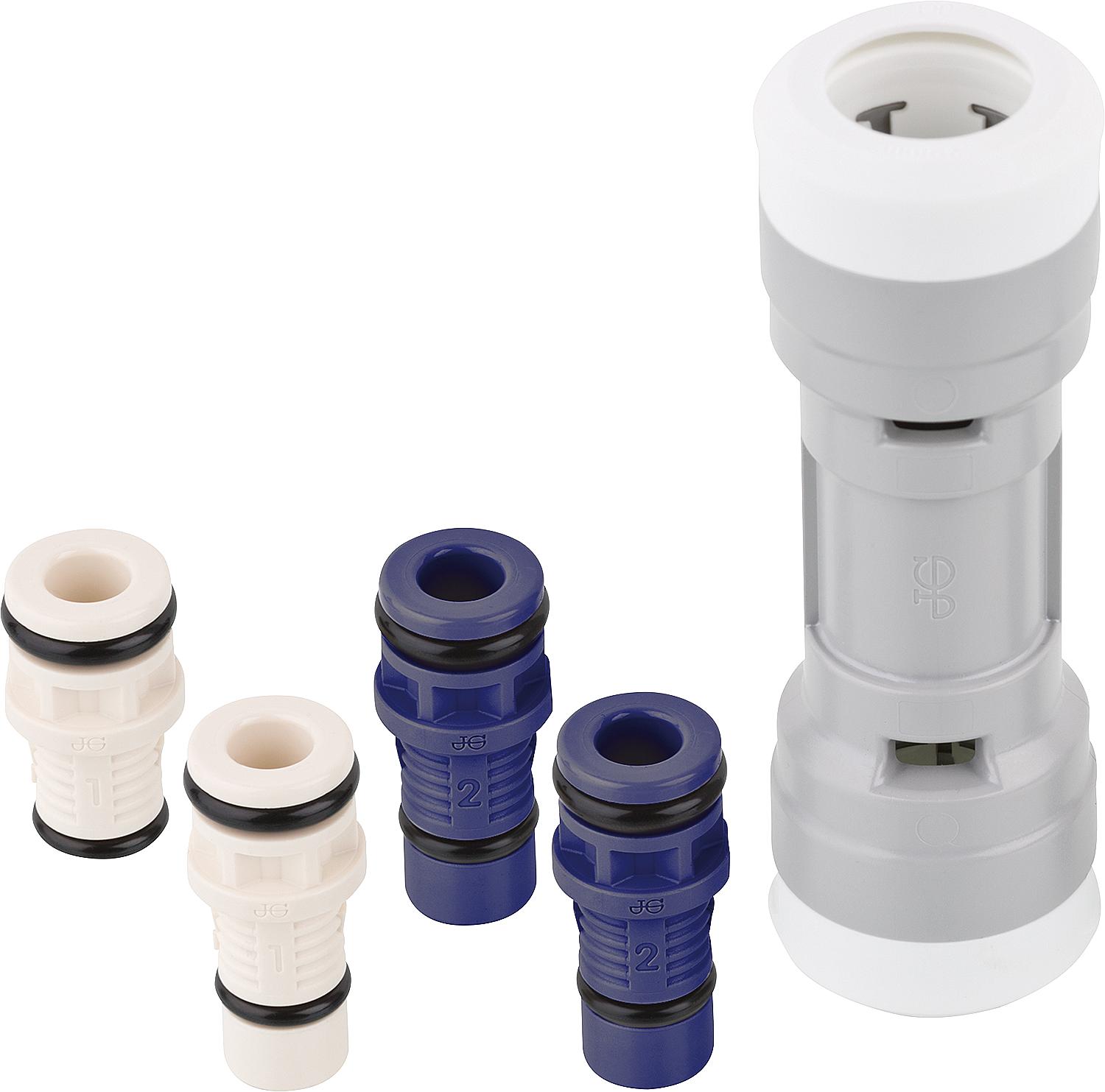

• Includes 4 interchangeable inserts for pipes with an inner diameter of 17.3 - 20.2 mm:
- 2x Blue: 19.6 - 20.2 mm
- 2x cream: 17.3 - 17.9 mm
| Unit price | CHF/set |
|---|
