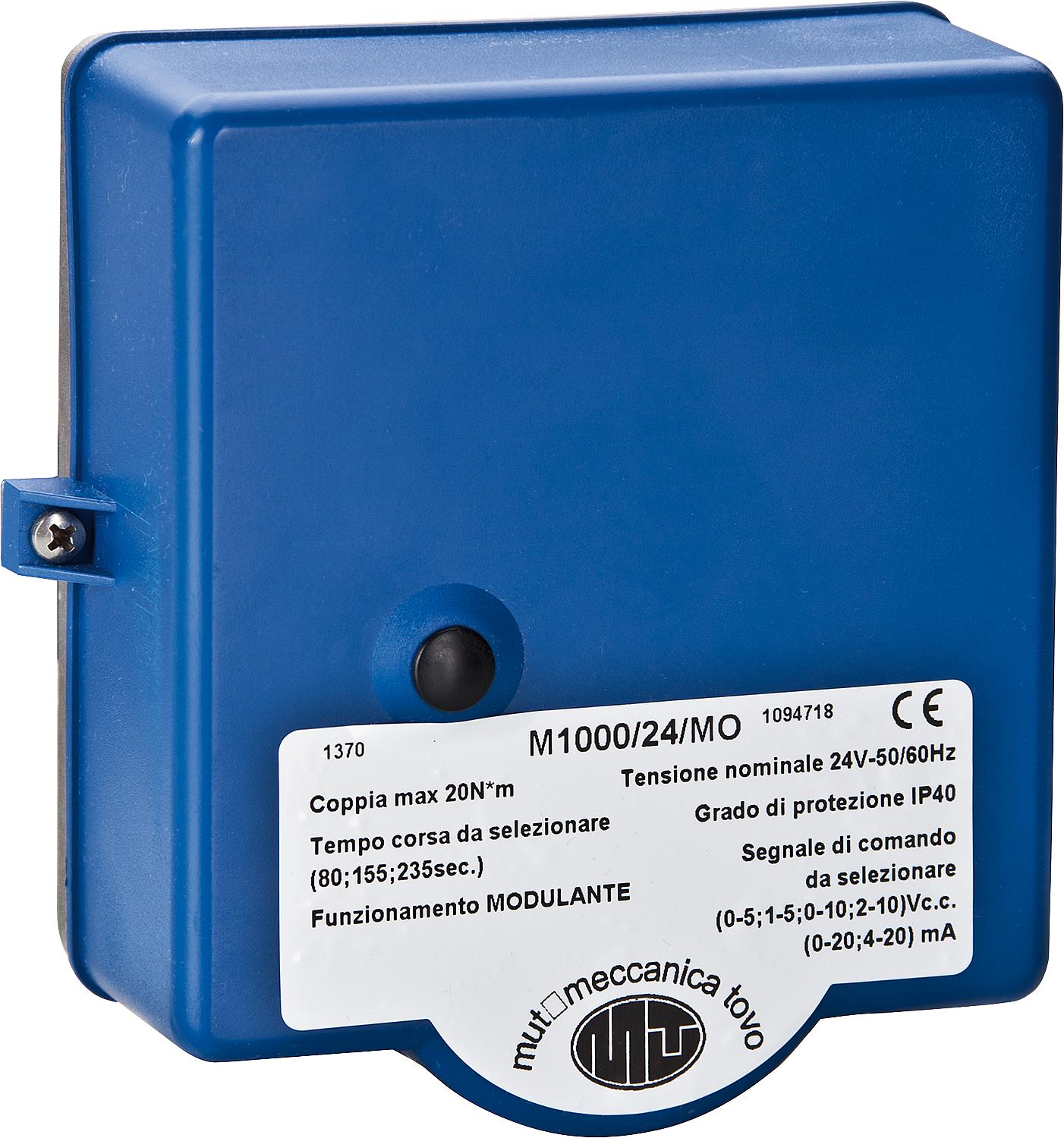

3-point actuator, M1000 24V/AC 0-10V, 90°, 240 sec. continuous with auxiliary microswitch

• Suitable for mixers of the 1000 series from DN65 to DN125.
• Compact design
• With built-in microswitch

Technical data:

• Angle of rotation: 90°
• Torque: 20 Nm
• Ambient temperature: max. 50°C
• Power consumption: 3.86 W
• Protection class: IP40
• Cable length: 1.5 m
• Dimensions (mm): 150 x 150 x 100

• Operating voltage: 24 V (AC)
• Control type: 0...10 V, continuous
• Duration 90°: 240 sec.
