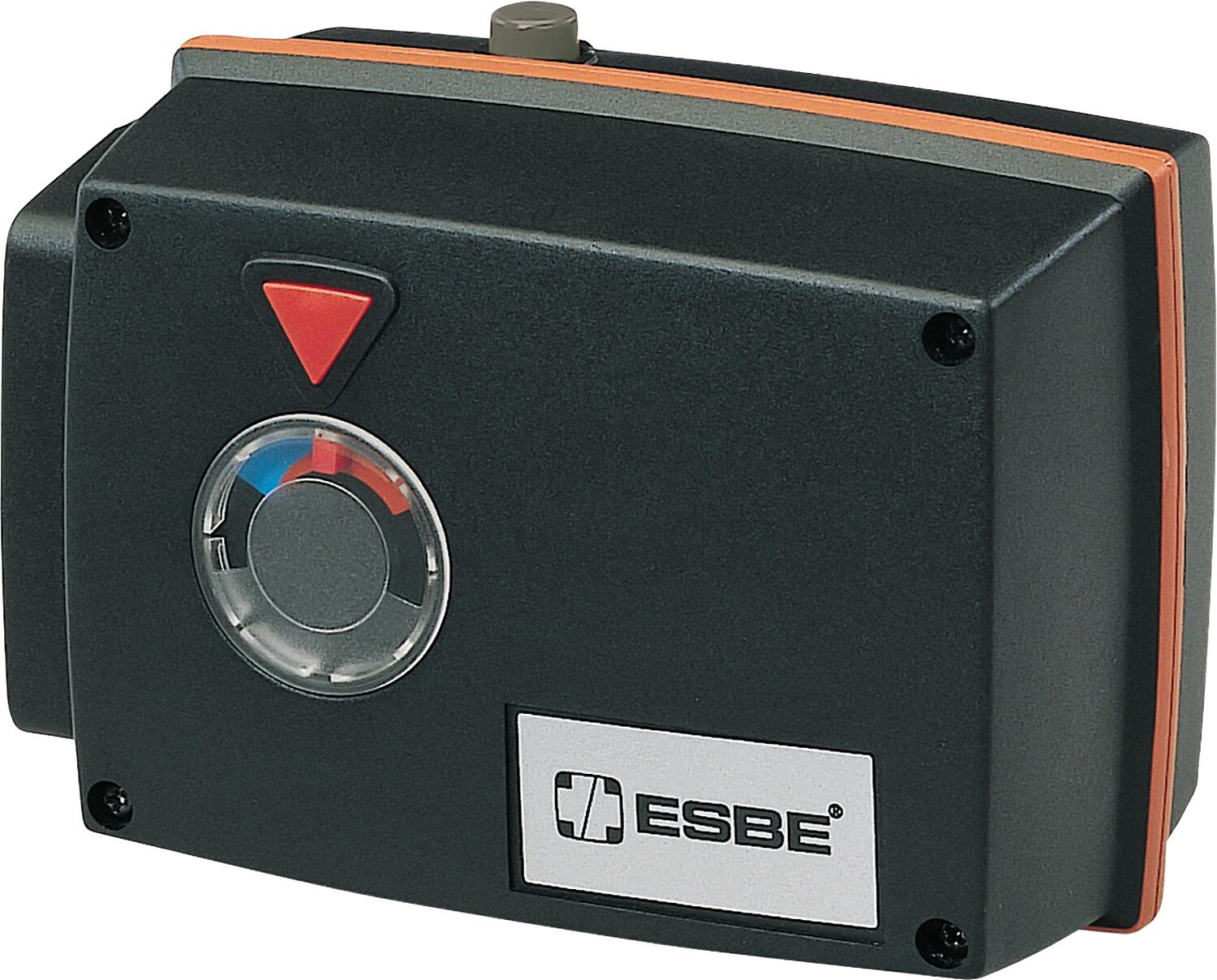

ESBE actuator, type 93P, continuous, 24V/AC, 60 - 390 sec.

• Compact actuator for operating mixers
• The actuator is equipped with a manual override and has a front-mounted indicator showing the mixer position.
• Reversible and equipped with limit switches controlled by the switching cams.
• Adjustment of the rotation angles on the shift cams is possible.
• Wide range of different runtimes
• Usable on various makes thanks to a wide variety of different mounting kits.
• Including mounting kit 900

Technical data:

• Operating voltage:
• 230 V, 50 Hz
• 24 V, 50 Hz
• Power consumption:
• 230 V – 5 VA
• 24 V – 2 VA
• Protection class: II
• Protection rating: IP54
• Rotation angle: 30° to 180°

• Operating voltage: 24 V, 50 Hz, AC/DC
• Proportional: 0-10 V, 20 mA
• Adjustable rotation angle: 90 – 355°
• Adjustable runtime: 60-390 seconds.
