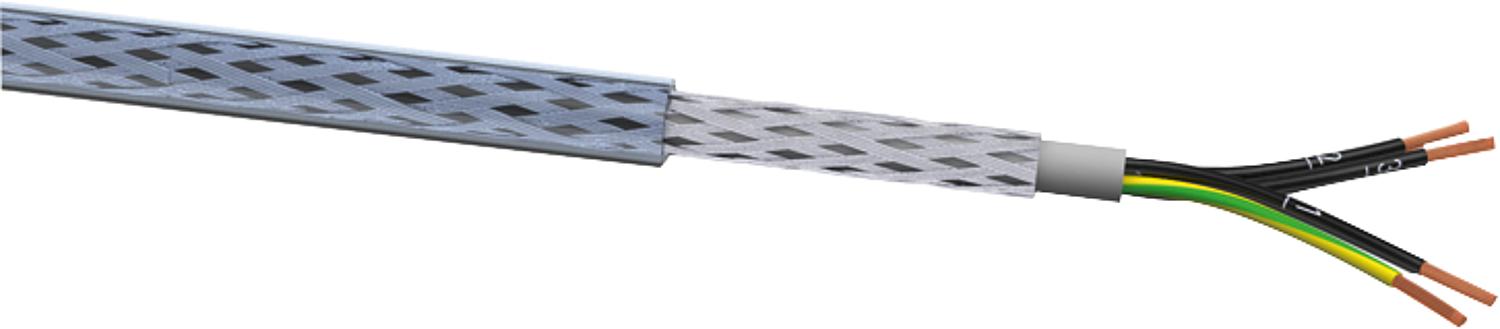

- Shielded control cable with numbered conductors for use in machine tool manufacturing, mechanical engineering, plant engineering, painting systems, power plants, cooling systems, office machines and data processing systems.
- For installation in dry, damp or wet rooms, especially under industrial environmental conditions, with normal mechanical stress.
- Outdoors, the cable may only be laid with UV protection and in compliance with the temperature range.
- VDE Registration No. 7014
- Nominal voltage: 300/500 V
- Temperature range: moving: 5°C ... 70°C; fixed installation: 40°C ... 80°C
- Outer sheath: Special PVC-based compound, transparent, flame-retardant (IEC 60332.1), non-binding meter marking on the outer sheath
- Shielding: tinned copper braid (approx. 80-85% coverage)
- Roll: 50 m
| Number of conductors and nominal cross-section [mm²] | 3 G 0.75 |
|---|---|
| Unit of sale | CHF/roll |
| Copper content | 57.9 |
| Roll [m] | 50 |
