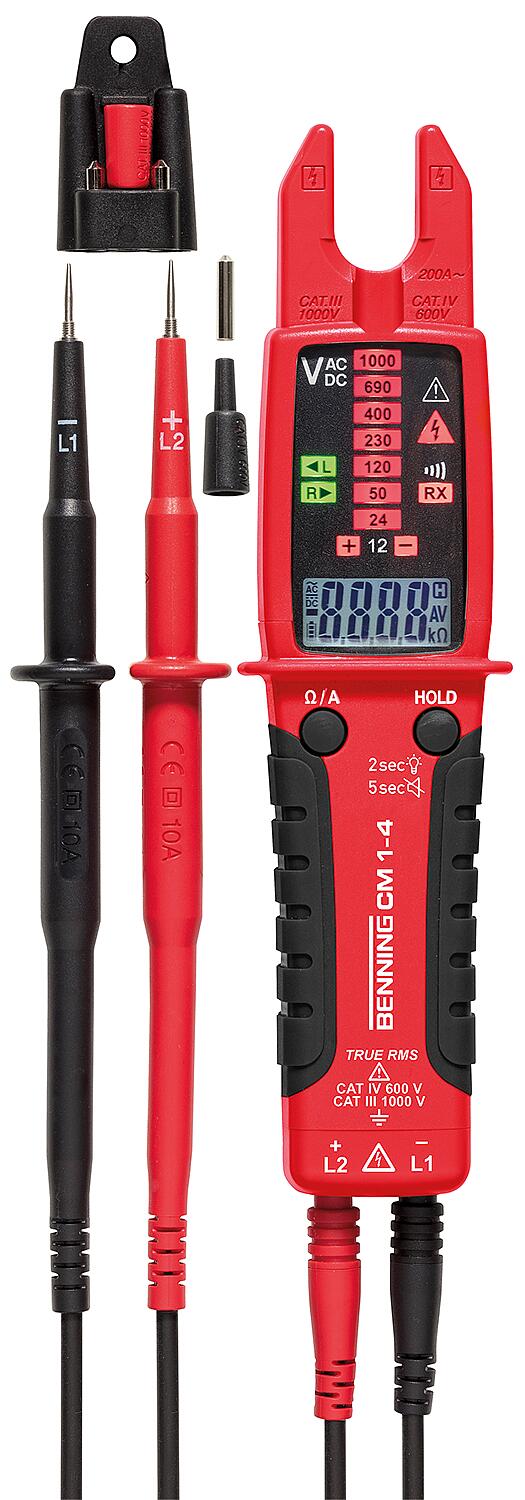

Benning CM 1-4 current clamp

• Display range: 6,000 (illuminated)/ LED
• Basic accuracy: 1%
• Voltage AC: 6 V 1000 V
• DC voltage: 6 V 1000 V
• Current AC: 0.1 A 200 A
• Resistance: 1 Ω 50 kΩ
• Continuity / Diode: Yes /
• Storage: Datalogger / HOLD
• Measurement method: TRUE RMS
• Maximum jaw opening: 16 mm
• Precise thanks to the True RMS measurement method
• Rotation direction check via green LEDs (right/left)
• Single-pole external conductor test (phase) via red LED
• Continuity test via buzzer and red LED
• Polarity check via +/ LED
• One-handed operation for voltage measurement at sockets (19 mm)
• LED measuring point lighting

Application:

• Open TRUE RMS current clamp with LC display and LED step indicator

Measurement function specific:

• Current measurement up to 200 A AC via open current clamp
• Voltage measurement up to 1000 V AC/DC (with/without audible signal), no batteries required from 50 V
• LED step indicator: 12, 50, 120, 230, 400, 690, 1000 V
• Scope of delivery:
• Belt holster
• Measuring lead set
• Peak protection
• Contact tip enlargement
• Batteries
