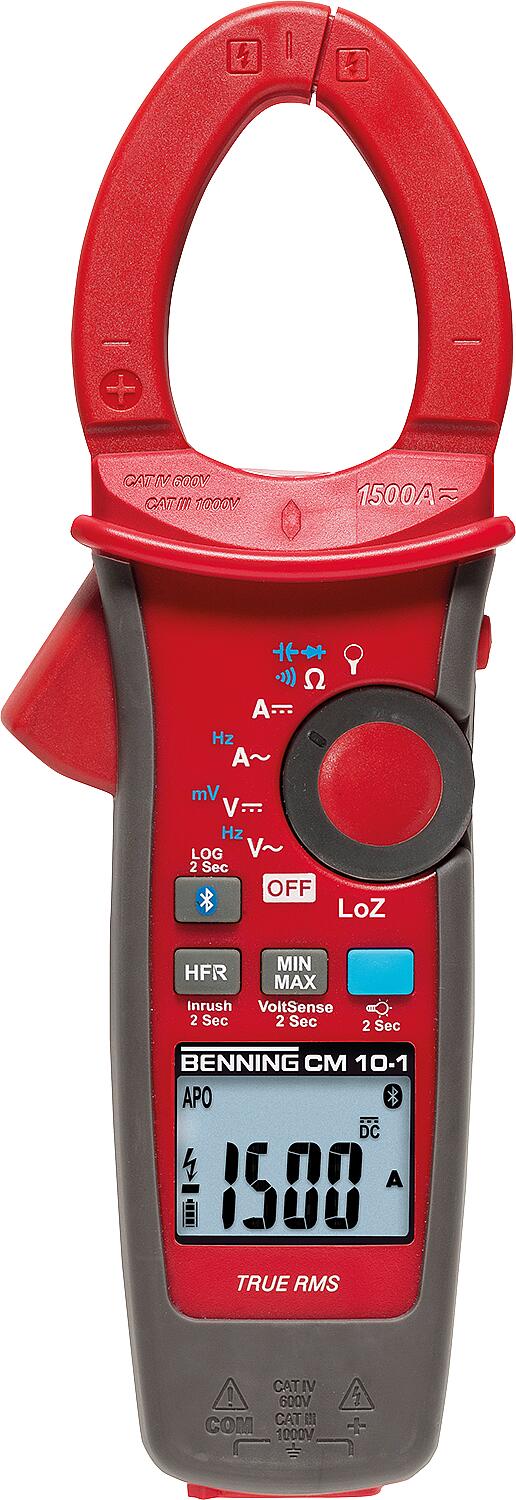

Benning CM 10-1 current clamp

• Display: Backlit LCD
• Display size: 6000
• Basic accuracy: 1.00%
• Voltage range AC: 0.1 V - 1000 V
• DC voltage range: 0.1 mV to 1000 V
• Current measuring range AC: 10 mA - 1500 A
• DC current measuring range: 11 mA to 1500 A
• Resistance measurement range: 0.1 Ω to 600 kΩ
• Continuity/Diode
• Frequency measurement range: 0.01 Hz to 10 kHz
• Capacitance: 0.1 nF 1 mF
• Interface: Bluetooth®
• Software: APP (iOS, Android)
• Filter function: HFR filter (800 Hz)
• Memory functions: HOLD, MAX/MIN, INRUSH, ZERO
• Data logging function: 4000 measured values ​​(interval 1s60s)
• Voltage sensor for non-contact phase and cable break testing
• Maximum jaw opening: 42 mm
• Overvoltage category: CAT IV 600V
• Weight: 325 g
• Scope of delivery:
• Batteries: 2 x AA (Order No. 62 079 47)
• 1 x measuring leads
• 1 x protective bag

True RMS measurement method for precise measurement results
