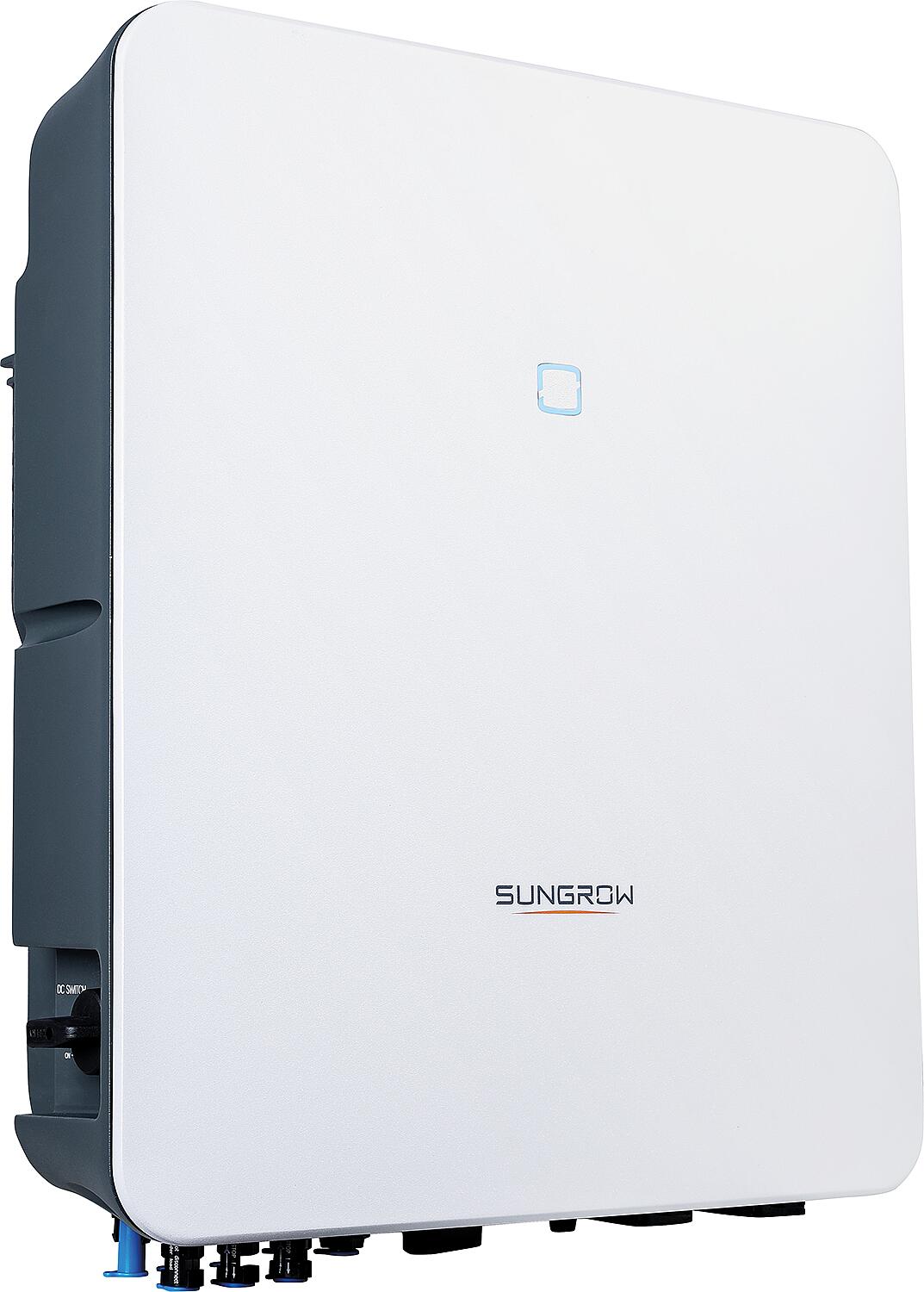

Sungrow hybrid inverter SH10RT V112

Bewertungen

| Eine Rezension schreiben

CHF 1,524.20

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

SUNGROW

sofort lieferbar

Security policy

Delivery terms

Return policy

Protection rating: IP65
Number of MPPTrackers: 2
Strings per MPPTracker:
SH5 8: 1/1
SH10: 1/2
Number of feed-in phases: 3
DC voltage (Udc max): 1000 V
DC/AC surge arrester: Type II
DC connection: MC4 (PV) Sunclix (battery)
AC connection: 5-pin connector
Dimensions (H x W x D): 460 x 540 x 170 mm
Weight: 27 kg
Communication ports: RS485/WLAN/Ethernet LAN
LED display with different colors
UPS function, < 20 ms switching time
UPS connection bridged with the AC output during normal operation
Wide battery voltage range from 150–600 V
Compatible with DC-AC coupled systems, therefore it can be retrofitted to existing PV systems at any time.
Fast charging/discharging to ensure trouble-free handling of peak consumption.
Unique connectors for time-saving installation

AC rated power Pac nominal [W]	10000
Brand	SUNGROW
Maximum PDC discharge power [W]	10600
European efficiency eta max. [%]	97.9
Manufacturer part number	3601200019
Unit price	CHF/piece
Maximum output current lac [A]	14.5
DC rated power Pdc nominal [W]	15000
Type	SH10RT V112
