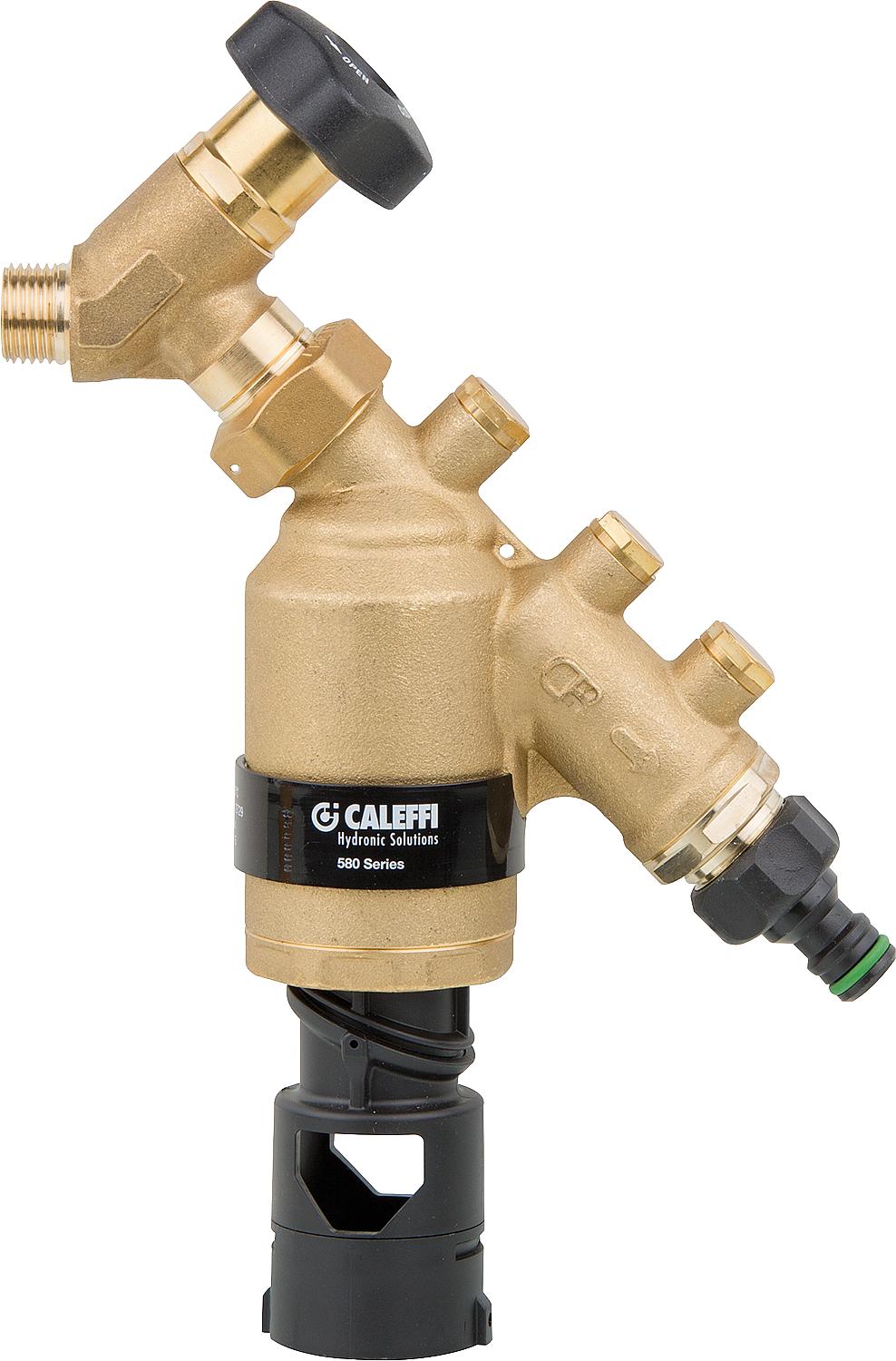

System separator Ba type 580240, DN15 (1/2") male thread with hose connection

System separator Ba type 580240, DN15 (1/2") male thread with hose connection

Bewertungen
CHF 173.00
CHF 173.00
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
CALEFFI
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • With shut-off valve, external thread and hose connection

  • Protection of the drinking water supply network up to category 4 according to EN 1717 with system separator type BA with certification EN 12729
  • Easy inspection and maintenance thanks to removable cartridge
  • Upstream, verifiable dirt trap and rotatable drain funnel
  • Wide range of applications within the framework of the EN 1717 standard: private households, industry, trade, agriculture

Technical data:

  • Maximum operating pressure: 10 bar
  • Maximum input temperature: 65°C
  • Housing material: dezincification-resistant brass
Brand CALEFFI
Connection DN 15 (1/2") AG
Manufacturer part number 580240
Unit price CHF/piece
Size DN 15 (1/2") AG
Type 580240
EAN 8016615522211
