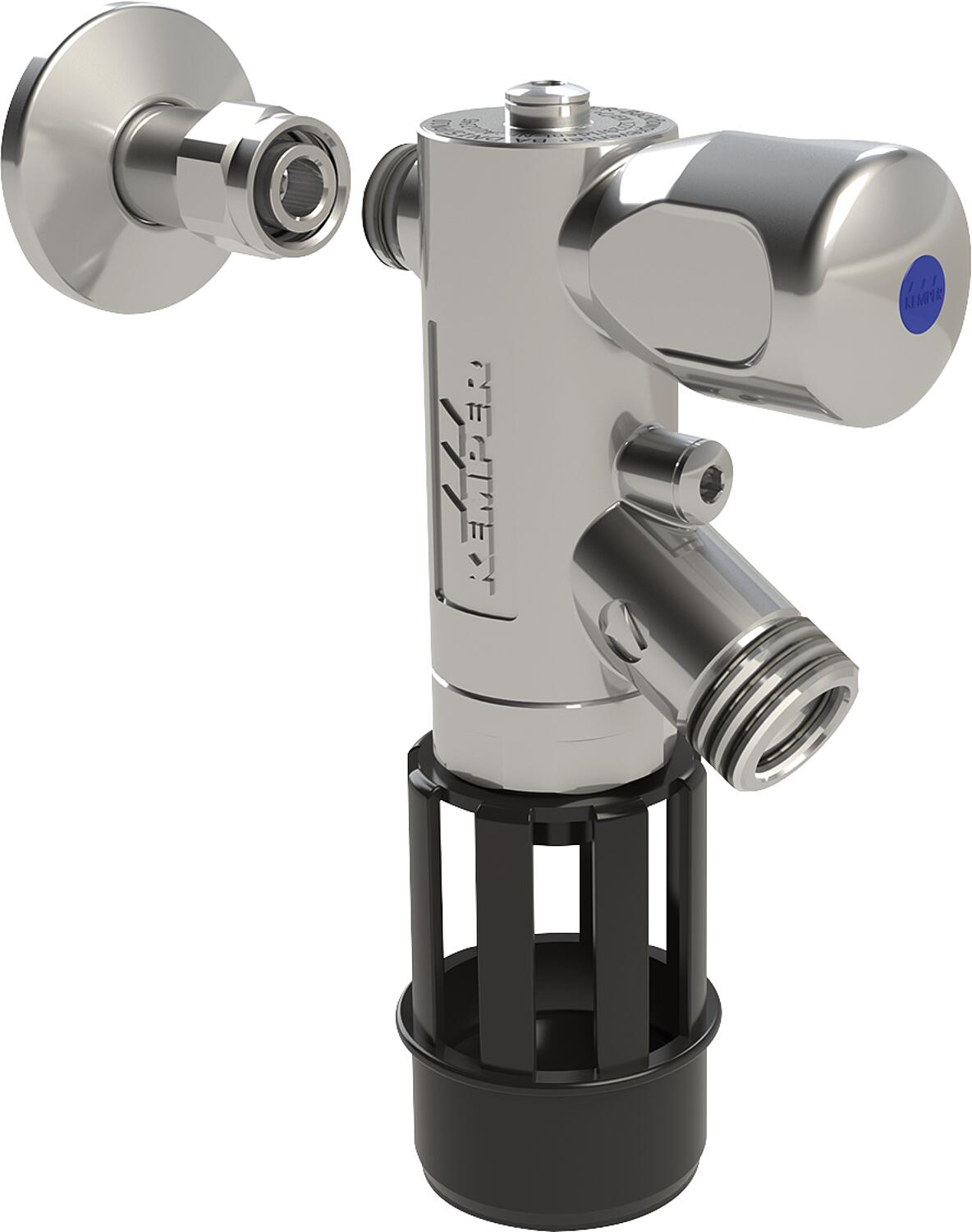

KEMPER BA chrome-plated system separator, DN10, R1/2

• Connection size:
Inlet: DN 15 (1/2")
Outlet: DN 20 (3/4")
• Made of brass, chrome-plated
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 60 °C
• For standard-compliant heating system filling, especially in residential areas
• For protecting drinking water against non-potable water up to and including fluid category 4 according to DIN EN 1717 / DIN 1988-100
• Suitable for connection to the wall plate
• With wall mounting and push-fit rosette for installation even in very confined spaces
• EPDM seat seal
• Integrated stainless steel dirt trap on the entrance side
• Integrated differential pressure-controlled and maintenance-friendly safety cartridge including RV
• With controllable intermediate pressure chamber
• Test cams for connecting the test valves
• Plastic drain connection according to DIN EN 1717
• Dead space free
• Installation position horizontal, drain valve at the bottom
• With shut-off function for maintenance
• Outlet side with threaded connection according to ISO 228 for connecting a hose barb
• The maintenance requirements according to DIN EN 806-5 must be met.
• Suitable maintenance kit (Order no.: 93 187 23)

Standards and approvals:
• DVGW approval
• VA approval
• Plastic parts with KTW and W 270 approval
• according to UBA assessment criteria
• Sound insulation approval according to DIN EN ISO 3822 Class 1
• DIN EN 1717
