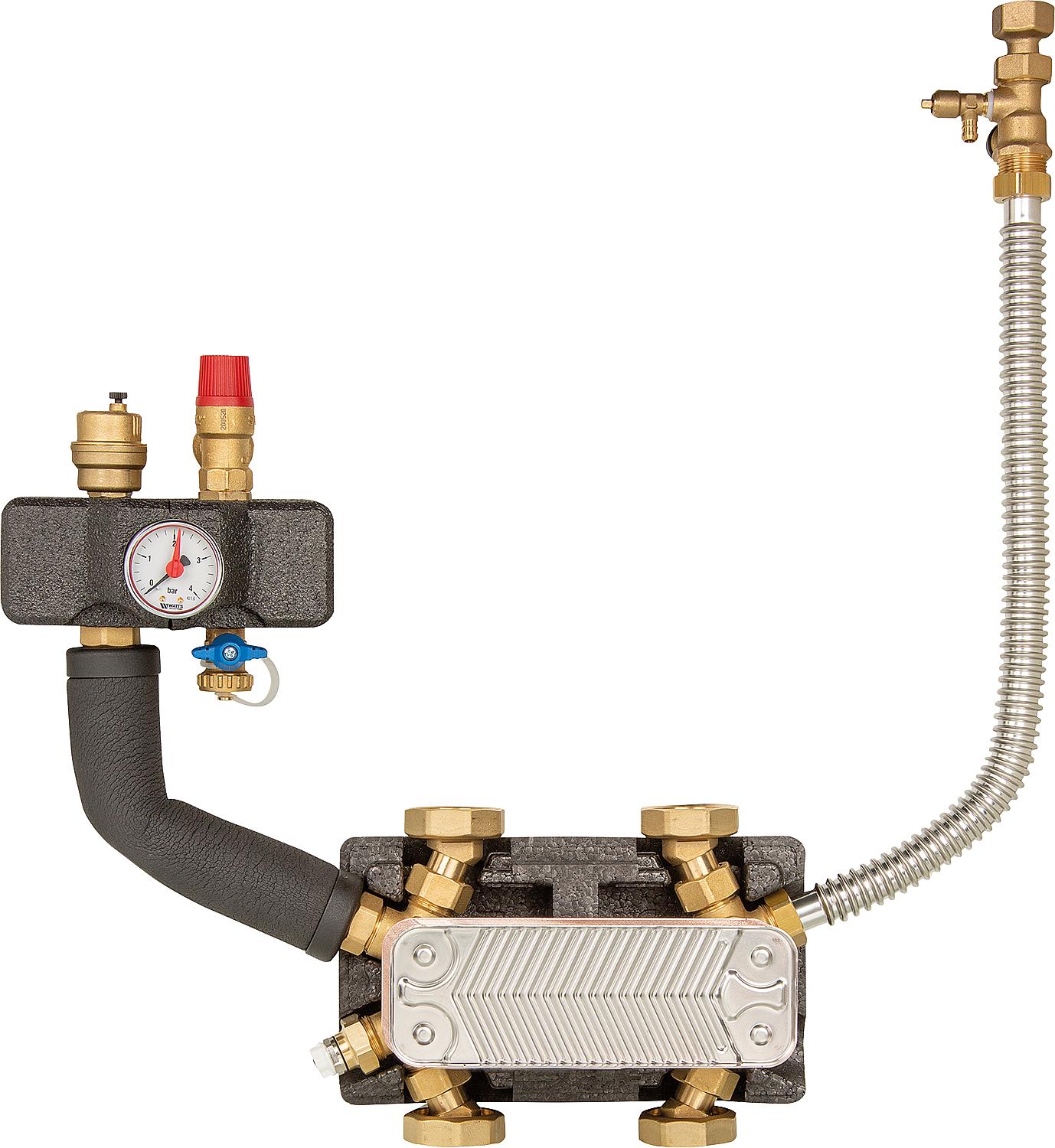

System separation Wolf 2072202

System separation Wolf 2072202

Bewertungen
CHF 621.95
CHF 621.95
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
WOLF
14 004 23
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Consisting of:
  • Plate heat exchanger, including connection fittings
  • Safety group with connecting pipe
  • Cap valve and corrugated hose (for connection to MAG)
  • Manual air vent
  • Thermal insulation shell made of EEP
  • Nozzle spacing: 125 mm
  • Installation height: 130 mm

  • Technical data:
  • Power output at inlet 70°C/50°C and outlet 25°C/35°C: 25 kW
  • Maximum operating pressure: 10 bar
  • Maximum operating temperature: 110 °C
  • Kvs value: 4.3

  • Connections:
  • Transition fitting, flat sealing, DN 25 (1") female thread x DN 40 (1 1/2") female thread
Brand WOLF
Manufacturer part number 2072202
Version DN 25 (1")
Unit price CHF/piece
Ref. No. 2072202
EAN 4045013280052
