Fuel level indicator Tecson e-Litro

• The probe is screwed onto the tank or mounted directly next to it. The weighted measuring hose hangs down to the bottom of the tank. For plastic tanks without a screw-in opening, a suitable hole can be drilled through the tank connection plate. The measuring hose of the LITRO probe is then inserted through this hole. The LITRO display unit can be mounted at a distance, eliminating the need to enter the tank room for readings.

Technical data:

• Liter gauge for tank systems with a maximum total volume of 10,000 liters
• 230 V AC, via mains plug
• 0 250 mbar

Max. 2.50 m water column

Max. 2.90 m Heating oil/diesel

• With a deviation of less than 1.2% from the full-scale value
• Liquids: All non-aggressive oily and aqueous liquids.
• Storage tanks for heating oil and diesel, as well as water cisterns
• Protection class IP30

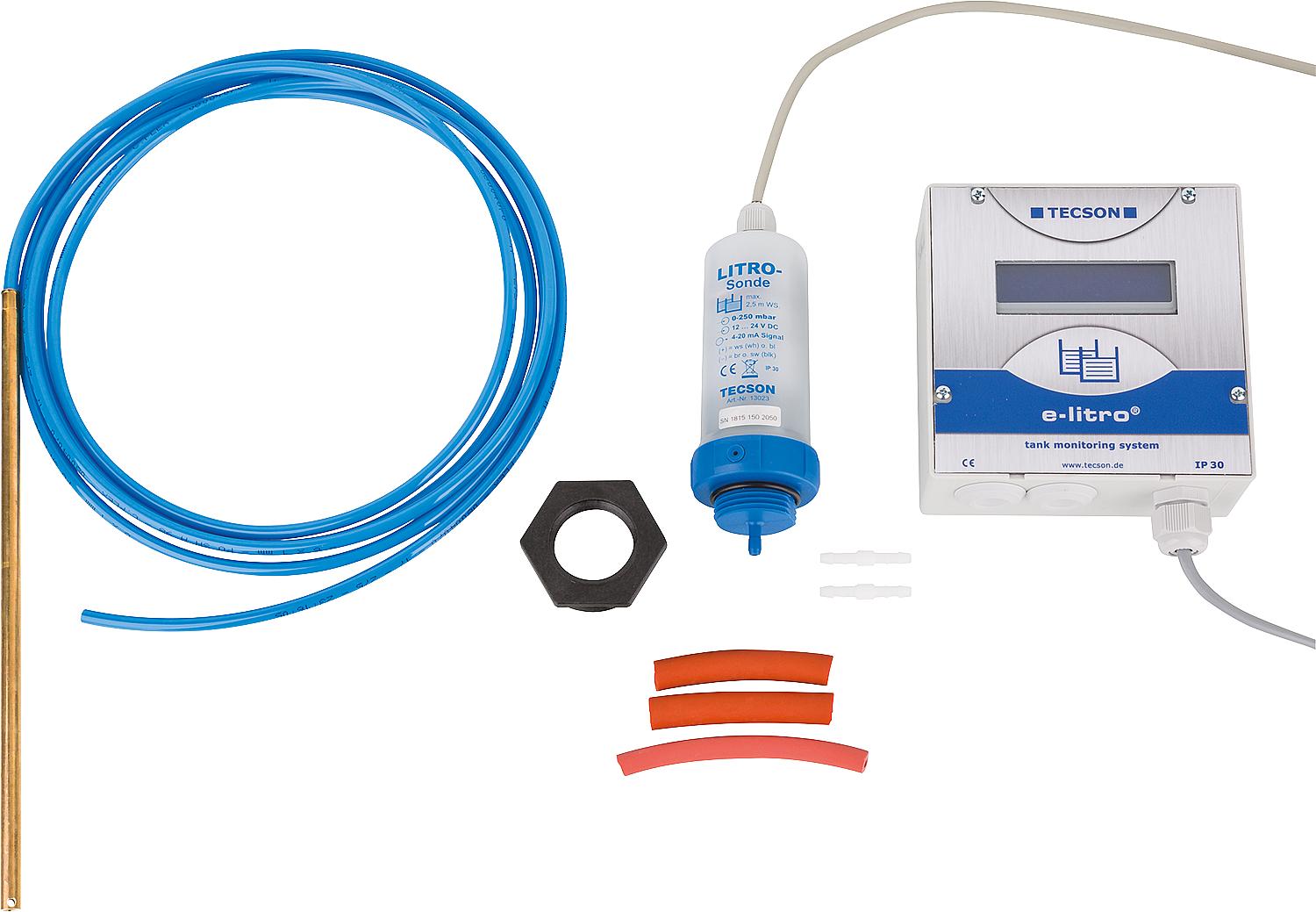

• Scope of delivery:

Display device:

• With 2-line LCD display, backlit.
• With 1.5 m power cord

Litro probe:

• With 6m cable (extendable up to 100m + u.)
• With 3.2 m measuring hose to the bottom of the container (can be shortened, extendable to 40 m).
• Includes mounting accessories, universally suitable for basement tanks, plastic battery tanks, and underground tanks.
• Documentation: Assembly instructions and operating instructions.
