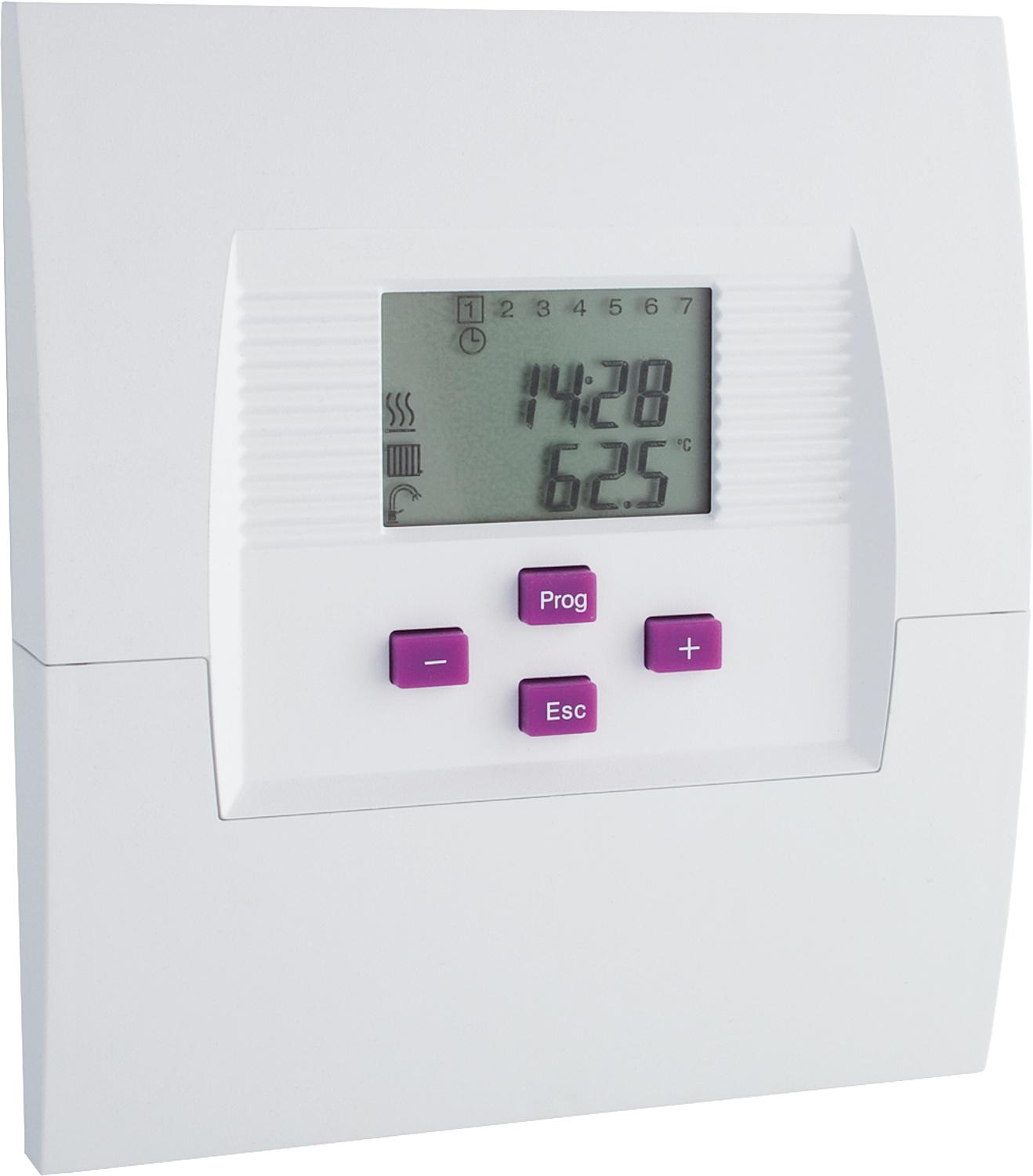

CETA 101 differential temperature controller with sensor

• Not only simple, standard systems can be controlled via CETA, but also more demanding applications can be implemented by combining several CETA modules. This modular expansion allows up to four control units to be combined. The individual control units communicate with each other via a data bus.
• Each CETA controller can also be operated independently.

Technical data:

• Operating voltage: 230 V / 50 Hz
• Power consumption: max. 2.1 VA
• Fuse: 6.3 A
• Contact rating of the output relays: 2(2) A
• Ambient temperature: 10...+50°C
• Protection class: IP 30
• Protection class according to EN 60730: II
• Housing dimensions (W x H x D): 145.5 x 161 x 48 mm
• Housing material: ABS Vo
• Mains connection technology: Screw terminals 1.5 mm²
• Sensor connection technology: Screw terminals 0.5 mm²
• Mounting: Wall or DIN rail

• With three relay outputs and four sensor inputs, parameterization option for two separate differential controls, heat generator lockout, possibility of heat balancing via optional return flow sensor

Scope of delivery:

• 1x Ceta 101
• 1x KVT 20/2/6 sensor
• 2x PT 1000/6 sensors

Optional accessories:

• CETA SMS
• Return sensor
