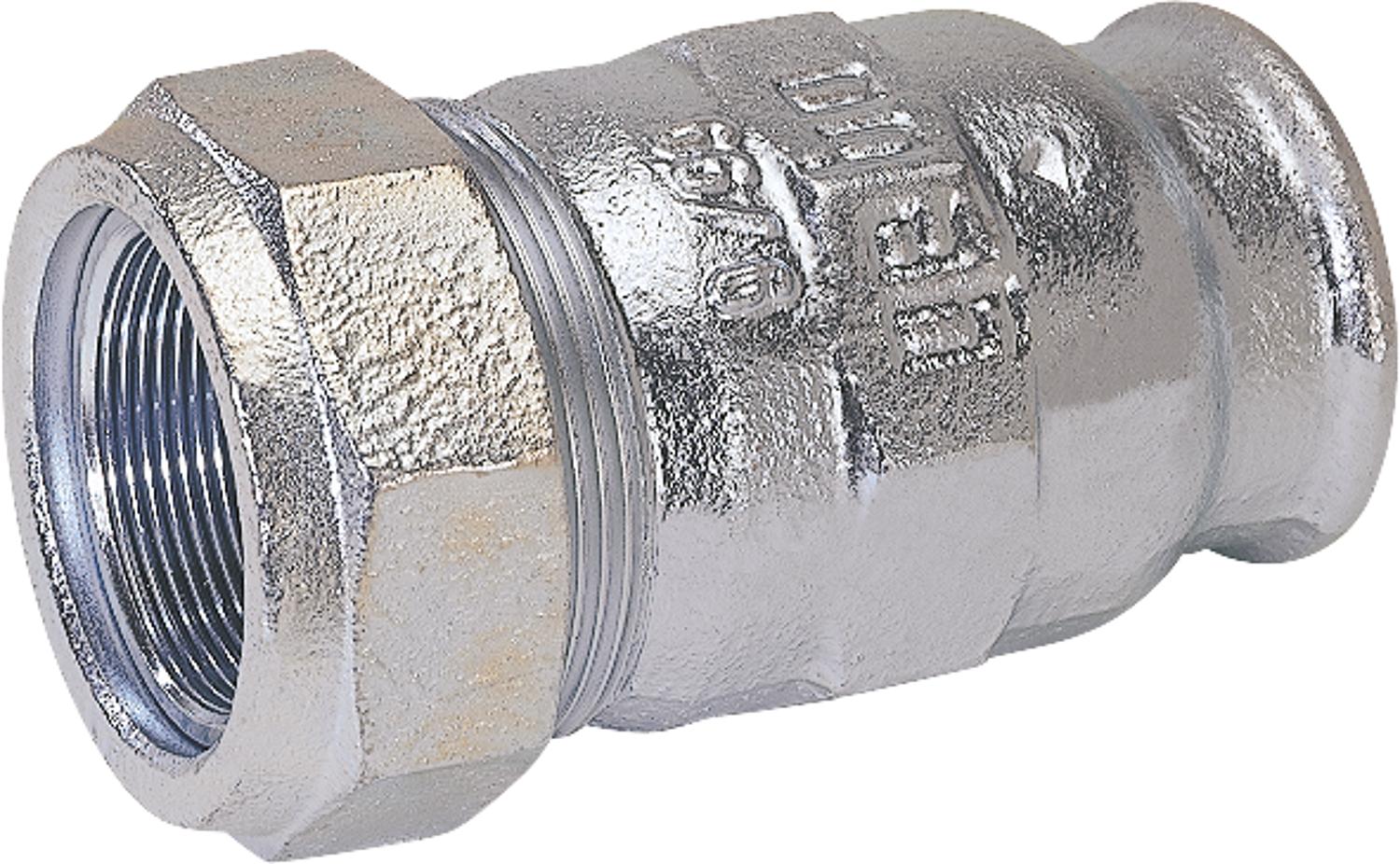

Malleable iron compression fitting with internal thread, gas PN 5, water PN 16, type I 2" (60.3)

• A system for water, house connection lines in the gas supply (gas outside of buildings), fire extinguishing lines, compressed air lines, filling lines for heating oil up to 2" (observe TRBF!)
• Suitable according to the UBA positive list for drinking water
• For use with drinking water, the rubber molding ring must be replaced. This is stipulated by the elastomer guideline DIN EN 6811.
• Fitting body made of malleable cast iron
• Steel clamping ring
• NBR sealing ring
• Water up to 25°C: 10 bar up to DN 20 (3/4"), 16 bar from DN 25 (1"), heating systems: 80°C at 6 bar
• Maximum gas temperature: -20°C to +60°C at 5 bar
• Maximum oil temperature: +40°C at 6 bar
• Compressed air pressure max.: 12.5 bar
• For steel pipes according to DIN EN 10255 and DIN EN 10220 series 1
• Exams:
• Water: DVGW W 534, DVGW Reg. No.: DW8511AU2216
• Gas: DIN 33871, DVGW Reg. No.: NG4502AP1454 VdS-tested from DN 25 (fire extinguishing lines)
• Heating oil: building authority approval DIBt, Approval No.: Z38.4212

Essential EPDM rubber molding ring

• Order No. 93 040 7281
