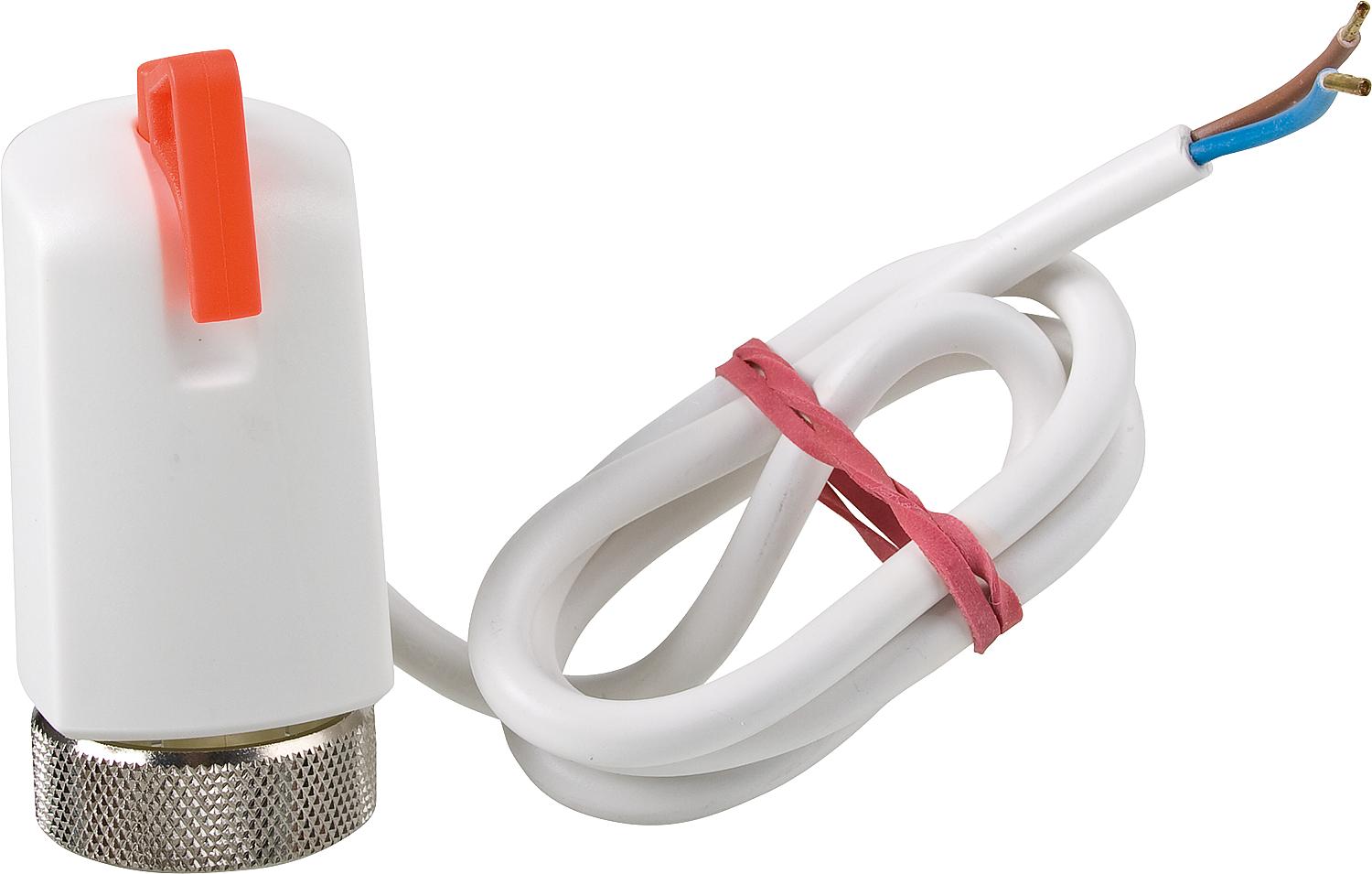

Thermaqua Basic actuator M 30 x 1.5 AG

• With FirstOpen function for simplified installation; the actuator is open thanks to the locking mechanism and can be mounted on the valve without much effort.
• Before commissioning, the locking mechanism is removed with a single movement; the actuator is immediately ready for use (Fig. 1).
• With the position indicator at the top, when the pin is extended, the actuator is powered and the valve is open (Fig. 2).

Technical data:

• Threaded connection M 30 x 1.5 mm
• Normally closed (NC)
• Operating voltage: 230 V / 50 Hz
• Inrush current (briefly): 195 mA
• Continuous current: 9 mA
• Power consumption: 2 W
• Closing and opening times: approx. 3 min
• Stroke: approx. 3.5 mm
• Spring force: 90 N (± 10%)
• Protection class: IP 40
• Connection cable: 1 m / 2 x 0.75 mm²
• Dimensions (W x H): 39 x 63 mm
