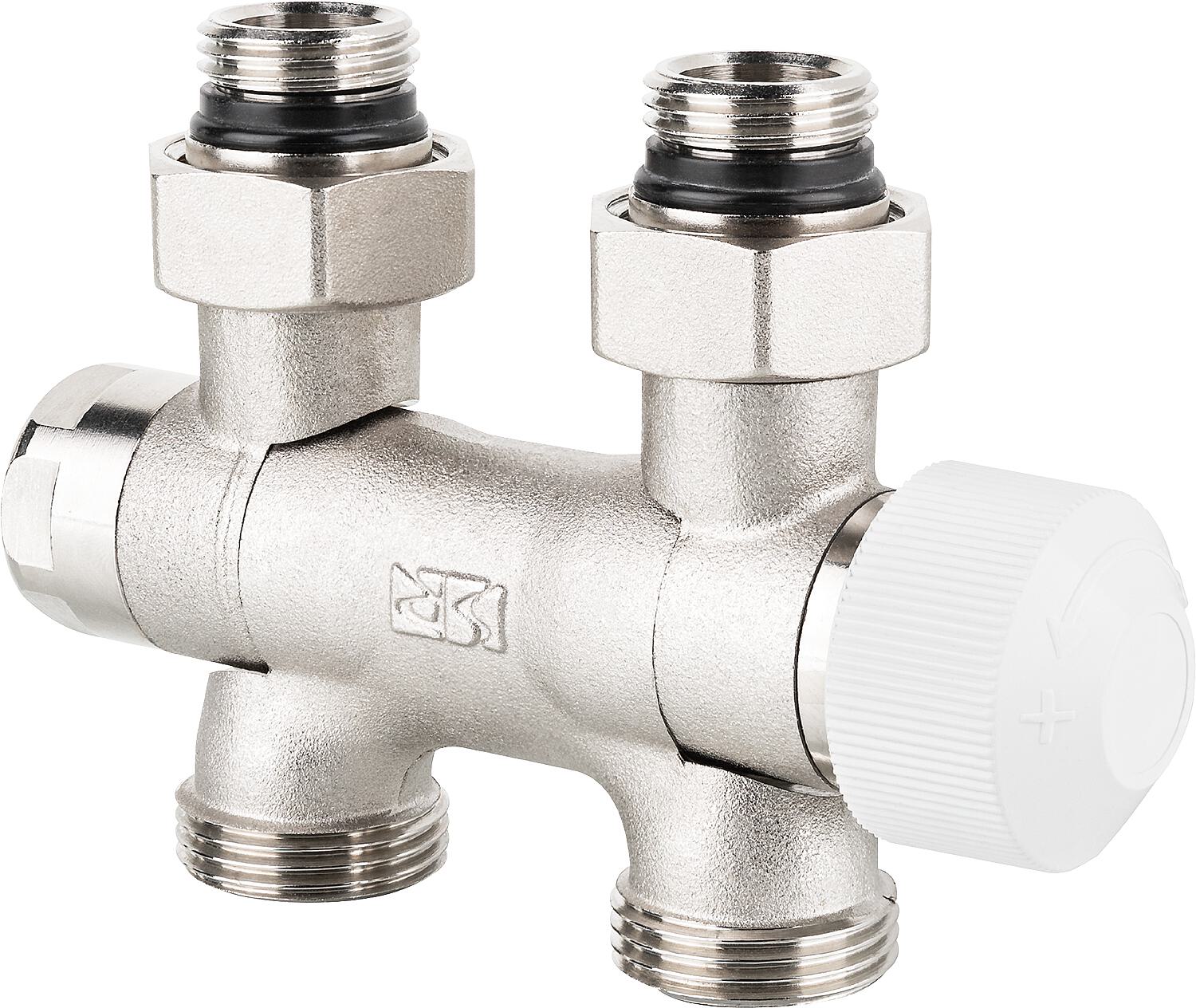

- Suitable for corner or through-hole mounting as it can be swivelled 180° without offsetting the connections.
- For connecting bathroom and designer radiators
- For single and twin pipe operation
- Lockable
- With adjustable bypass valve
- Connection for Th. head: M30 x 1.5
Technical data:
- Maximum operating temperature: 110°C
- Maximum operating pressure: 10 bar
- Fitting material: nickel-plated brass
- Axle spacing: 50 mm
- Piping connection: DN 20 (3/4") Eurocone
- Radiator connection: DN 15 (1/2") female thread or DN 20 (3/4") male thread (Eurocone)
- Operating medium: Heating water according to VDI 2035
- Scope of delivery:
- Valve block
- Self-sealing transition nipple DN 15 (1/2") x DN 20 (3/4")
- Eurocone parts, brass
- Construction protection/regulating cap
| Unit price | CHF/piece |
|---|
