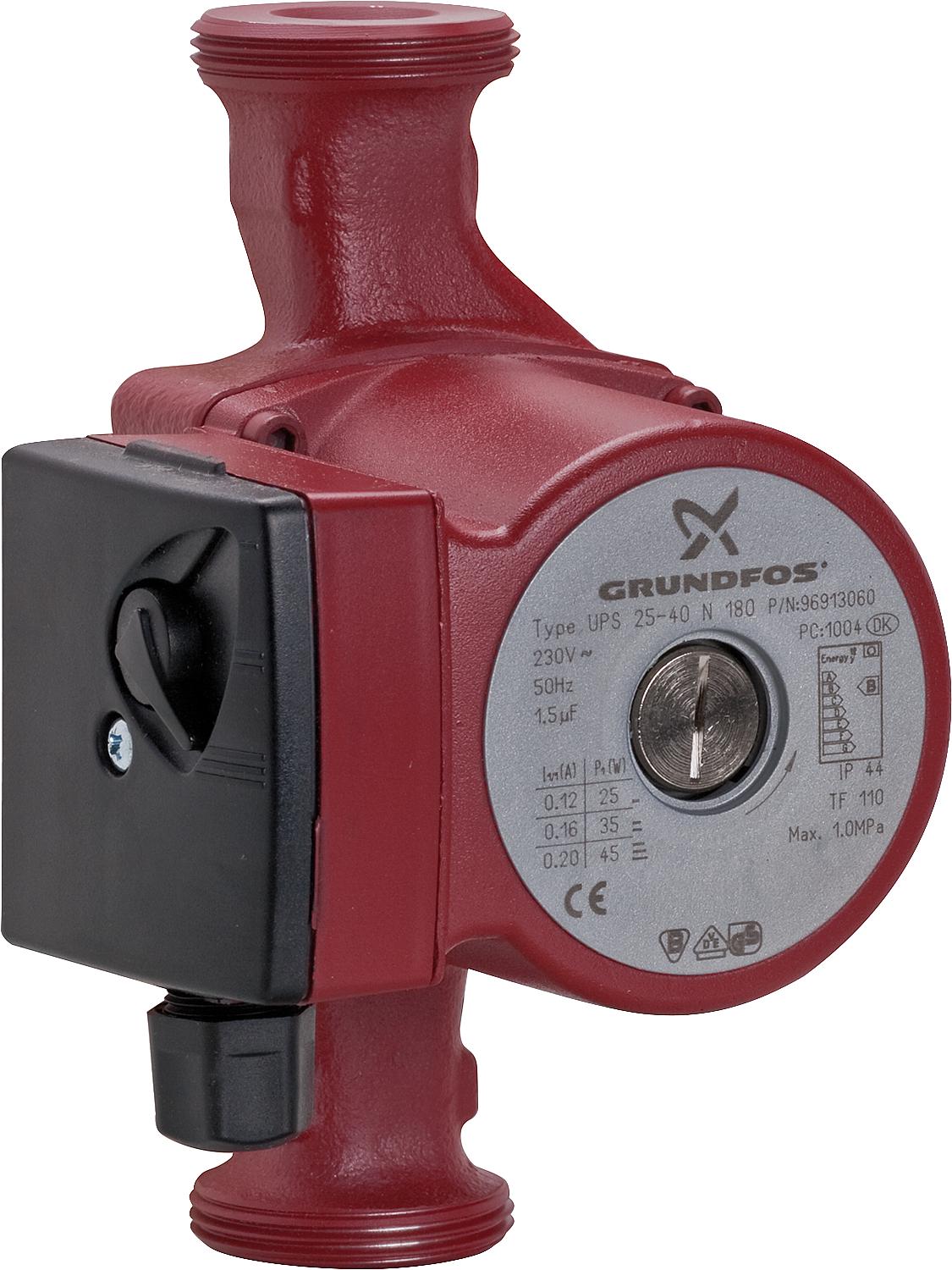

Grundfos UPS 25/40 N 180 mm drinking water circulation pump, stainless steel

The pump is of wet rotor design, i.e.

The pump is characterized by the following features:

• Radial bearing made of ceramic
• Axial bearing made of carbon
• Bearing plate and split tube pot made of stainless steel
• Corrosion-resistant impeller, composite, PES
• Pump housing made of bronze

Technical data:

Temperature class: 110

Certification marks: VDE, GS, B, CE

Protection class: IP44

Materials:

Pump housing material: Bronze

Impeller material: Composite, PES

Installation:

Pumped medium and permissible medium temperature: 2 .. 110 °C

• Max ambient temperature: 80°C

Maximum operating pressure: 10 bar

Pipe connection size: G 1 1/2

Voltage / Volts: 230V/50Hz

Nominal pressure: PN 10

Installation length: 180 mm

Gross weight: 3.1 kg
