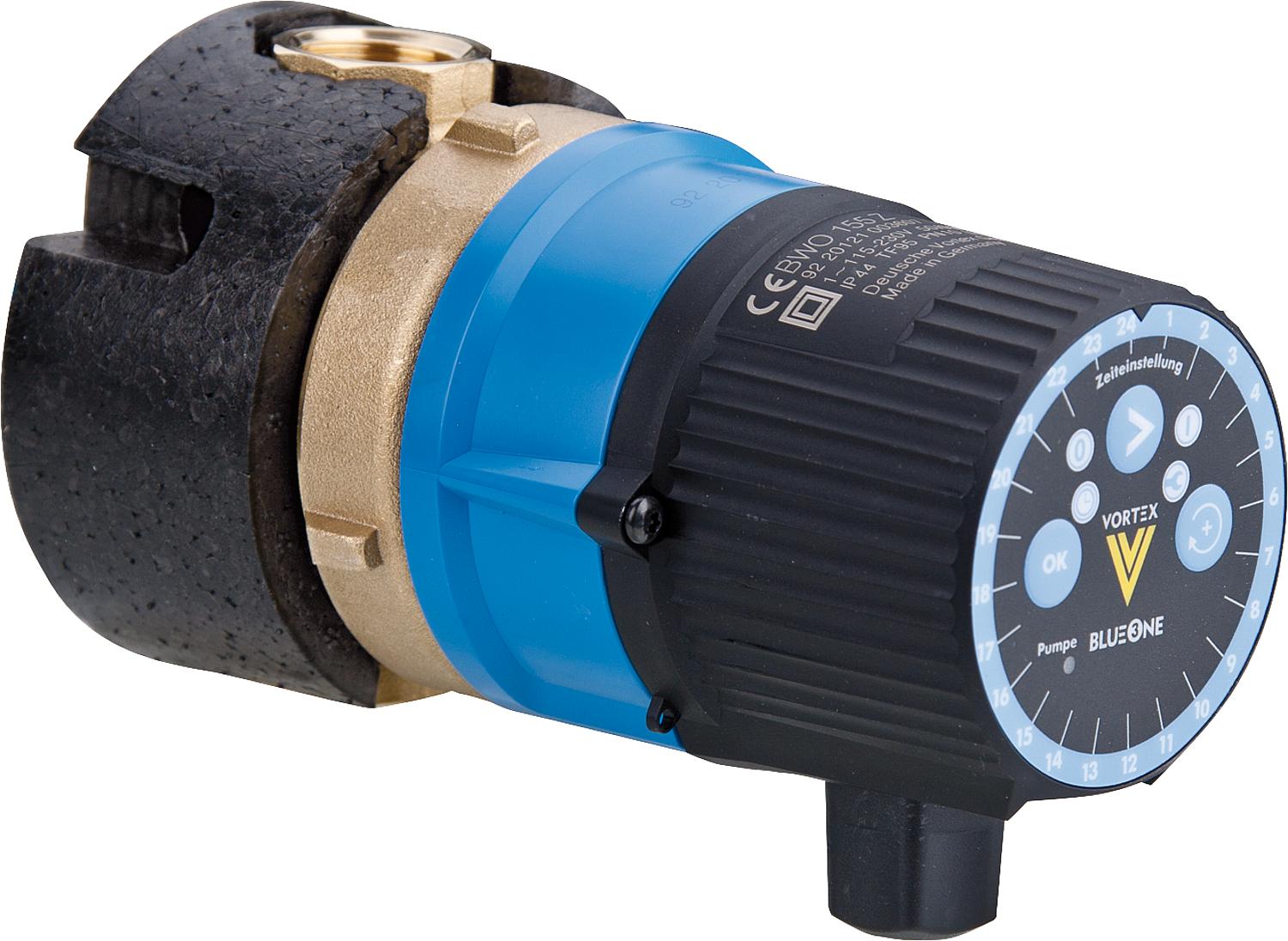

Drinking water circulation pump Vortex BWO 155 RZ with timer

BWO 155 RZ

• with pump housing (connection: DN15 (1/2") female thread)
• A non-return valve (RV 153, pressure side, order no. 93 085 08) or a ball valve (KV 150, suction side, order no. 93 085 09) must be installed separately and are available as accessories.

• Permanent magnet motor with dry-running protection
• Including thermal insulation shell

Technical data:

• Housing material: Brass
• Power consumption: 2.5 to 9 W
• Media temperature: max. 95°C
• Operating pressure: max. 10 bar
• Operating voltage: 230 V, 50 Hz / IP44
• Maximum delivery head: 1.3 mWS
• Flow rate: max. 950 l/h
• Speed ​​range: 2000...3000 rpm (adjustable)

Type key:

"SL" with self-learning module

"Z" with timer (daily program)

"ERT" with control thermostat

“V or R” pump housing variants

with timer
