- Dry construction system for dry and wet screeds with heat-conducting plates for laying distances of 125250375 mm and heating pipe ø 14 mm.
- The dry construction system is particularly suitable for all new and old buildings as well as renovation projects.
The low installation height, minimized weight and optimal heat distribution through the heat-conducting plates offer an extremely flexible system solution.
In this context, flexible also means that this system is equally suitable for dry screeds and wet areas.
The easy handling of the system components and quick and easy assembly enable commissioning in the shortest possible time.

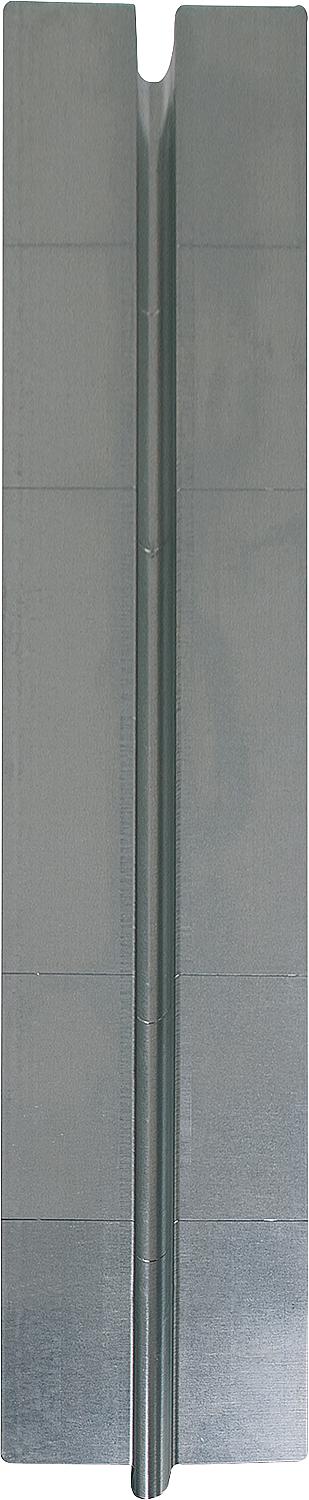

- For profiled sheet
- For even heat distribution
- Made of 0.5 mm galvanized steel sheet
- With integrated predetermined breaking points 200/75 mm
- For use with heating pipe 14 x 2 mm
- Dimensions: 750 x 118 mm
- Packaging unit = 50 pieces (total 37.5 m)
- Material requirements per m² of laying area with a laying distance of 125, 250, or 375 mm
- Profile sheet: 1 m²
- PE cover film (0.2 mm): 1.1 m²
- Edge insulation strip: 1 m
- Heat-conducting plate:
- Laying distance 125 mm: 7.5 m (10 pieces)
- Laying distance 250 mm: 3.75 m (5 pieces)
- Installation spacing 375 mm: 2.25 m (3 pieces)
- Heating pipe (ø 14 mm):
- Laying distance 125 mm: 8 m
- Laying distance 250 mm: 4 m
- Laying distance 375 mm: 2.7 m
