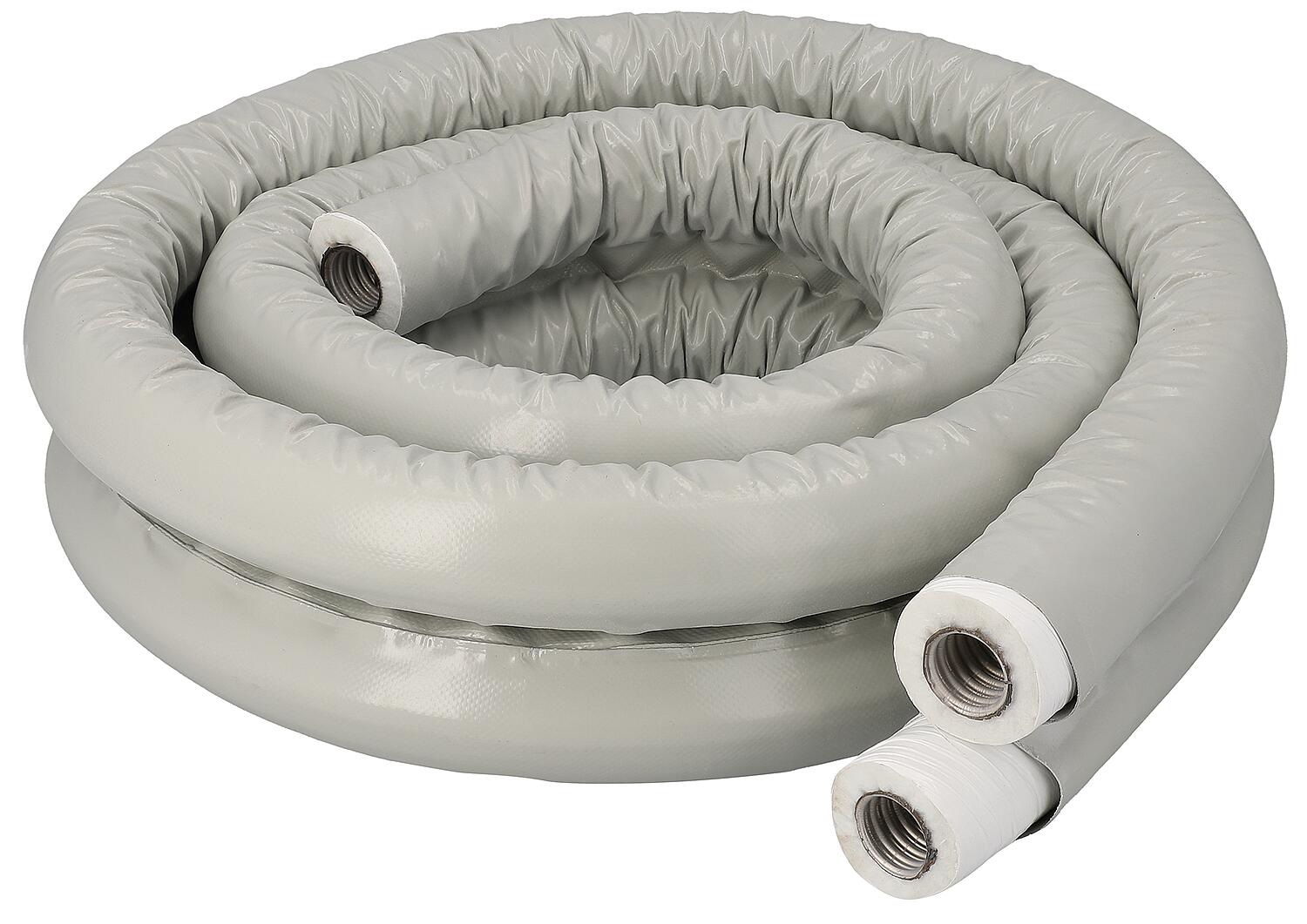

TWS Twinway Set SPLIT corrugated hose DN25 or LK (Nano 11 mm PE) 3m.

• Flexible stainless steel corrugated pipe with the latest generation of nano-insulation
• Nano aerogel insulation with extremely low thermal coefficient (λ = 0.0175 W/(m·K) at an average temperature of 10°C according to EN 12667:2002)
• 100% insulated according to GEG
• For monobloc heat pumps
• For use outside or inside buildings

Technical data:

• Corrugated pipe material: Stainless steel 1.4404 (AISI 316L)
• Insulation material: Nano aerogel with PVC protective coating, UV resistant
• Insulation thickness: DN 25 = 11 mm, DN 32 = 13 mm
• Thermal conductivity of insulation: 0.0175 W/mK
• Operating pressure: 2.5 bar
• Operating temperature (pipe / insulation): max. 150°C / 675°C

• 11 mm Nano Insulation
