• For filling, transferring, siphoning or dosing liquids such as: glycol, diesel, oils, coolant, water and water mixtures
• Height adjustment: via sliding sealing cone
Technical data:
• Pump body: ø 25 mm
• Length: 400 mm
• Lifting height: approx. 270 mm
• Stroke volume: approx. 50 ml/stroke
• Pump: Aluminum
• Pressure connection: 1/4" SAE with adapter to DN20 (3/4")
• Pressure: up to approx. 30 bar
• Dimensions L x W x H: 400 x 300 x 70 mm

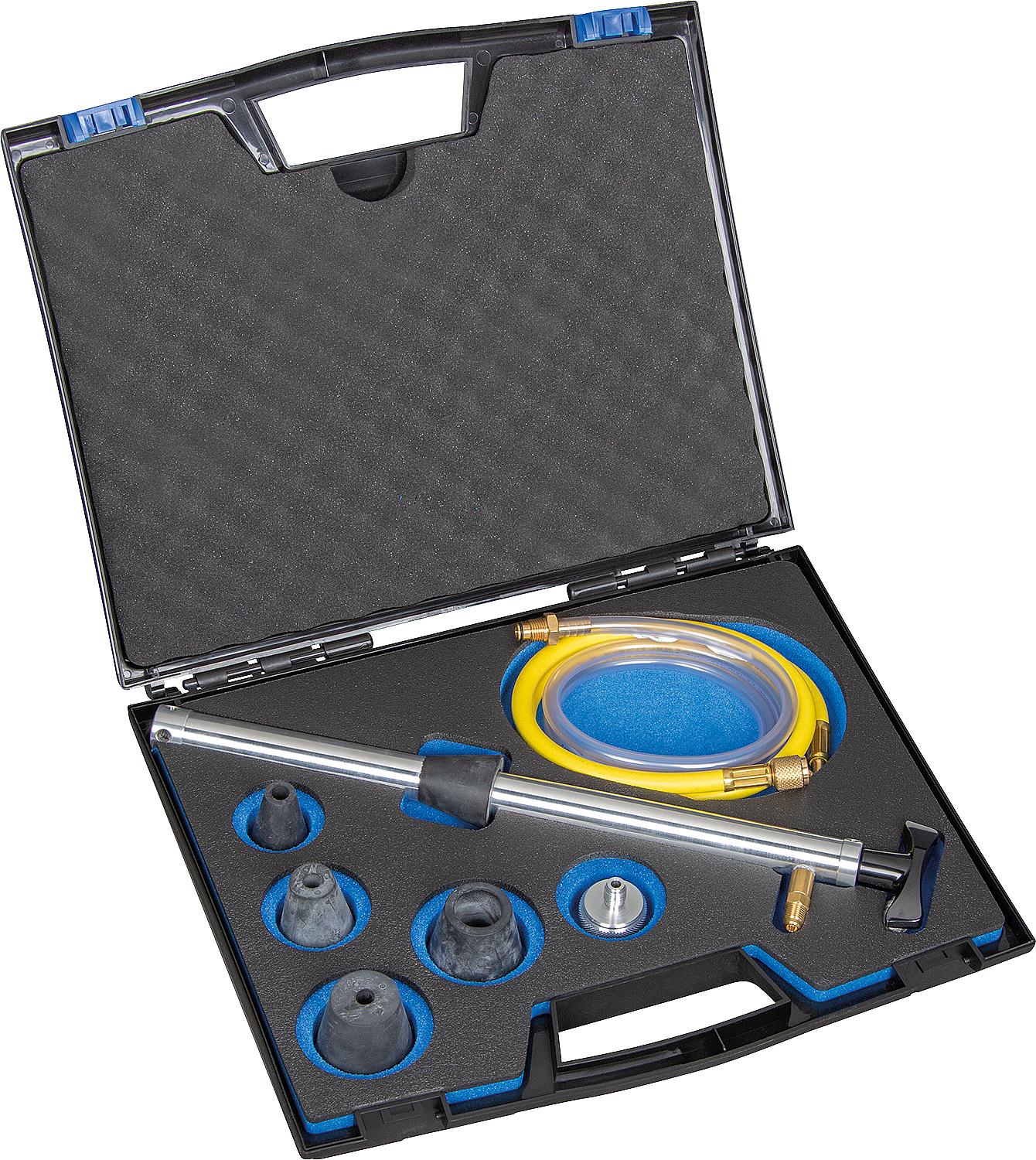

Scope of delivery:
• Pump
• 2 x rubber cones for attaching the pump to container openings with a diameter of 35-50 mm
• 3 x rubber cones for attaching suction hoses to container openings with ø 15-50 mm
• Flexible fabric hose (yellow) on the pressure side
- Length: 900 mm
- Connection: 2 x 1/4" SAE
• Transparent PVC hose 7 x 1.5
- Length: 1000 mm
- Connection: G 1/4" A with Perbunan O-ring
• Adapter SAE 1/4" x DN20 (3/4") IT
• Black plastic case
| Unit price | CHF/set |
|---|
