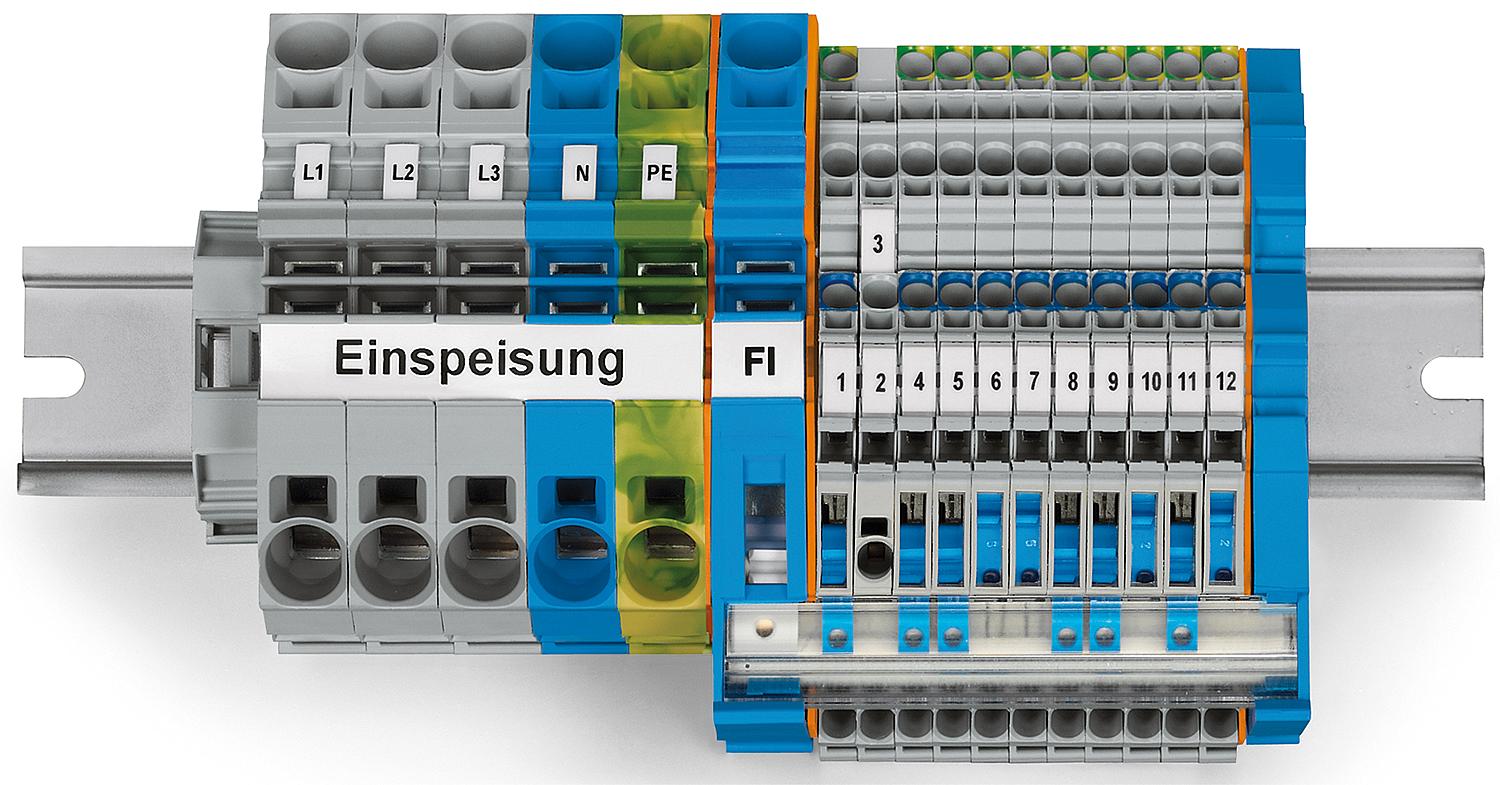

Wago TOPJOP-S sub-distribution set

Wago TOPJOP-S sub-distribution set

Bewertungen
CHF 65.90
CHF 65.90
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
WAGO®
62 001 89
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For sub-distribution with a residual current circuit breaker (RCCB). Includes all necessary components for wiring a power supply and connecting 9 RCCBs. Distribution of the RCCB potential via 1 N busbar 10 x 3 mm.
  • Separation of the N potentials for insulation resistance measurement via disconnect slide in the installation floor terminal and 1 three-phase circuit.
  • Scope of delivery:
  • 10 x installation level terminals NT/L/PE, 4 mm2
  • 1 x installation level clamp L/L, 4 mm2
  • 1 x end plate and intermediate plate
  • 3 x 2-conductor distribution feed-in terminal, grey, 16 mm²
  • 1 x 2-conductor distribution feed-in terminal, blue, 16 mm²
  • 1 x 2-conductor distribution feed-in terminal, green/yellow, 16 mm²
  • 1 x end plate and intermediate plate
  • 1 x 1-conductor disconnect terminal, blue, 16 mm²
  • 1 x end plate and intermediate plate
  • 1 x end clamp, 10 mm wide
  • 1 x busbar support with end clamp function
  • 1 x bus bar, tinned 0.2 m
  • 1 x busbar cover, transparent 0.2 m
  • 1 x labeling strip, white, 0.5 m
  • 1 x WMB labeling card 1 ... 50
  • 1 x WMB labeling card L1, L2 ... N, PE
  • 1 x smudge-proof fiber-tip pen
Brand WAGO®
Manufacturer part number 821-104
Unit price CHF/set
EAN 4045454229849
