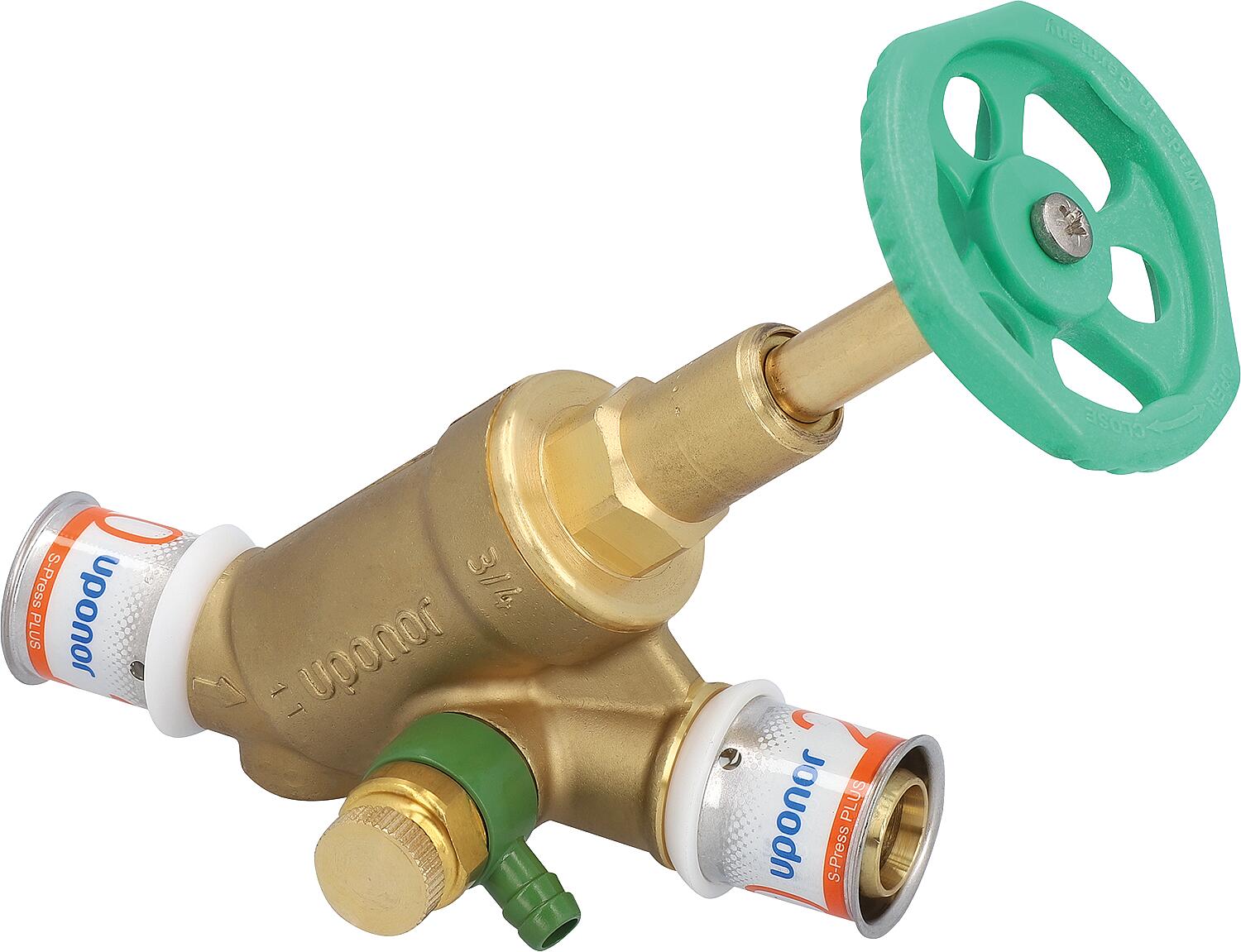

Uponor S-Press PLUS angle seat valve DN20 (3/4")

• A system for the plumbing and heating sector
• Maximum drinking water temperature: 70°C / Maximum pressure: 10 bar
• Maximum temperature for heating water: 80°C / Maximum pressure: 10 bar
• System approval with Uni Pipe Plus/MLC pipes
• No deburring or calibration necessary up to ø 32 mm.
• Leaky when unpressed
• DVGW certified
• Body material:

– PPSU plastic

– Tin-plated brass (dezincification-resistant)

• Stainless steel crimp sleeve with viewing window
• Press contour KSP0 / UPP1

• With increasing spindle
• Dead space free
• Drain valve DN 8 (1/4")
• Made of brass
