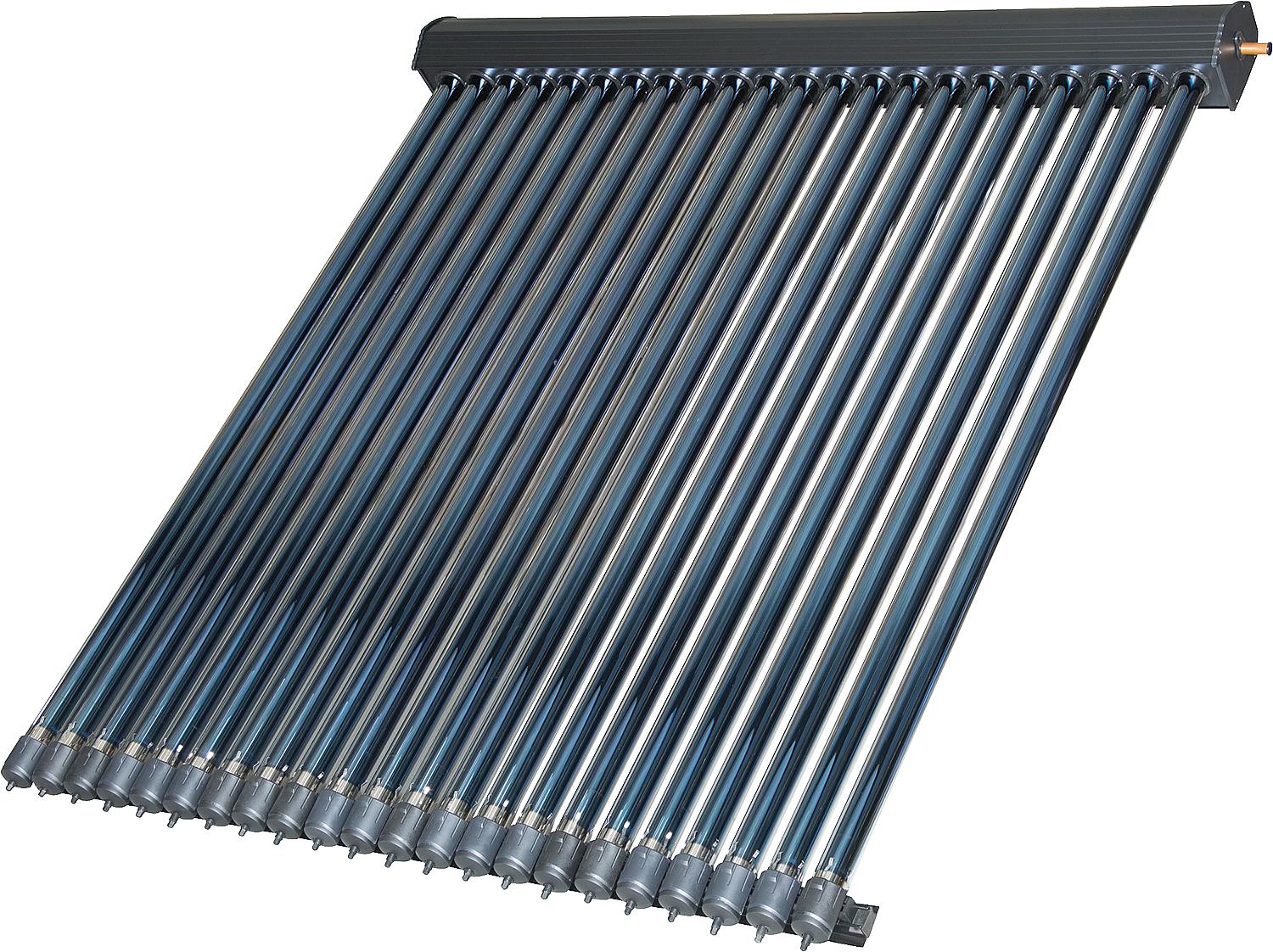

• Tubes made of 2 mm borosilicate silicon glass with a highly selective copper layer
• Copper manifolds with mineral wool insulation and black aluminum housing
• Collector not pre-assembled
• Includes 3 x support rails
• Collector connection and roof hook not included in the scope of delivery
Technical data:
• Absorption/emission factor: >0.94 / <0.8
• Heat transfer medium: Propylene glycol-water
• Collector pipes: 22 x 1 mm
• Vacuum tube diameter: 58 mm
• Connections: 22 mm
• Insulation of manifolds: mineral wool
• Pressure/Temperature: max. 10 bar, test pressure 15 bar / 214.7°C
• Collector efficiency: 93.7%
• Permissible collector tilt: 15 – 50°
• Number of vacuum tubes: 30
• Absorber area: 2.28 m²
• Flow rate per collector: 2.5 l/min.
Collector Identification:
• Manufacturer: SUNEX SA
• Type: HP series
• Reg. No.: 011-7S2651 R
| Dimensions L x W x H [mm] | 1990 x 2455 x 182 |
|---|---|
| Unit price | CHF/piece |
| Weight [kg] | 105.4 |
| Gross/net area [m²] | 4.89 / 3.68 |
| Type | HP 30 |
