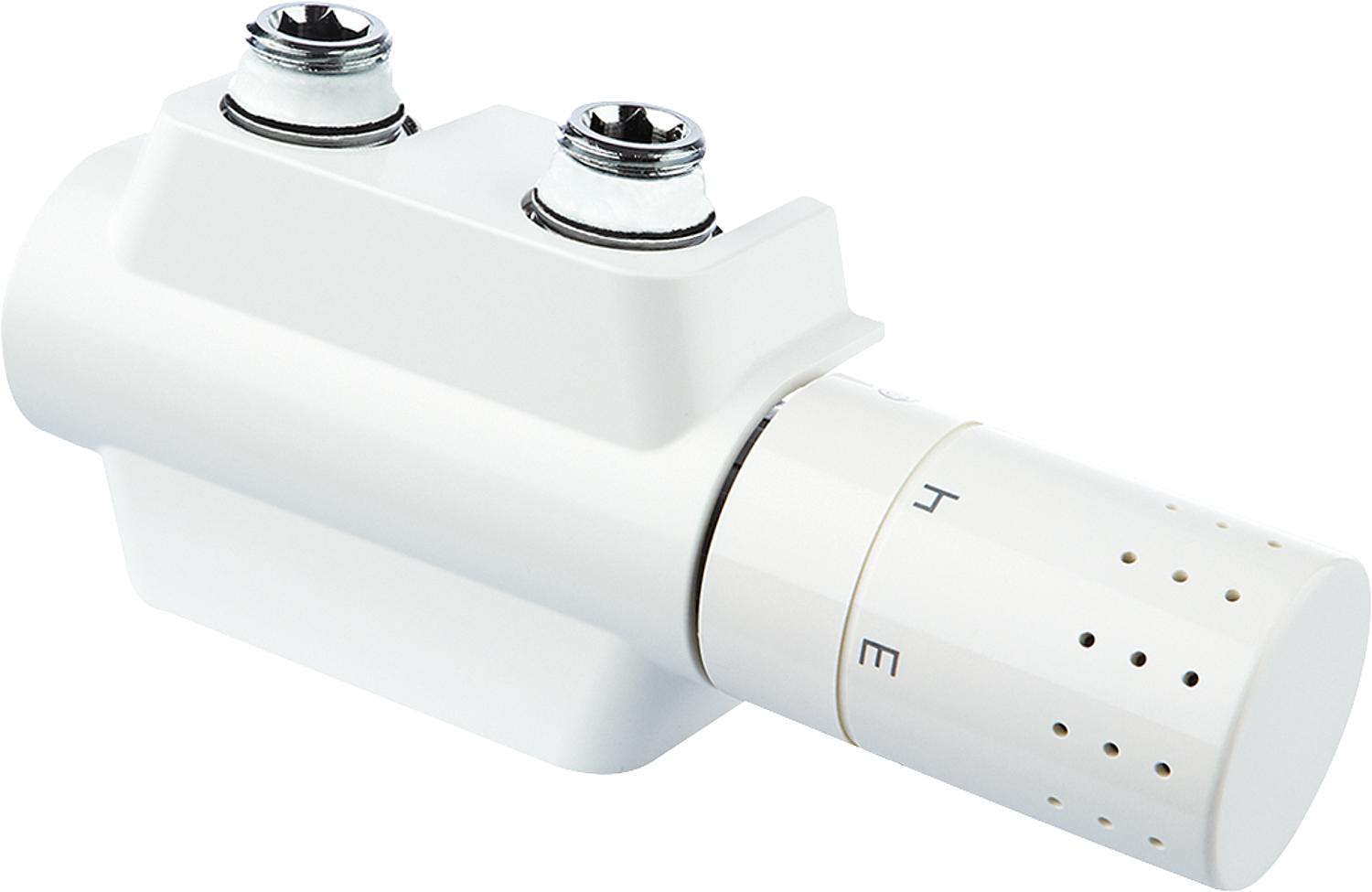

Simplex Variodesign valve block, for single-pipe and two-pipe systems, white

• Suitable for installation as a corner or through-passage configuration
• Convertible for right or left-hand connection
• Integrated fill and drain valve for hose fittings
• Lockable
• Valve insert with presetting
• Connection for thermostat head: M30 x 1.5

Technical data:

• Maximum operating temperature: 110°C
• Maximum operating pressure: 10 bar
• Fitting material: nickel-plated brass
• Cover material: Plastic
• Axle spacing: 50 mm
• Piping connection: DN 20 (3/4") Eurocone
• Radiator connection: DN 15 (1/2") male thread
• Operating medium: Heating water according to VDI 2035
• Scope of delivery:
• Valve block
• Thermostat head
• cover
• Transitions DN 20 (3/4") male thread x DN 15 (1/2") male thread
• End caps DN 20 (3/4")

• Version for single-pipe heating systems with bypass regulation
