• Hardened locking pins
• One-sided locking
• Perbunan seal
• Can be used in conjunction with steel nipples on pneumatic tools
• Low-pressure series NW 7.2 = 40mm2
Materials:
• Threaded piece: MS 58
• Valve body: MS 58
• Release sleeve: MS 58
• Valve: MS 58
• Connector: MS 58
• Springs: stainless steel, material no.: 1.4310
• Locking pins: stainless steel, material no.: 1.4034, hardened to 54 HRC
• Temperature range: -20°C to +100°C
• Operating pressure: 0–35 bar and rough vacuum

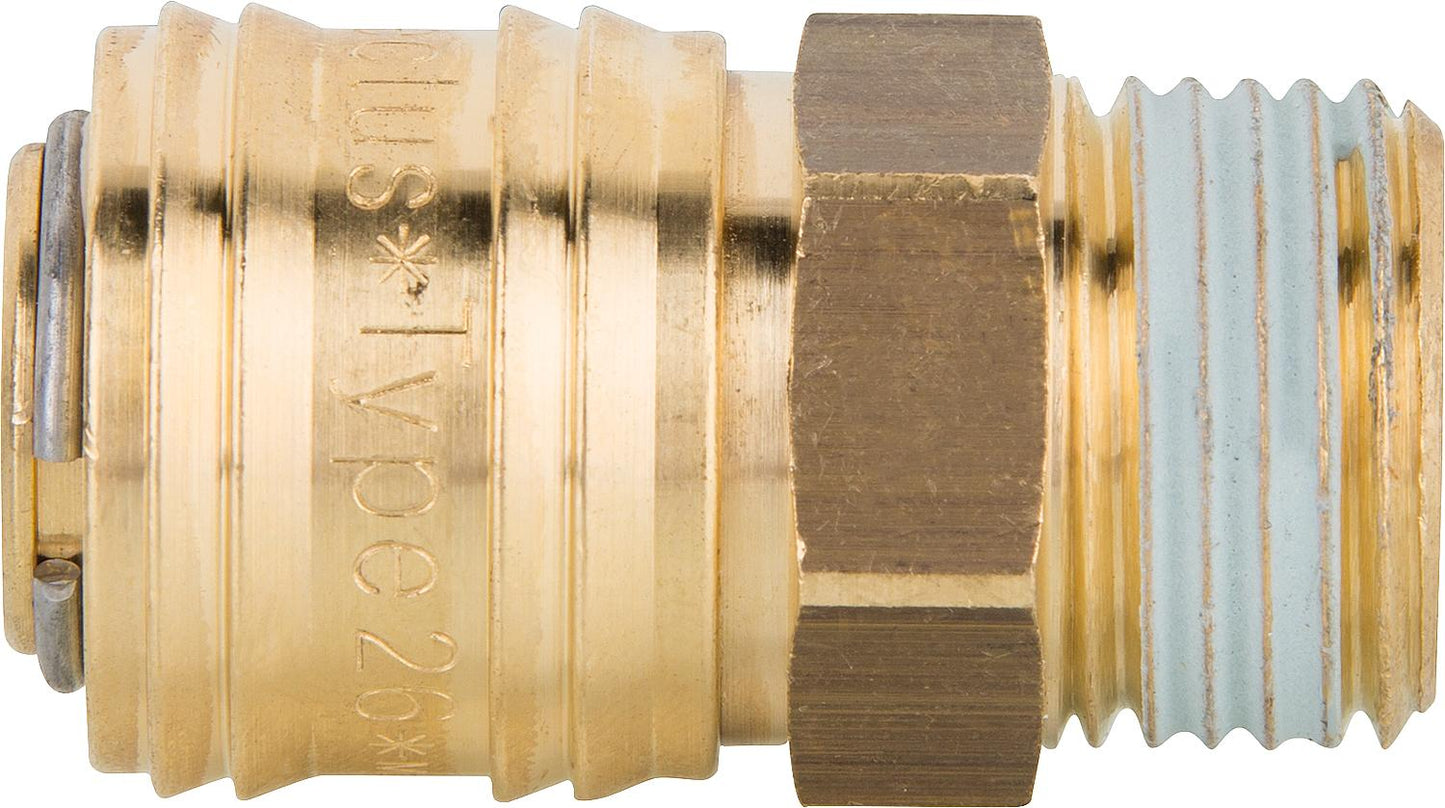

*with pre-coated thread sealant
*With pre-coated thread sealant
| L1 [mm] | 9 |
|---|---|
| Connection | DN 6 (G 1/8") |
| Unit price | CHF/piece |
| D [mm] | 25 |
| SW [mm] | 22 |
| L [mm] | 43 |
