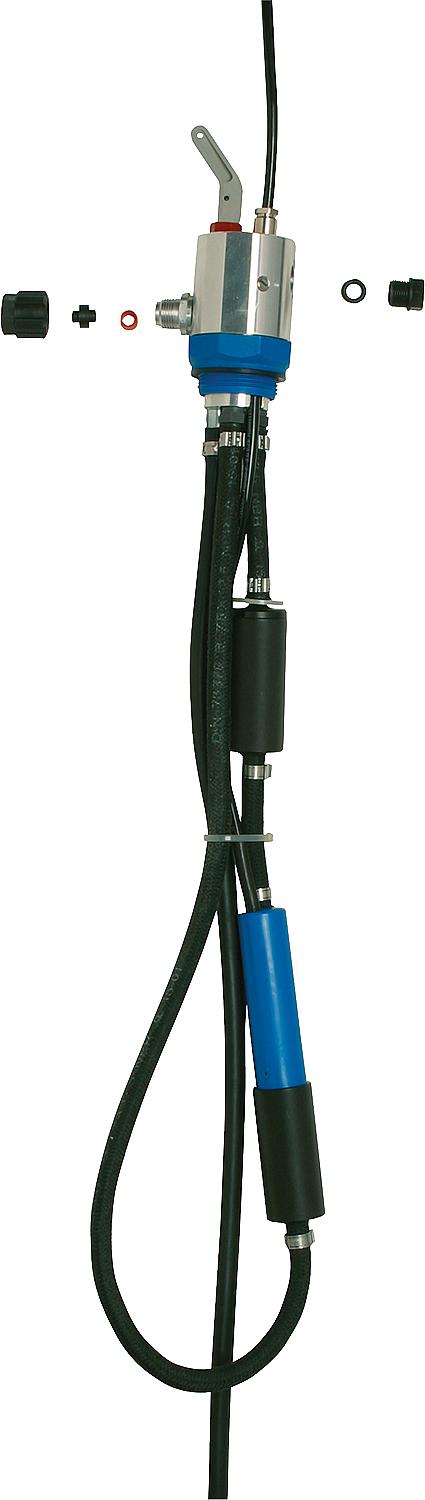

Supply system WK 8 with automatic vent

Supply system WK 8 with automatic vent

Bewertungen
CHF 397.95
CHF 397.95
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
OILPRESS KELLER®
31 003 19
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For parallel connection with oil condensing boilers and oil-fired water heaters in floor-standing or wall-mounted versions.
  • For communicating and non-communicating systems
  • TÜV-tested according to DIN EN 125142
  • Approved for parallel operation (not for continuous operation)
  • Power supply: 230 V 8 W ~ 50 Hz
  • Protection class: IP 66
  • Maximum delivery head: 18 m
  • Flow rate: approx. 7 l/h at 12 m
  • Back pressure: approx. 2.5 bar
  • Weight: approx. 2.2 kg
  • Dimensions: ø 70 mm, Length: 980 mm
  • Delivery includes accessory kit. Limit switch can be integrated.

  • Easy assembly:
  • The basic extraction unit of the heating oil tank is replaced by the WK 8 supply system.
  • The limit switch is integrated into the WK 8 supply system.
Brand OILPRESS KELLER®
Manufacturer part number 590.912
Unit price CHF/piece
EAN 4029019590919
