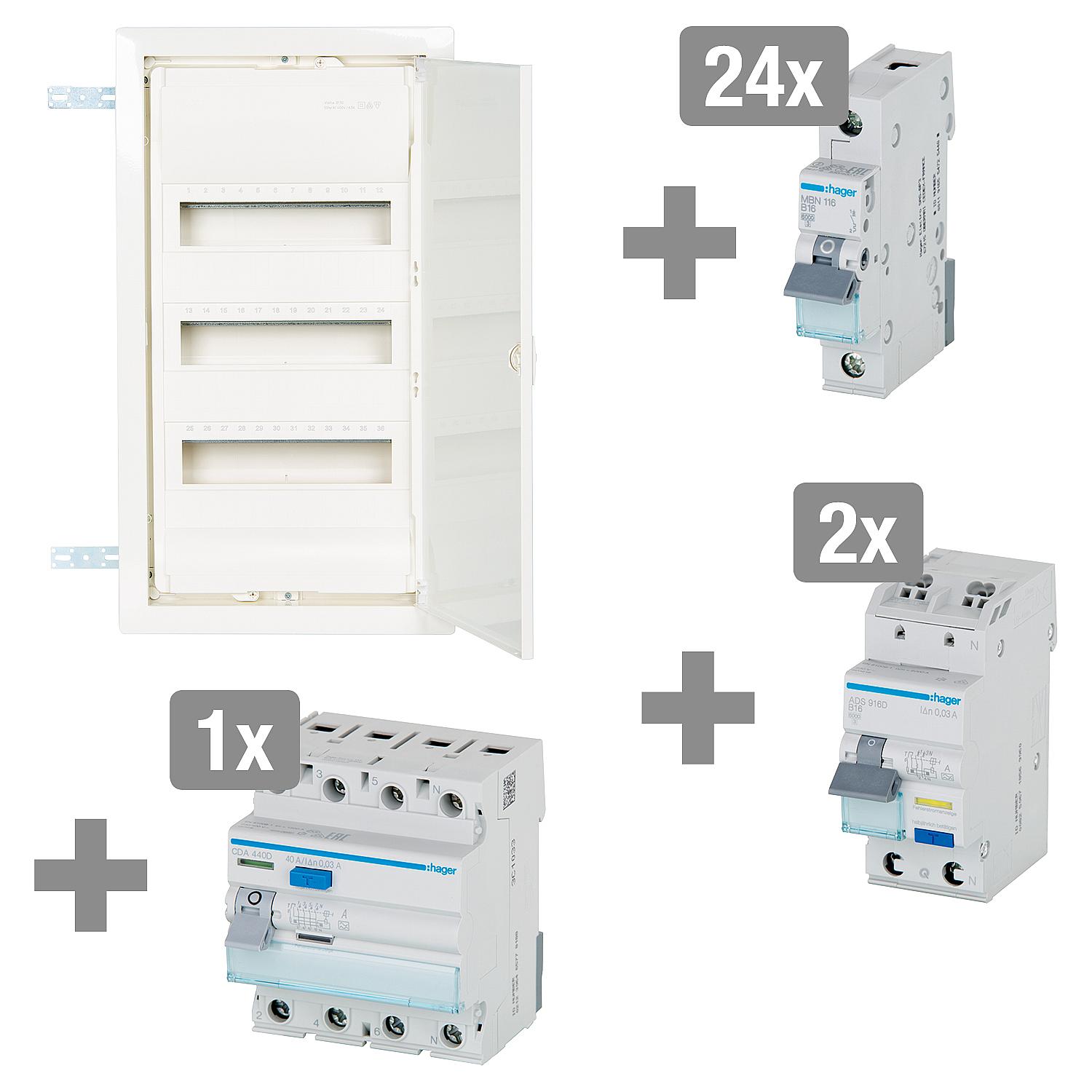

Hager 28-piece distribution package

1x flush-mounted distribution box

• Protection class: IP30, VDE, up to 63 A
• Number of modules: 36
• Equipment carrier/door made of galvanized sheet steel
• Device cover, plastic, with 46 mm device slot
• Snap-on fastening with integrated spirit level
• Including terminal block for RCD circuits
• Colour: white, RAL 9010
• Maximum device installation depth: 70 mm
• Dimensions (H x W x D): 630 x 348 x 94.5 mm

• 24 x MCB MBN116
• 1-pole
• 6 kA short-circuit breaking capacity
• Voltage: 230/400 V
• Rated current: 16 A
• Trigger characteristic: B

• 2 x RCBOs ADS916D
• 2-pole
• 6 kA short-circuit breaking capacity
• Voltage: 230/400 V
• Rated current: 16 A
• Rated residual current: 30 mA
• Trigger characteristic: B
• Unit of division: 2

• 1 x RCD CDA440D
• 4-pin
• Rated residual current: 30 mA
• Voltage: 230/400 V
• Rated current: 40 A
• Impact voltage resistance: 4 kV
• Unit of division: 4
• Insulation voltage: 500 V
