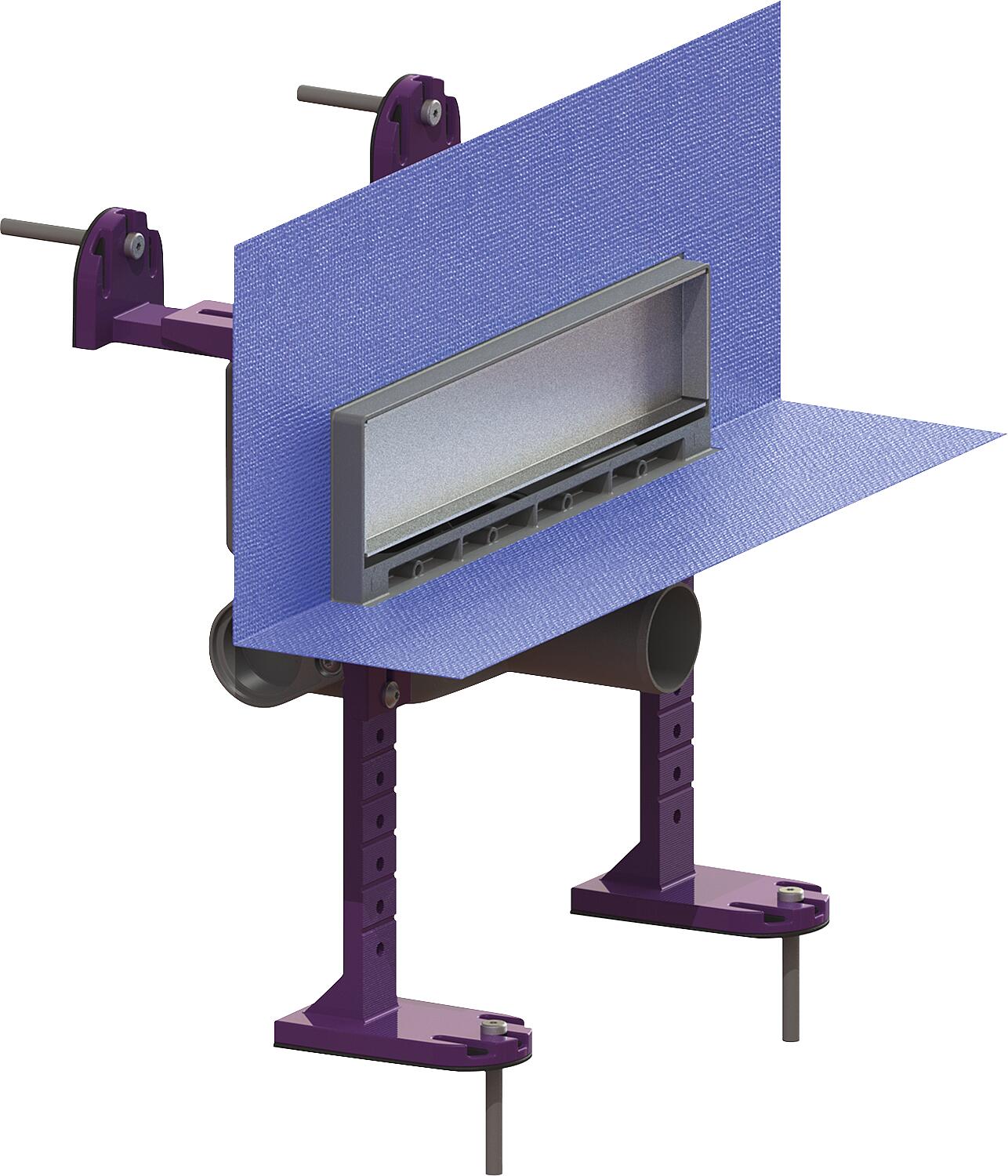

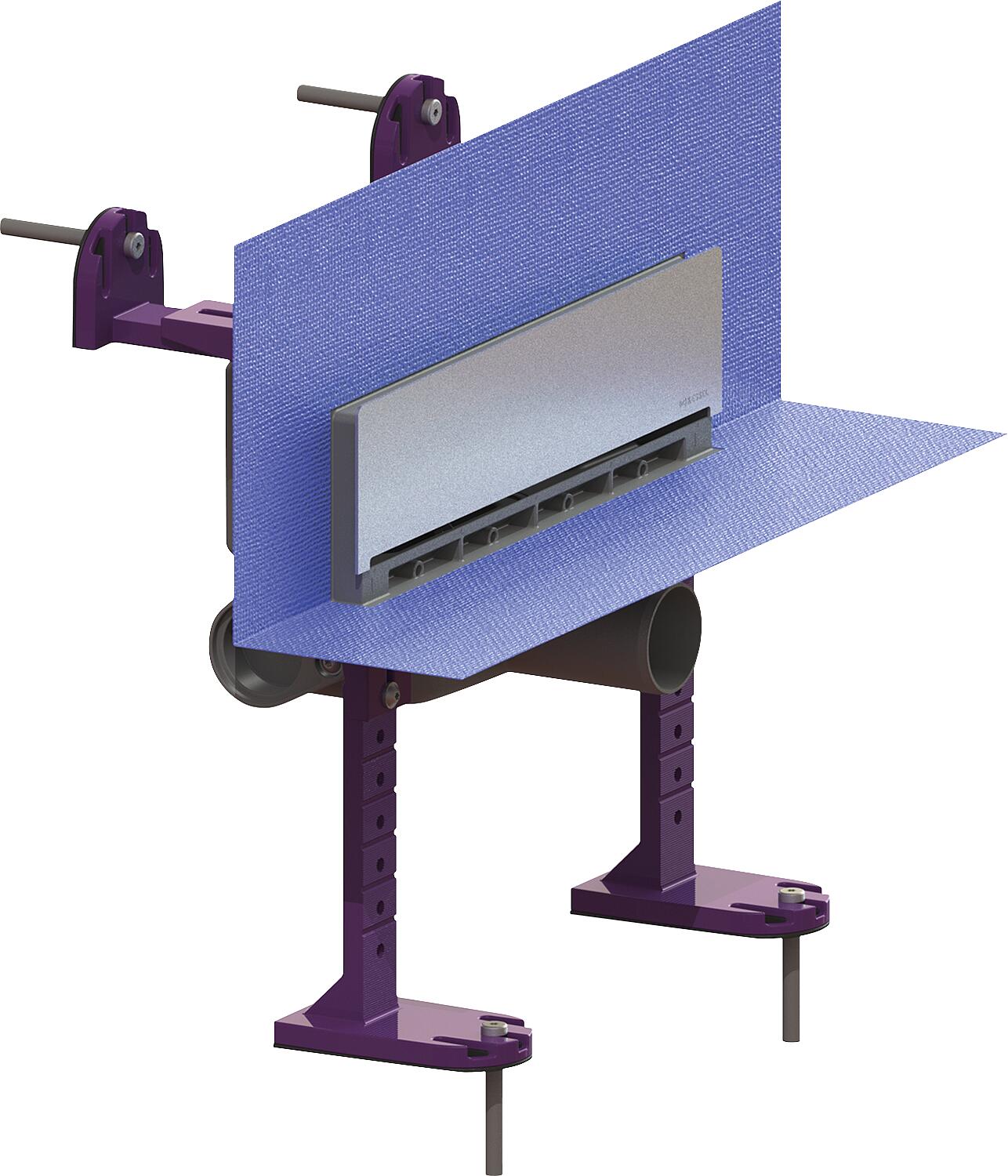

Wandablauf Scada mit Abdeckung Edelstahl, DN50, Dichtflansch

• For composite waterproofing of floor-level tiled shower areas
• With pre-installed sealing fleece

Technical data:
• Connection option
- Front
- Lateral (Left/Right)
• Water seal height: 22 mm
• Flow rate: 0.5 l/s
• Connection: DN 50
• For tile constructions on floors of 15 mm
• For tile constructions on walls of 15 mm
• Height adjustable in increments between 65 mm and 200 mm
• For mortising into the wall, or mounting in the facing masonry
