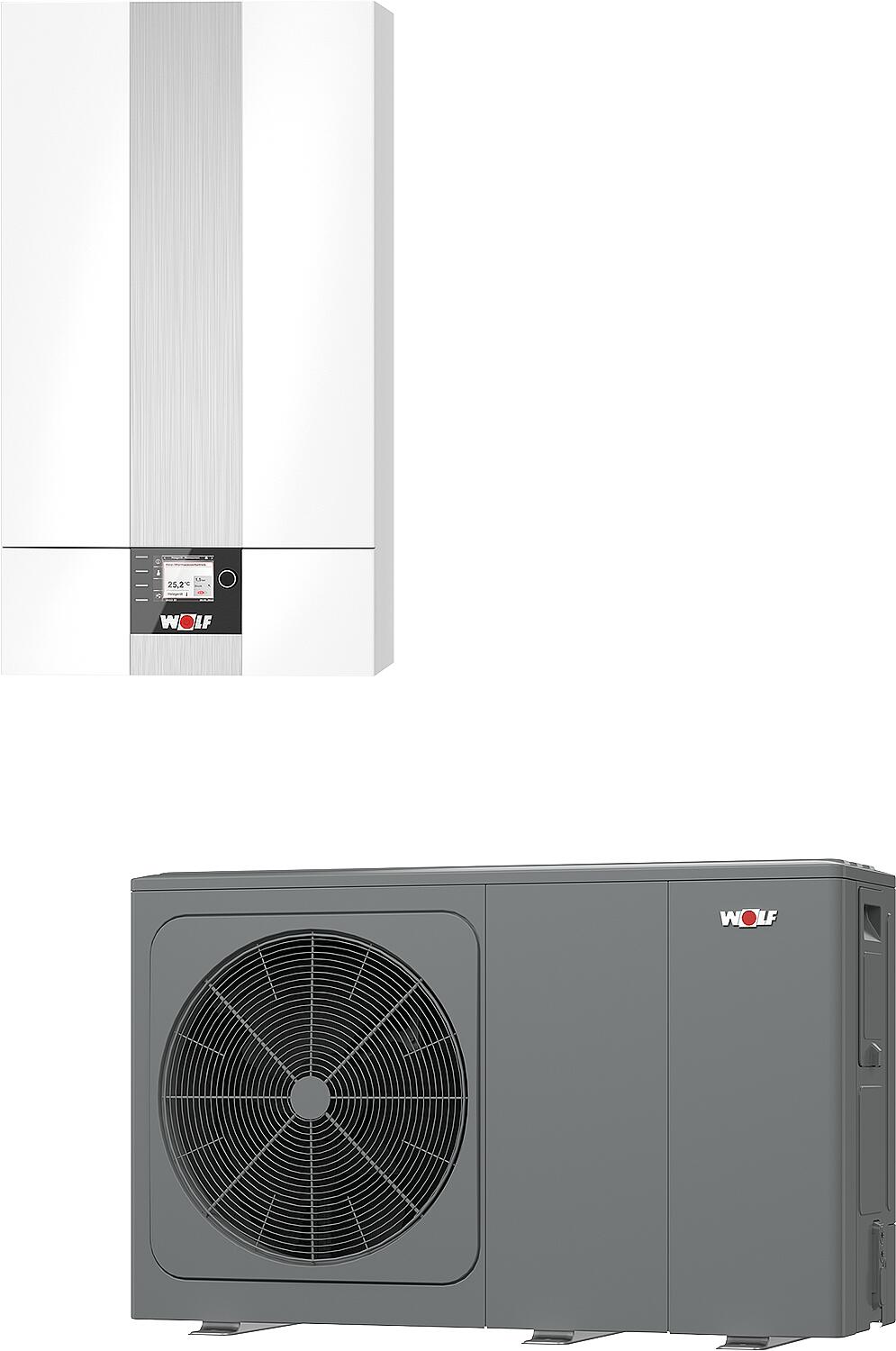

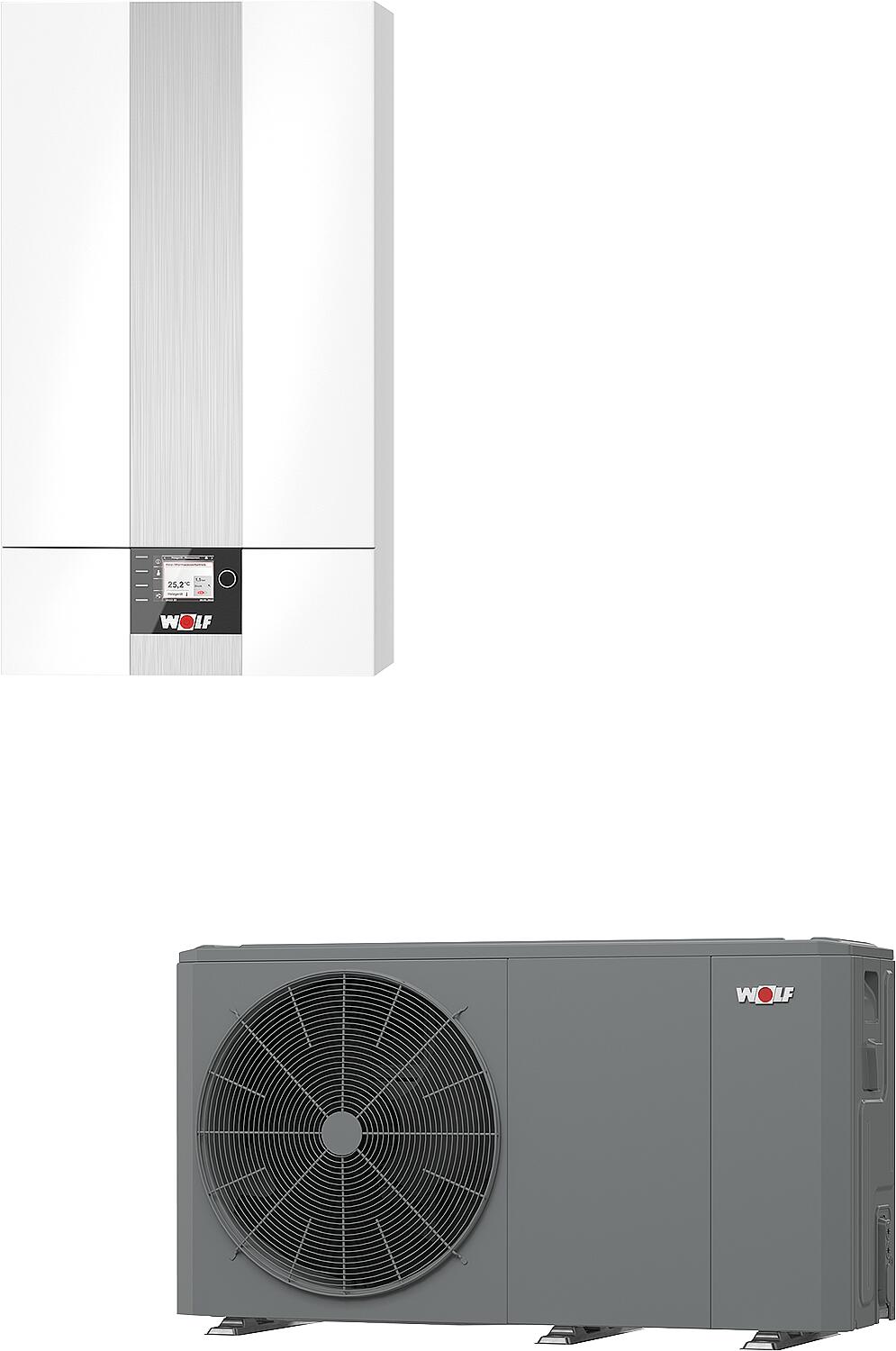

Wolf FHA-Monoblock 05/06 (R 32) heat pump, 230V, 9148031

Wolf FHA-Monoblock 05/06 (R 32) heat pump, 230V, 9148031

Bewertungen
CHF 1,946.05
CHF 1,946.05
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
WOLF
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Compact, individually usable base unit
  • Heating and cooling operation (inverter technology), as well as hot water preparation
  • 6 kW electric heating element
  • BM2 control module not included in the scope of delivery

Outdoor unit:

  • Environmentally friendly refrigerant R32 for flow temperatures up to max. 6065 °C in pure heat pump operation
  • Robust metal housing with excellent protection against environmental influences
  • Compact design, even in high performance ranges with only one fan

Indoor unit:

  • Heat meter, 3-way diverter valve, water pressure sensor and safety valve already integrated
  • LAN/WLAN interface slot LinkHome
  • Certified according to EHPA and HPKeymark
  • Network connectivity through SGReady

    • Cooling capacity / EER according to EN14511

    • Type FHA 05/06 06/07 08/10 11/14 14/17
    EEK space heating low temperature A+++ to D A+++ A+++ A+++ A+++ A+++
    EEK space heating medium temperature A+++ to D A++ A++ A++ A++ A++
    Heating output / COP according to EN 14511
    at A2/W35 rated power [kW/] 2.9 / 3.54 2.98 / 3.51 4.93 / 4.33 6.76 / 3.54 6.76 / 3.54
    at A7/W35 rated power [kW/] 2.88 / 4.70 3.82 / 5.21 3.60 / 4.87 6.84 / 5.10 6.84 / 5.10
    at A7/W35 rated power [kW/] 4.97 / 3.06 5.49 / 2.76 7.57 / 2.89 11.77 / 2.57 11.77 / 2.57
    at A35/W18 rated power [kW/] 5.2 / 4.9 6.8 / 5.0 9.3 / 4.3
    at A35/W7 rated power [kW/] 3.9 / 3.2 5.1 / 3.3 7.8 / 2.9
    Dimensions of outdoor unit (W x H x D) [mm] 1295 x 718 x 429 1295 x 718 x 429 1385 x 865 x 526 1385 x 865 x 526 1385 x 865 x 526
    Dimensions of indoor unit (W x H x D) [mm] 440 x 790 x 340 440 x 790 x 340 440 x 790 x 340 440 x 790 x 340 440 x 790 x 340
    Weight of outdoor unit/indoor unit [kg] 79 / 27 79 / 27 98 / 27 137 / 27 137 / 27
    Ref.No. 9148031 9148032 9148033 9148036 9148038

    Brand WOLF
    Manufacturer part number 9148038
    Unit price CHF/piece
    Ref. No. 9148038
    Type FHA 14/17
