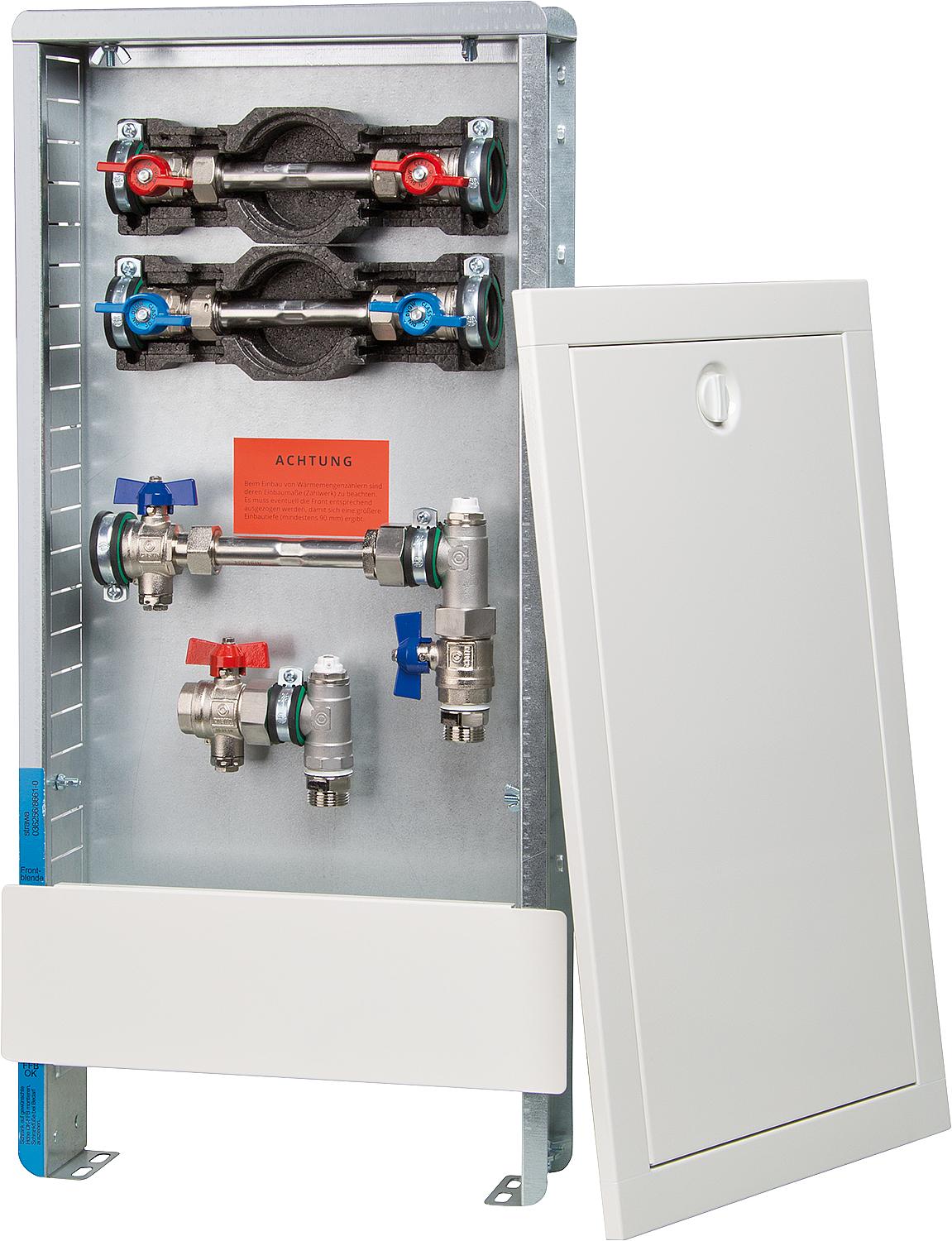

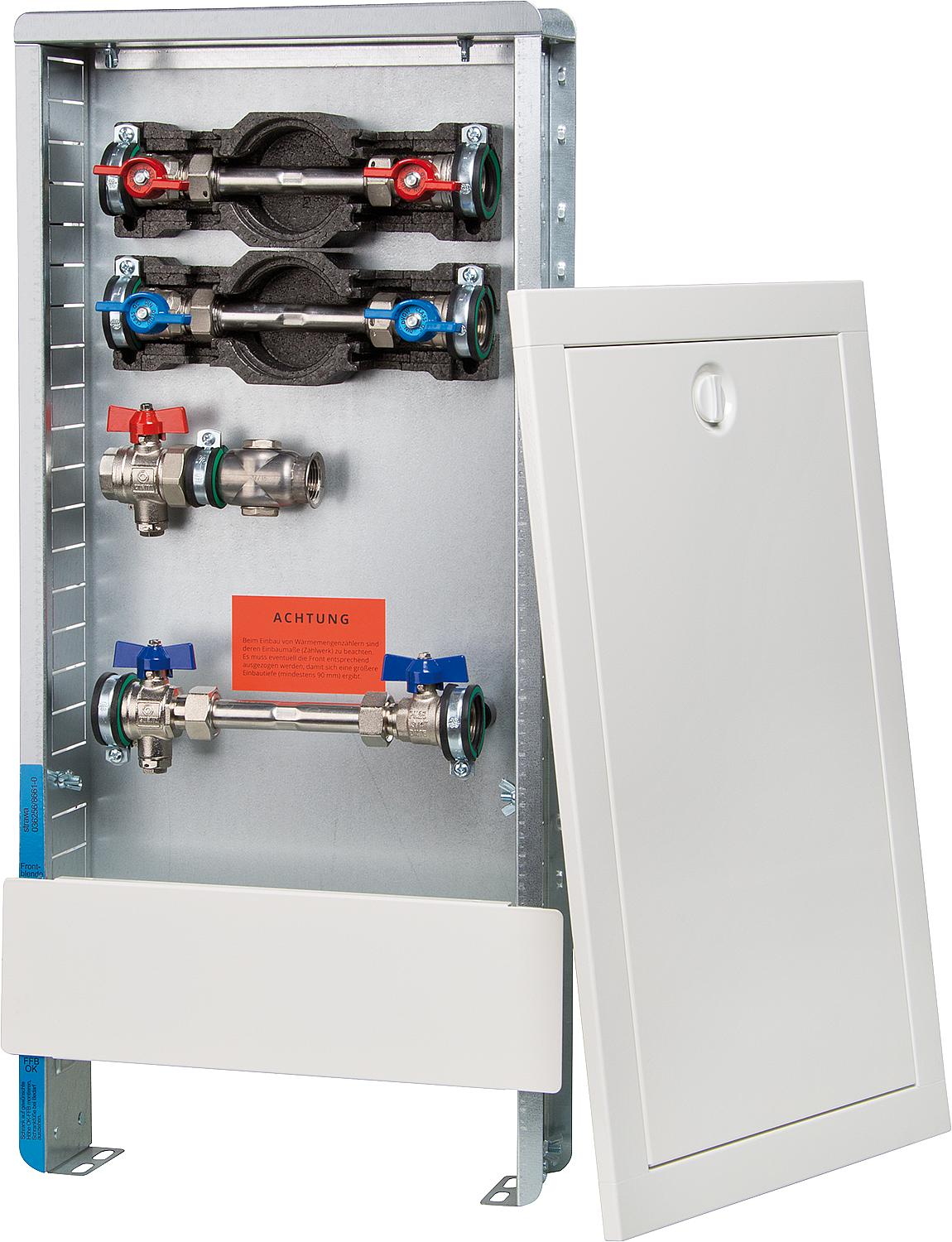

Strawa horizontal heat meter connection station, type AS12h W2-WMZ ST, white, floor-standing cabinet, dimensions 330x710mm

• Completely pre-assembled in the UPS cabinet
• Installation depth: 90 mm 120 mm
• Galvanized, front panel white RAL 9010

Return:

1x DN 20 (3/4") flushing pipe 110 mm, 2x DN 20 (3/4") ball valves (for secondary vertical connection 1x DN 12 (3/8") air plug)

Lead time:

• 1x DN 20 (3/4") ball valve, 1x T-piece for

DN 12 (3/8") immersion sleeve (for secondary vertical connection, 1x DN 12 (3/8") air plug)

• Cabinet dimensions (W x H): 330 x 710 mm
• Water/heat meter connection station DN 20 (¾")
• For connecting two DN15 water meters and one DN15 heat meter:
• Water:
• 4 x DN 20 (3/4") DVGW ball valves with water meter installation sections for cold and hot water
• 110 mm, including EPPI insulation, in accordance with EnEV
• Heating: Primary connection: DN 20 (3/4") female thread, horizontal

Secondary connection: DN 20 (3/4") internal thread

horizontal or vertical
