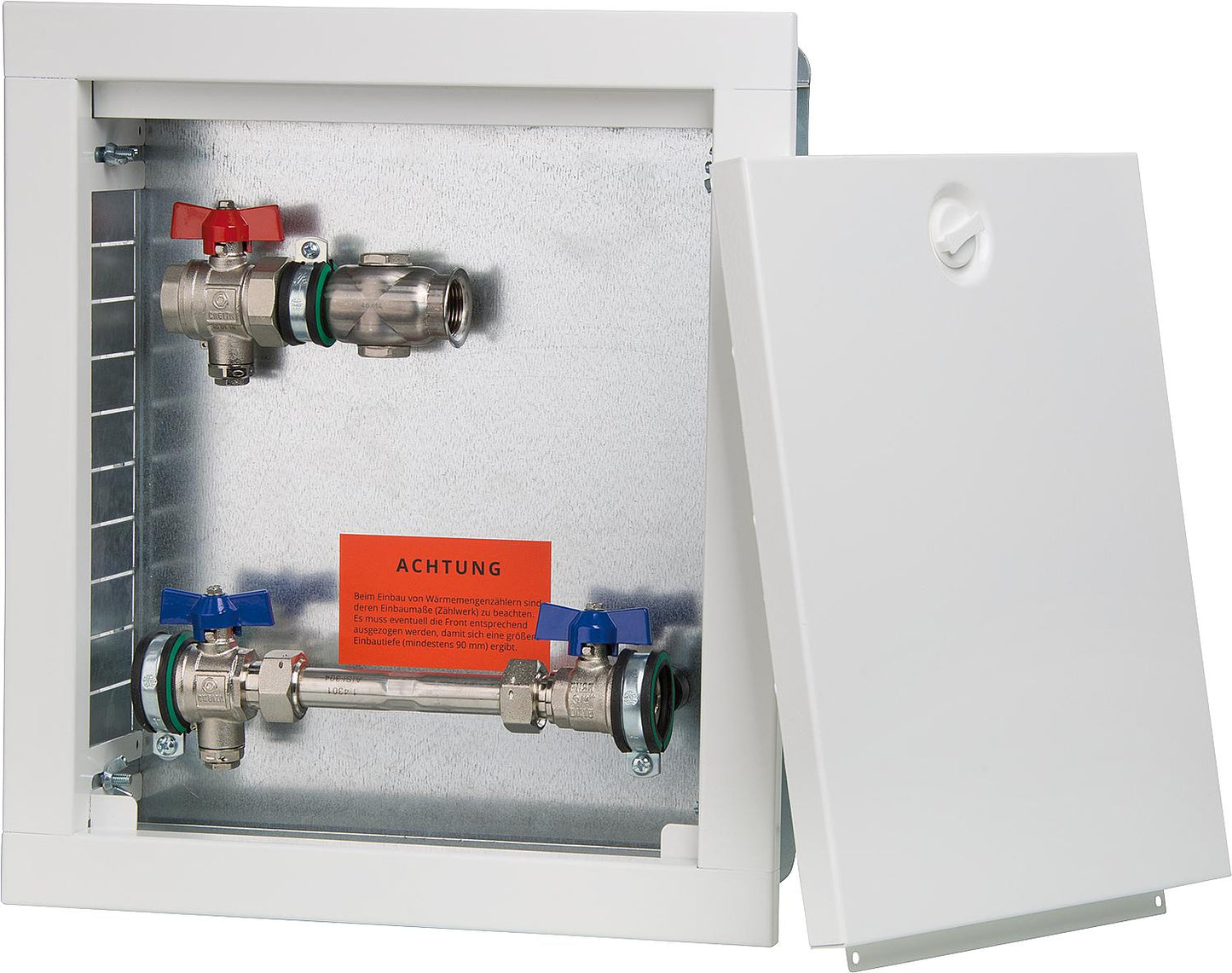

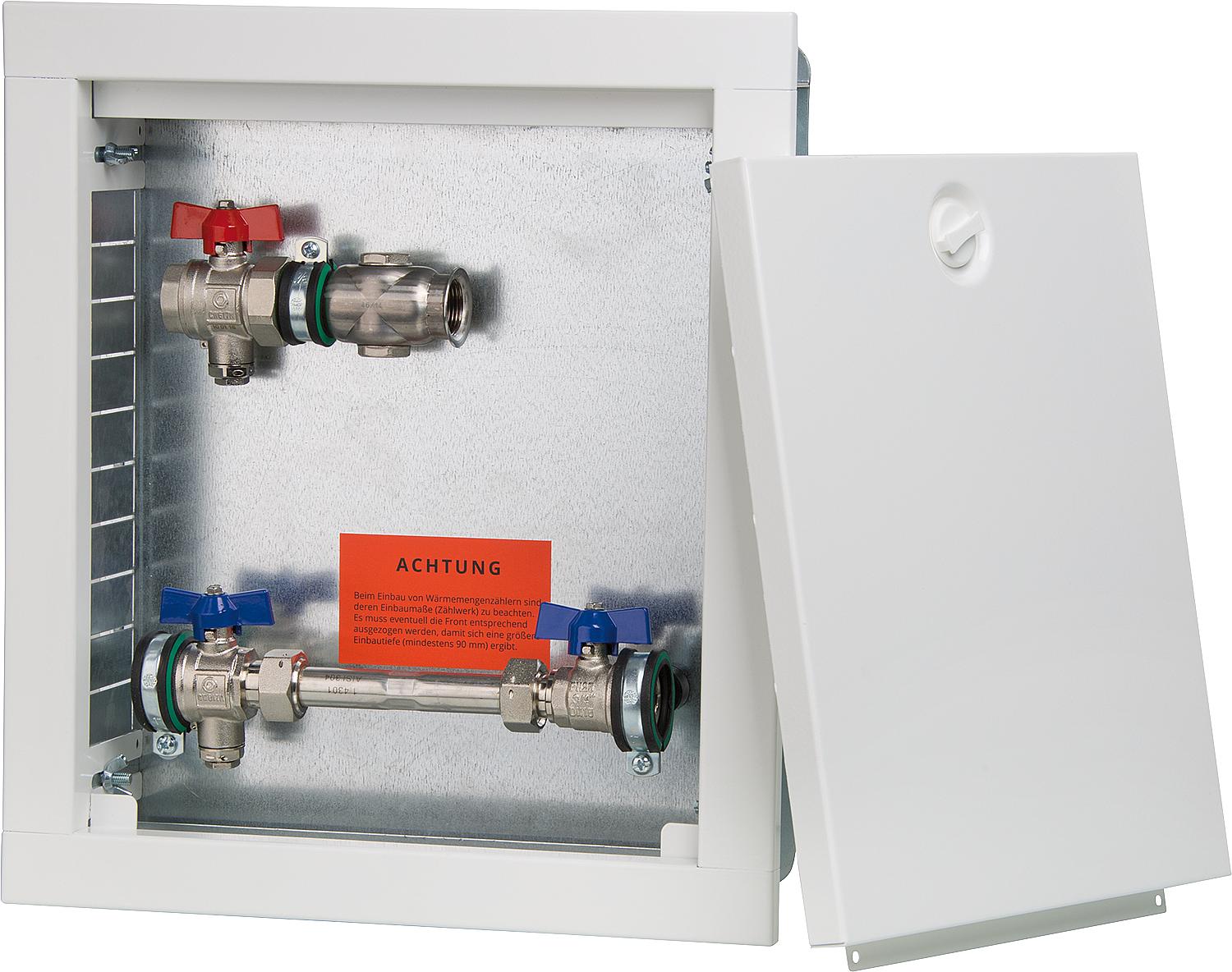

Strawa horizontal heat meter connection station type AS12h WMZ, white, wall-mounted cabinet, dimensions = 330 x 370 mm

• Completely pre-assembled in the UPS cabinet
• Installation depth: 90 mm 120 mm
• Galvanized, front panel white RAL 9010

Return:

1x DN 20 (3/4") flushing pipe 110 mm, 2x DN 20 (3/4") ball valves (for secondary vertical connection 1x DN 12 (3/8") air plug)

Lead time:

• 1x DN 20 (3/4") ball valve, 1x T-piece for

DN 12 (3/8") immersion sleeve (for secondary vertical connection, 1x DN 12 (3/8") air plug)

• Cabinet dimensions (W x H): 330 x 370 mm

Primary connection: DN 20 (3/4") female thread, horizontal

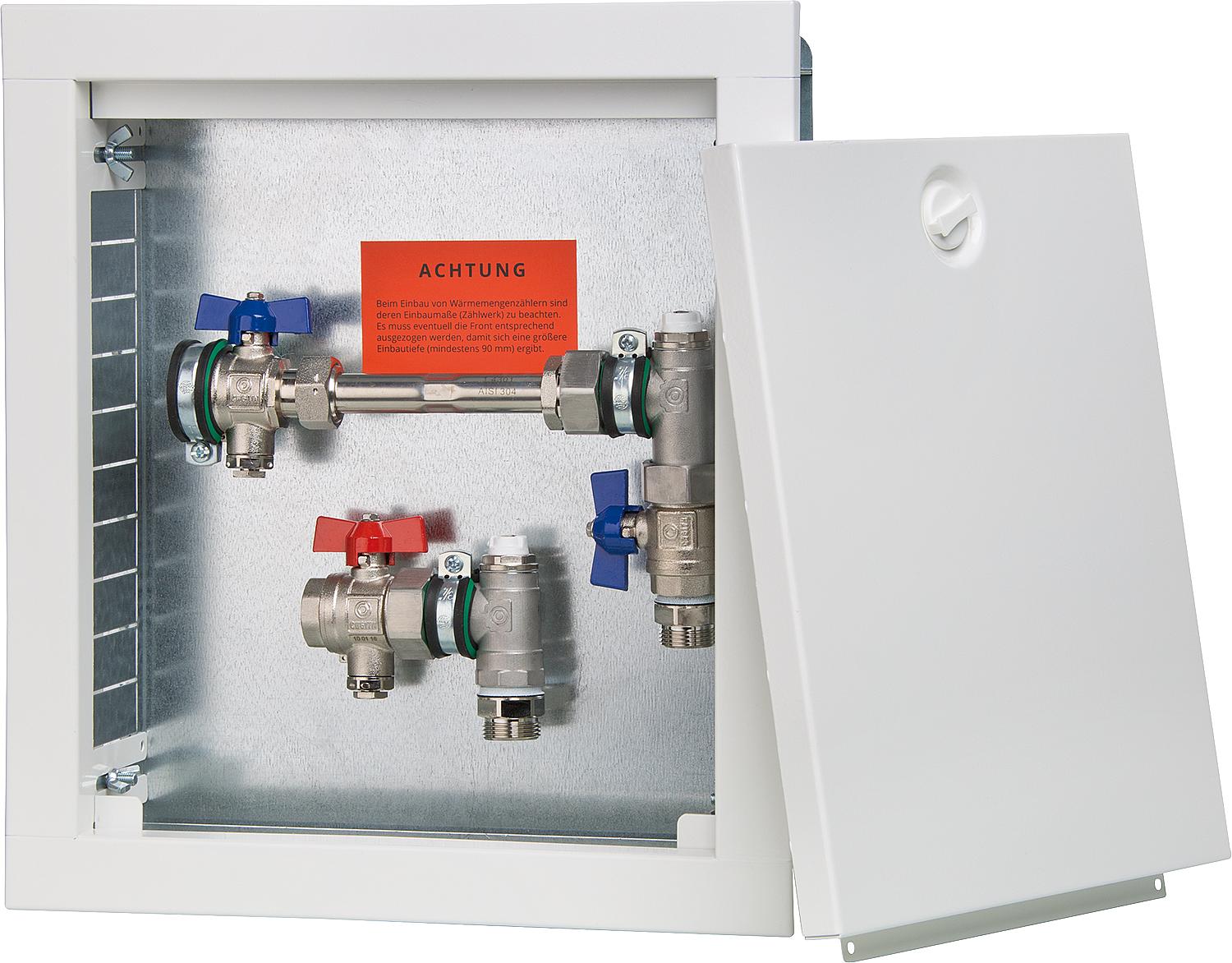

Secondary connection: DN 20 (3/4") female thread, horizontal or vertical
