Kroll 25S Standard hot air generator control

Kroll 25S Standard hot air generator control

Bewertungen

| Eine Rezension schreiben

CHF 3,533.30

CHF 3,533.30

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Kroll®

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

With integrated standard thermostat

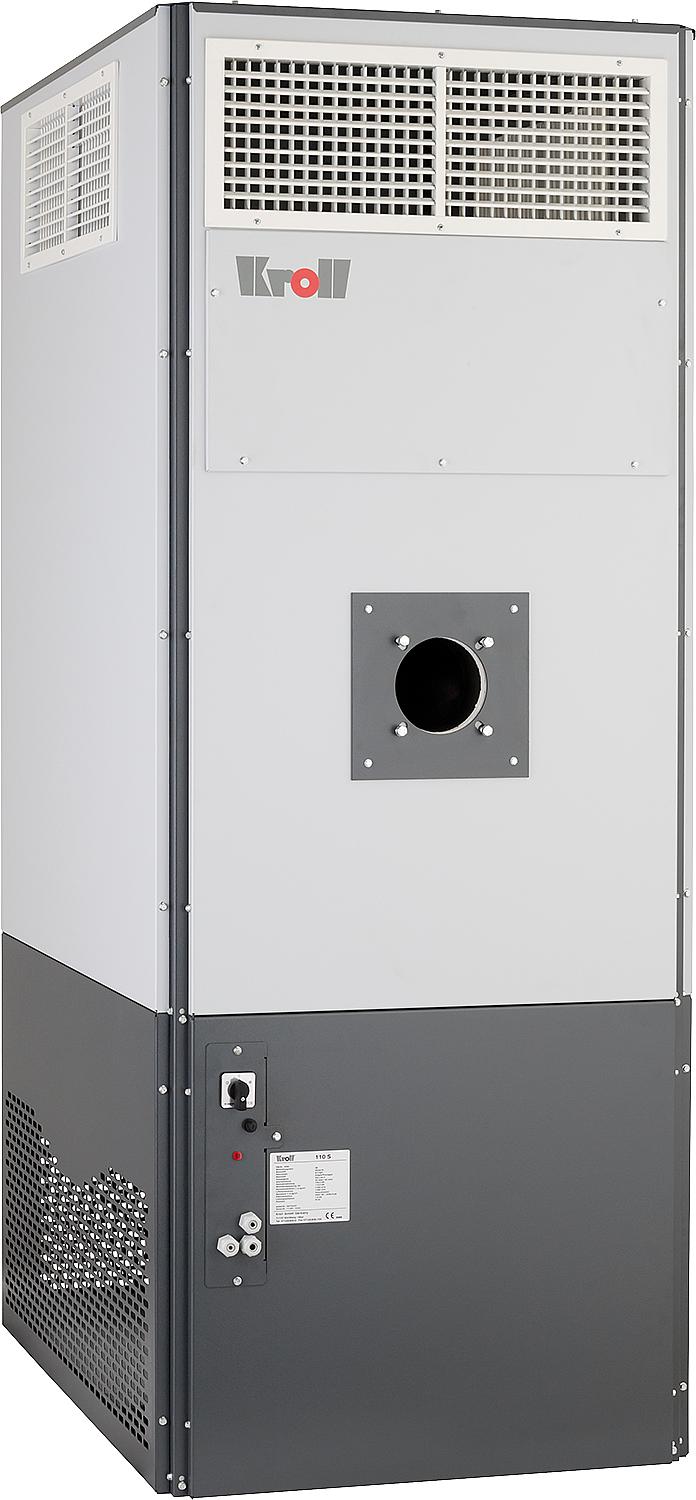

Stationary hot air generator with short preheating time
Ideal for warehouses, workshops and production halls
Control unit for single and two-stage burners
High efficiency through direct firing. 93% of the energy used is converted into heat.
Low investment costs due to minimal assembly effort
Complies with the ERP Guidelines 2021

External pressing

Type	S	25	40	55	70	95	110
	SC	25	40	55	70	95	110
Nominal heat load	[kW]	28	40	55	70	95	110
Nominal heat output	[kW]	25.5	37.5	50.5	64	88	100
Air volume flow	[m³/h]	1750	3000	3800	5300	6900	7900
[Pa]	50	70	80	70	80	80
Temperature increase	[K]	43	42	45	44	44	44
Oil consumption	[kg/h]	2.33	3.44	4.64	5.84	8.01	9.19
Gas consumption (natural gas)	[m³/h]	2.7	3.86	5.3	6.75	9.16	10.61
Gas consumption (liquefied petroleum gas)	[m³/h]	2.18	3.11	4.28	5.45	7.39	8.56
Electrical connection	[V/Hz]	230/50	230/50	230/50	230/50	230/50	230/50
Electrical power consumption	[kW]	0.22	0.58	1.5	1,1	1.5	1.5
ø exhaust pipe	[mm]	130	130	May 00	180	180	180
Exhaust pipe connection height	[mm]	910	1110	1195	1425	1545	1545
Dimensions (D x W x H)	[mm]	455 x 715 x 1275	505 x 865 x 1500	585 x 975 x 1645	665 x 1085 x 1835	765 x 1150 x 1895	765 x 1150 x 1895
Weight	[kg]	93	124	157	191	245	265
Shock pressure level	[dB (A)]	68	71	71	68	69	69

Brand	Kroll®
Manufacturer part number	027700-21
Unit price	CHF/piece
Type	25 S
EAN	4032053509465
